| TECHNICAL SPECIFICATIONS | ||||

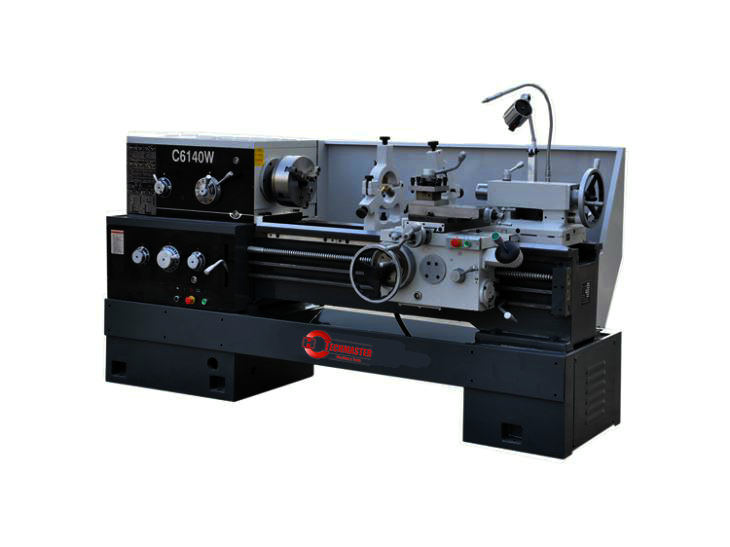

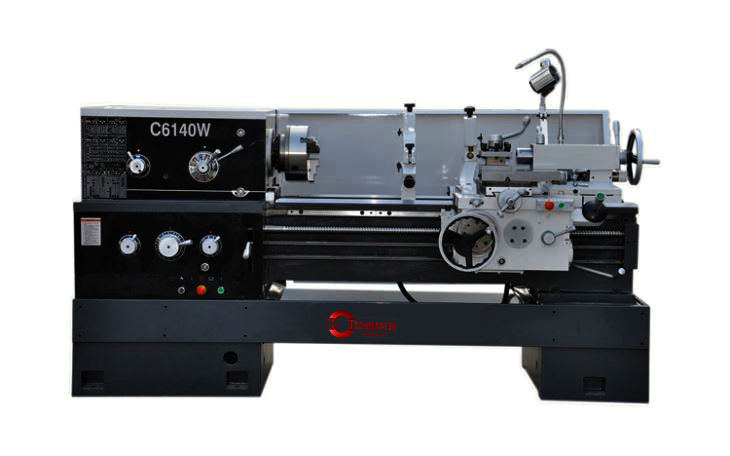

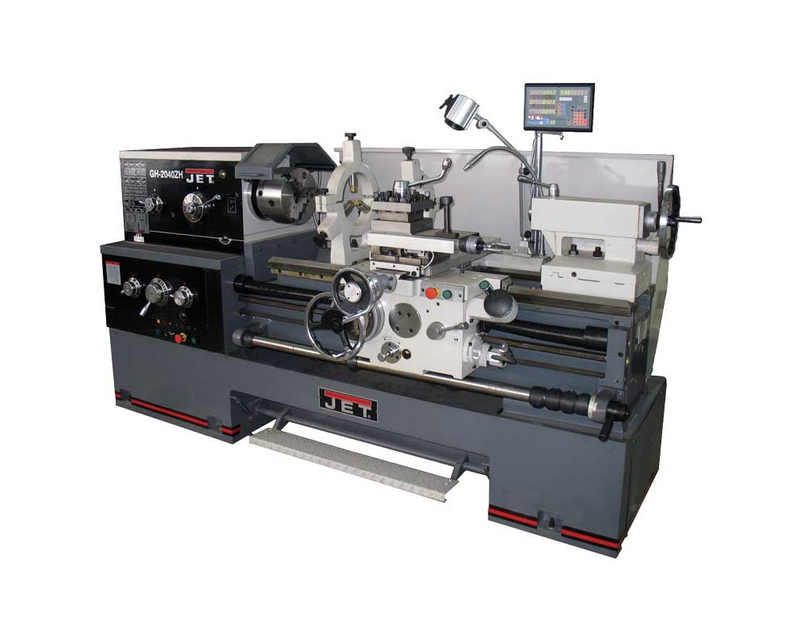

| MODELS | C6140W | |||
| CAPACITY | ||||
| Max.swing over bed | 420mm | |||
| Max.swing over carriage | 220mm | |||
| Max.length of workpiece | 1000/1500/2000mm | |||
| SPINDLE | ||||
| Spindle bore | 56mm | |||
| Taper bore of spindle | M.T.NO.6 | |||
| Steps of spindle speed | 24 | |||
| Range of spindle speed | 9~1600rpm | |||
| FEED | ||||
| Range of longitudinal feeds | 0.028~6.43 (0.0010″~0.2392″)mm | |||
| Range of cross feeds | 0.012~2.73(0.0004″~0.1016″)mm | |||
| RAPID TRAVEL | ||||
| Longitudinal | 4500mm/min | |||
| Cross | 1900mm/min | |||
| THREAD CUTTING RANGE/ NUMBER | ||||
| Metric pitch threads | 0.5~224mm/ 48 | |||
| Whit-worth threads | 72~1/8 TPI/ 48 | |||
| Module threads | 0.5~112M.P/ 42 | |||
| D.P.Threads | 56~1/4DP/ 45 | |||
| TAILSTOCK SLEEVE | ||||
| Taper bore | M.T.NO.5 | |||
| Max.travel | 150mm | |||
| External diameter | 75mm | |||
| OTHERS | ||||
| Size of tool shank | 25×25mm | |||
| Max travel of cross slide | 320mm | |||
| Max.travel of compound rest | 145mm | |||
| Main motor power | 7.5kw | |||
| Overall dimensions(L×W×H) | (2500/ 3000/ 3500)×1000×1285mm | |||
| Net weight | 2550/2750/2950kg | |||
| STANDARD DEVICES OR ACCESSORIES | ||||
| ITEMS | REMARK | |||
| 1. Main motor | China brand | |||
| 2. Spindle bearing | China brand | |||
| 3. Main electrical component | German brand | |||
| 4. Coolant pump | China brand | |||
| 5. Stead rest | China brand | |||
| 6. Follow rest | China brand | |||
| 7. 3-jaw chuck | 250mm | |||
| 8. 4-jaw chuck | 320mm | |||
| 9. Face plate | 400mm | |||
| 10. 4-way tool post | | |||
| 11. Working light | | |||
| 12. Full splash guard | | |||
| 13. Tailstock | | |||
| 14. Tool box including: | ||||
| 1) Flat screw driver | 6" | |||
| 2) Cross screw driver | 6" | |||
| 3) Open ended wrench | 10/12,14/17, 19/22,27/30 | |||
| 4) Hex socket wrench | 6,8,10,12 | |||
| 5) Taper dead center | Morse NO.5 | |||
| 6) Live center | Morse NO.5 | |||
| 7) Spindle sleeve | Morse NO.6/5 | |||
| 8) Chuck wrench | | |||
| 9) Tool post wrench | | |||
| 10) Round nut spanner | 100-110,115-130 | |||
| 11) Oil gun | | |||
| 12) Paint can | | |||
| 13) Operator's manual | | |||
| 14) Test record | | |||
| 15) Pads | | |||
| The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation. | ||||
