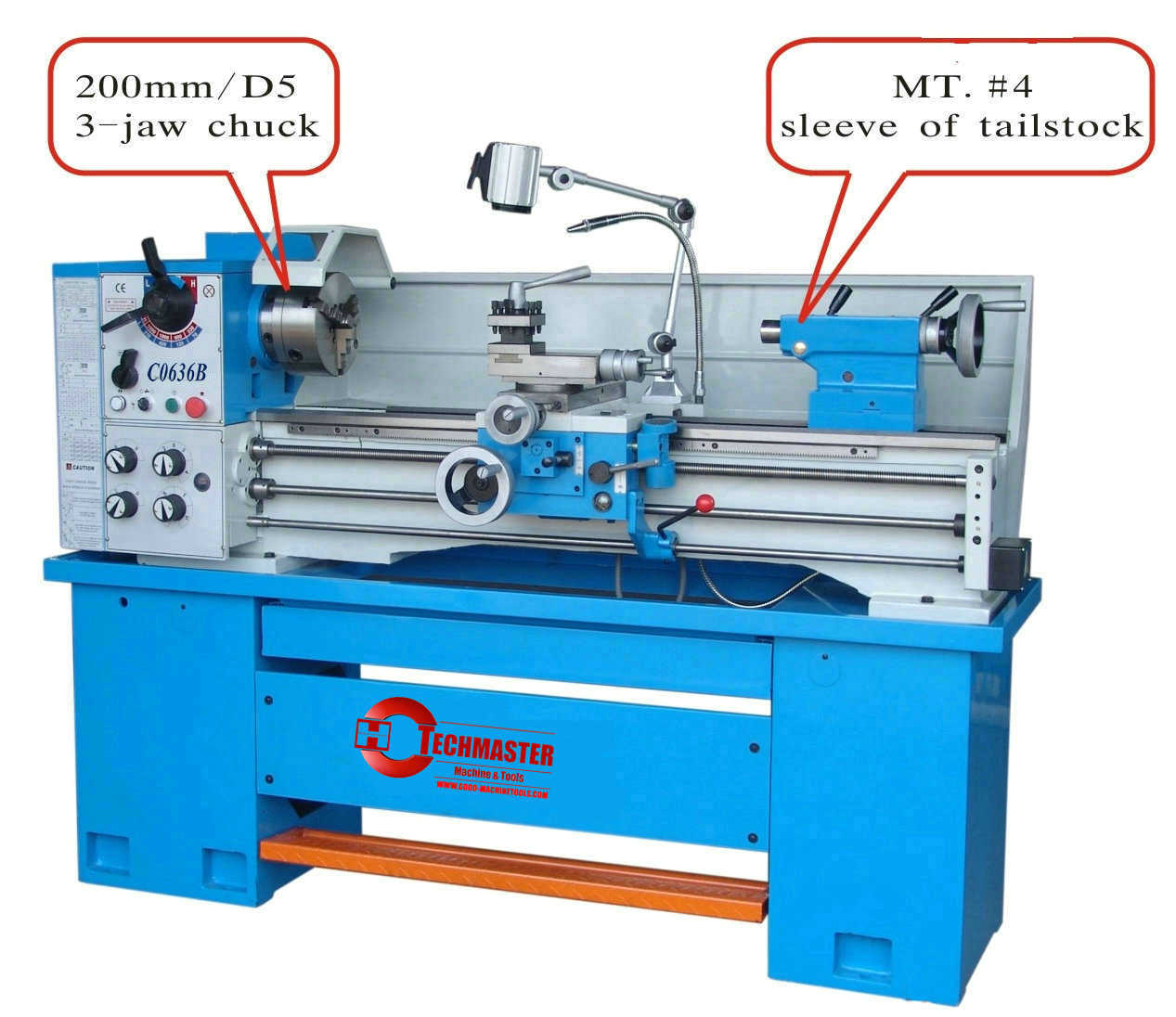

| MODEL | C0636B |
| Specifications | |
| Distance between centers | 750 / 1000 mm |
| Swing over bed | 360 mm |
| Swing over gap | 450 mm |
| Swing over cross slide | 198 mm |
| Bed width | 187 mm |
| Taper of spindle bore | MT6 |
| Spindle nose | D1- 5 |
| Spindle bore | 52 mm |
| Step of spindle speeds | 8 |
| Range of spindle speeds | 70~2000 rpm |
| Range of cross feeds | 0.022~0.298 mm/r |
| Range of longitudinal feeds | 0.078~1.044 mm/r |
| Range of inch threads | 2~/14 ~ 40 T.P.I |
| Range of metric threads | 0.45~10 mm |
| Top slide travel | 76 mm |
| Cross slide travel | 175 mm |
| Tailstock quill travel | 92 mm |
| Taper of tailstock quill | MT4 |
| Motor | 1.5 kw |
| Packing size | 1690/1940 x 760 x 1520 mm |
| Net weight | 580 kg |
