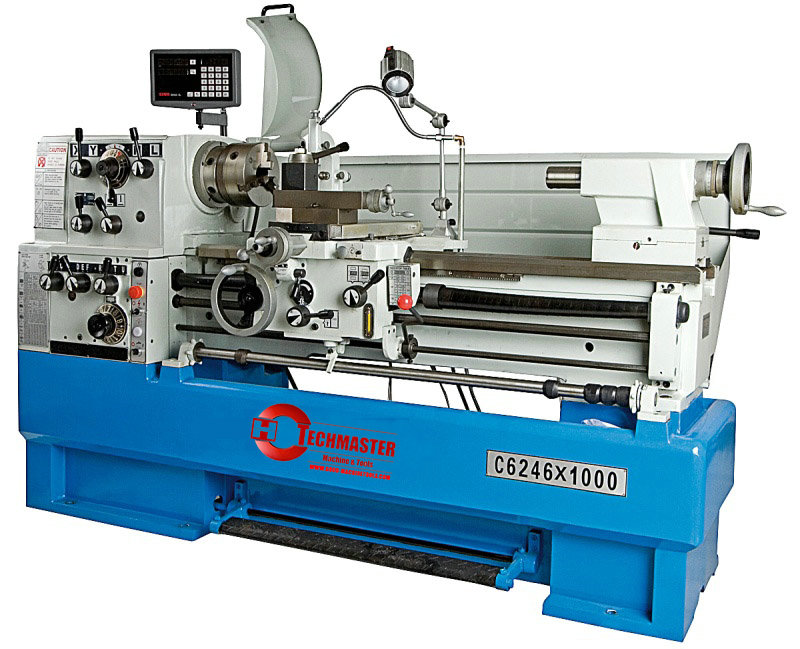

| Model | C6241/C6246 |
| Specifications | |
| Distance between centers | 1000/1500 mm |
| Swing over bed | Φ410/460 mm |
| Swing over gap | Φ640/690 mm |
| Swing over cross slide | Φ224/274 mm |
| Bed width | 300 mm |
| Spindle nose | D1-6 |
| Spindle bore | 58 mm |
| Spindle Taper | MT6 |
| Range of spindle speed | 25-2000 rpm |
| Range of cross feeds | 0.014-0.784 mm/r 42kinds |
| Range of longitudinal feeds | 0.0031-1.7 mm/r 42kinds |
| Range of inch threads | 2-112 T.P.I. 60kinds |
| Range of metric threads | 0.1-14 mm 41kinds |
| Range diametrcal pitches | 4-112 D.P. 50kinds |
| Range module pitches | 0.1-7 M.P. 34kinds |
| Top slide travel | 128 mm |
| Cross slide travel | 285 mm |
| Tailstock quill travel | 120 mm |
| Tailstock quill diameter | 60 mm |
| Taper of tailstock quill | MT4 |
| Motor | 4/5.5 kw |
| Packing size(LxWxH) | 2250/2800x1120x1700 mm |
| Net weight | 1670/2020 kg |
