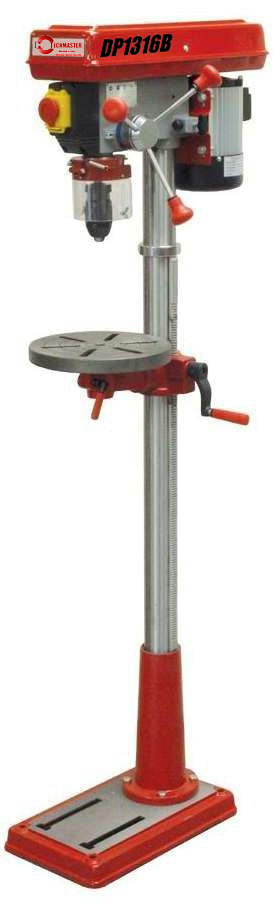

CHEAP DRILL PRESS

You are here: Home » Products » Drilling Machine » Drill Press » CHEAP DRILL PRESS

Product Description

Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Precisely Machined Working Table, can be inclined by ±45°and turnable by 360°
-Solid, Largely Dimensioned Base Plate with slots, Heavily Ribbed at the rear side
-Million fold Proven Quality
-Fully Equipped Machine, the user can Immediately start to work productively
-Smooth running and powerful quality aluminium electrical motor
-400 volt types Equipped with Cam Switch for Right-handed / Left-handed Rotation
-Certificate of Original (CE, FORM A, FORM E, FORM F )

Technical Data :

Product Name:	Cost-efficient 16mm Bench Type Drill Press with V-belt
Product Item:	DP1316F
Drilling Capacity (steel) :	Ø 16mm
Spindle stroke :	80mm
Spindle Speed :	180-2740 RPM
Number of steps :	12 steps
Table Size :	254X254MM
Drilling Table Turnable :	360°
Drilling Table Slewable :	±45°
Distance Spindle to Table :	435-770mm
Dimension of base	460 X 270mm
Over height	1020/1600mm
Motor power :	370w(1/2HP )
Column Diameter :	Ø 73 mm
Packing Size :	88 X 48 X 28 Cm
Gross Weight :	57KGS
Loading Quantity :	220PCS / 1 X 20" GP Container
Standard Accessory :	Drill Chuck Morse Taper
