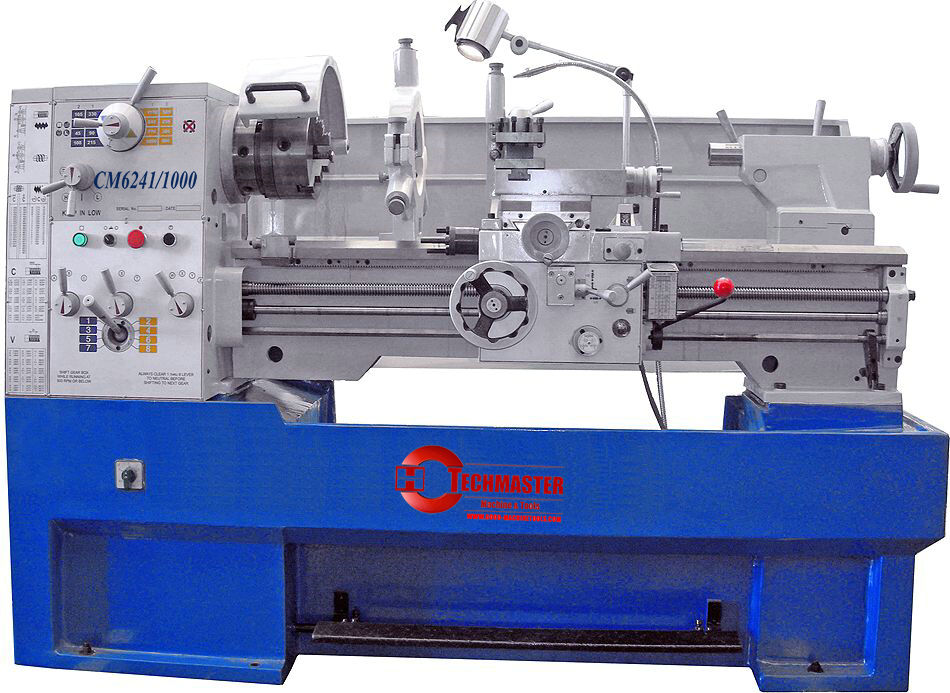

| MODEL | CM6241 |
| Specifications | |
| Distance between centers | 1000/1500 mm |
| Swing over bed | 410 mm |
| Swing over gap | 580 mm |
| Swing over cross slide | 255 mm |
| Bed width | 250 mm |
| Spindle nose | D1-6 |
| Spindle bore | Φ52 mm |
| Taper of spindle bore | MT6 |
| Step of spindle speeds | 16 |
| Range of spindle speeds | 45-1800 rpm |
| Range of cross feeds | 0.025-0.85 mm/r 17kinds |
| Range of longitudinal feeds | 0.05-1.7 mm/r 17kinds |
| Range of inch threads | 2-72 T.P.I 45kinds |
| Range of metric threads | 0.2-14 mm 39kinds |
| Range of diametrical pitches | 8-44 D.P. 21kinds |
| Range of module pitches | 0.3-3.5 M.P. 18kinds |
| Top slide travel | 102 mm |
| Cross slide travel | 210 mm |
| Tailstock quill travel | 120 mm |
| Tailstock quill diameter | 50 mm |
| Taper of tailstock quill | MT4 |
| Main motor | 2.8/3.3 kw |
| Overall dimensions | 2060/2560x900x1640 mm |
| Net weight | 1550/1800 kg |
