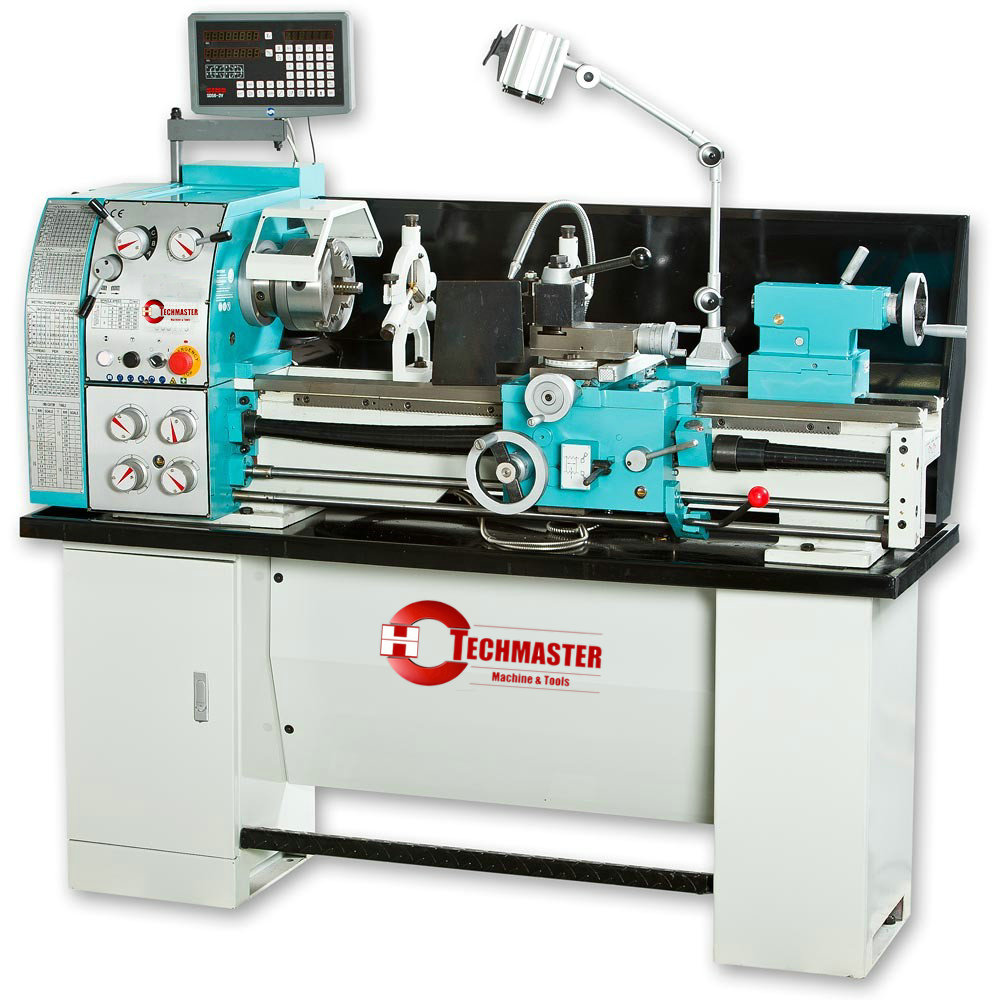

| Model | CQ6230A-2 |
| Max. swing over bed | 300mm |
| Max. swing over cross slide | 180mm |
| Max. swing over gap | 450mm |
| Distance between centers | 750/890mm |
| Width of bed | 180mm |
| Spindle bore | 38mm |
| Taper of spindle bore | M. T. 5 |
| Range of spindle speeds | 65-1810rpm |
| Taper of spindle speeds | M. T. 3 |
| Metric threads can be cut | 0.4-7mm |
| Inch threads can be cut | 4-60TPI |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev |
| Range of cross feeds | 0.011-0.276mm/rev |
| Max. travel of saddle | 560/760mm |
| Max. travel of crass slide | 130mm |
| Max. travel of top slide | 75mm |
| Max. travel of tailstock quill | 100mm |
| Motor power | 1.1kw/1.5kw |
| Packing size(L× W× H) | 1680× 750× 1420mm |
| Net weight | 510kg |
