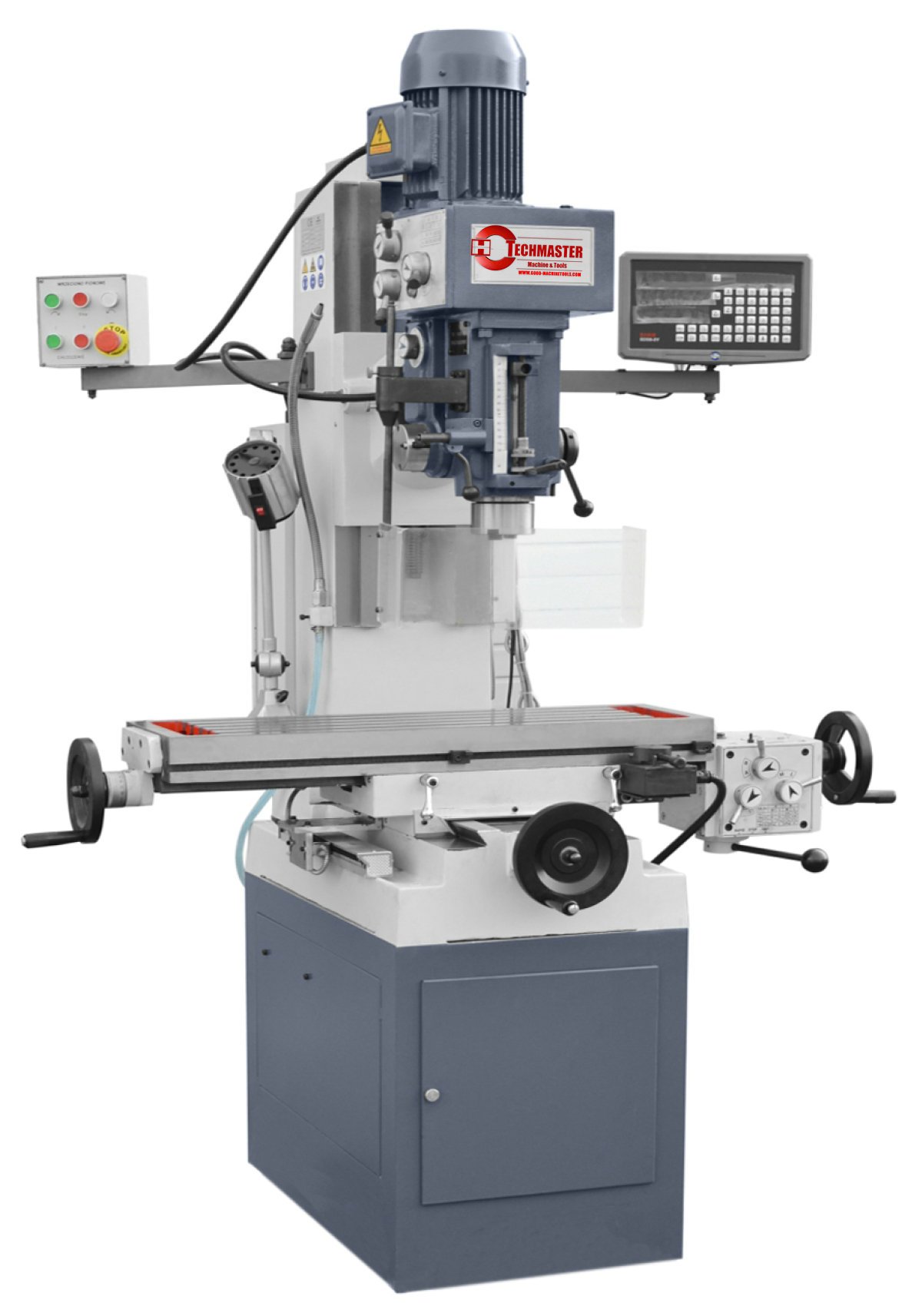

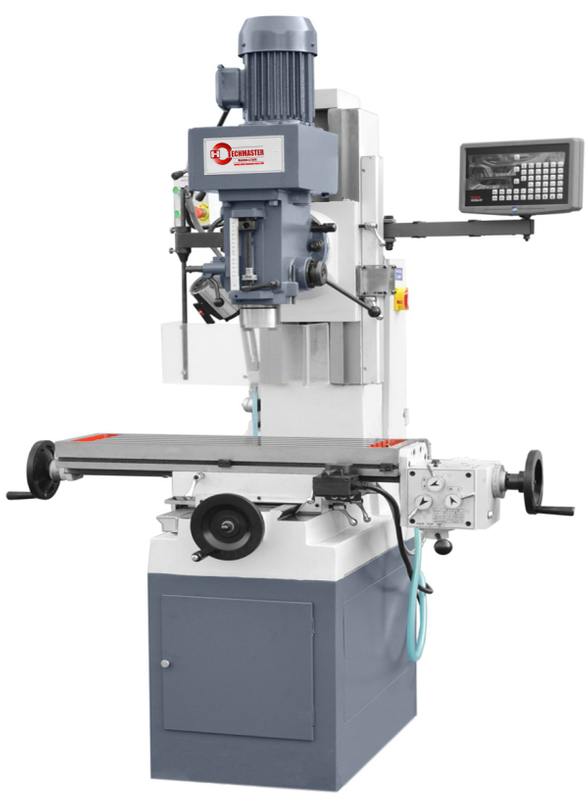

Drilling and milling machine ZX 50 ZB
| Quantity: | |
|---|---|
| Maximal drilling capacity | 40 (ISO) |
| Maximal milling width | 80 mm |
| Maximal milling capacity | 25 mm |
| Number of spindle speeds | 8 |
| Spindle speed range | 230 - 1825 rpm (50 Hz) 176 - 2190 rpm (60 Hz) |
| Spindle distance from column surface | 320 mm |
| Spindle distance from table | 30 - 350 mm |
| Spindle travel | 120 mm |
| Table travel | 360 x 210 mm |
| Table size | 800 x 240 mm |
| Motor | 1.5 kW |
| Dimensions | 1280 x 970 x 1650 mm |
