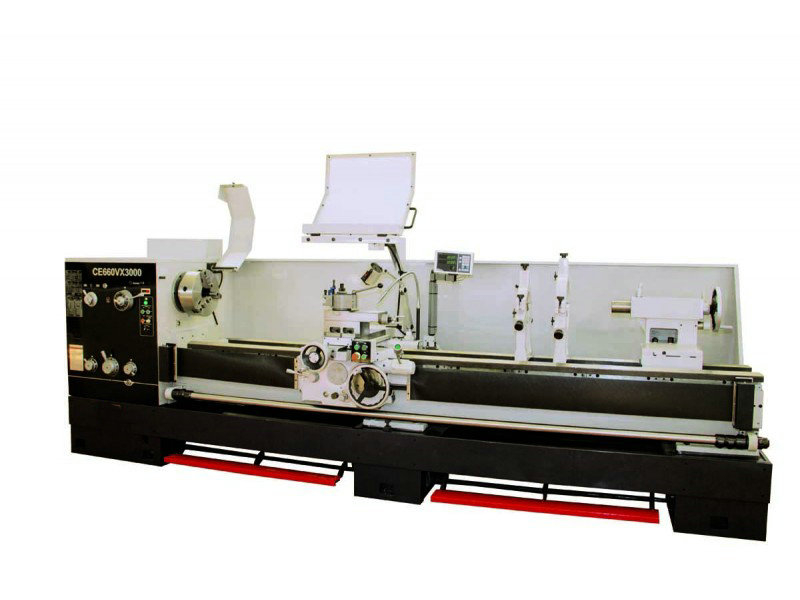

ELECTRONIC LATHE HELLER CE660X3000VCC
| Quantity: | |
|---|---|
| Distance between centers (mm) | 3000 |
| Modular pitch | 1-14 |
| Diametral pitch | 0,5-7 |
| Main spindle pitch (mm) | Ø - 40x 12 DP |
| Cross carriage travel (mm) | 320 |
| Carriage travel (mm) | 150 |
| Max. dimension of tool (mm) | 32x32 |
| Diameter tailstock quill (mm) | 75 |
| Tailstock spindle travel (mm) | 150 |
| Tailstock morse taper | MT 5 |
| Power main motor (Kw) | 7,5 |
| Power of motor pump (Kw) | 0,09 |
| Dimensions (mm) (length x width x height) | 4500x1130x1630 |
| Whitworth pitch per inch | 28-2 |
| Metric pitch | 0,5-7 |
| Swing over bed (mm) | 660 |
| Swing over ram (mm) | 820 |
| Swing over carriage (mm) | 420 |
| Bed width (mm) | 390 |
| Length gap | 330 |
| Main spindle hole (mm) | 105 |
| Spindle nose | CAMLOCK Nº8 |
| Main spindle morse taper | MT7 |
| Spindle speed range (rpm) | 25-1300 |
| Speed number | 4 variable |
| Longitudinal feed (mm/rev) | 0,063-2,52 |
| Cross feed (mm/rev) | 0,027-1,07 |
| Net weigth (Kg) | 3500 |
