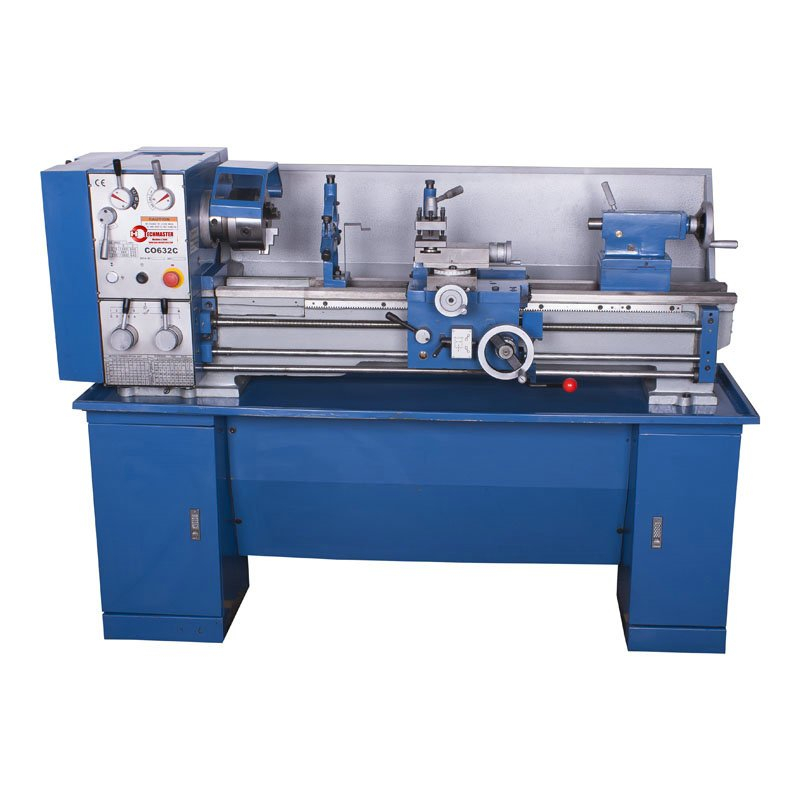

Geared Head Lathe with Stand CQ0632C
| Quantity: | |
|---|---|
| Max.swing over bed | Φ320 mm |
| Max.swing over cross slide | Φ178 mm |
| Max. swing over gap | Φ450 mm |
| Distance between centers | 1000 mm |
| Width of bed | 181 mm |
| Spindle bore | Φ38 mm |
| Taper of spindle bore | M.T.#5 |
| Range of spindle speeds | 65-1810 rpm |
| Taper of tail-stock | M.T.#3 |
| Metric threads can be cut | 0.4-7 mm |
| Inch threads can be cut | 4-60 T.P.I. |
| Range of longitudinal feeds | 0.0527-1.2912 mm/rev |
| Range of cross feeds | 0.011-0.276 mm/rev |
| Motor power | 1.5 KW.1 HP 220 V |
