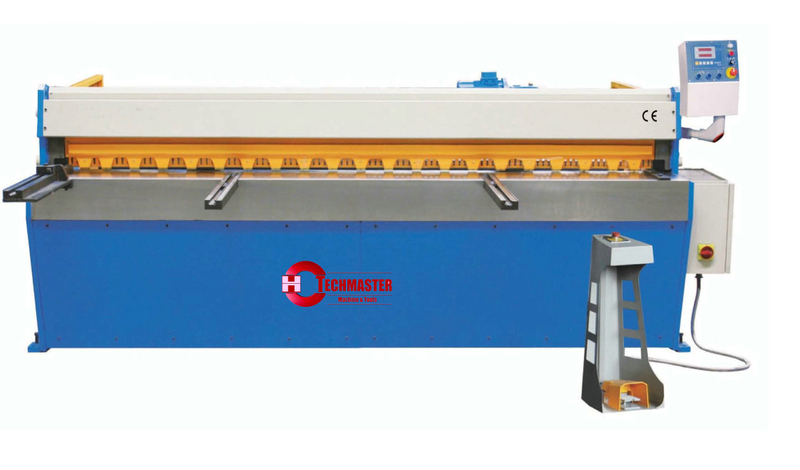

| Model No. | QH11D-3.5X1300 | QH11D-3.2X1500 | QH11D-3.2X2000 | QH11D-2.5X2500 | QH11D-3.2X2500 |
| Specifications | | ||||
| Shearing thickness | 3.5 mm | 3.2 mm | 3.2 mm | 2.5 mm | 3.2 mm |
| Shearing width (mm) | 1300 mm | 1500 mm | 2000 mm | 2500 mm | 2500 mm |
| Shearing angle (°) | 1°30′ | 1°30′ | 1°45′ | 1° | 1°18′ |
| Strokes per minute | 47 | 47 | 47 | 47 | 47 |
| Back gauge range (mm) | 0~650 mm | 0~650 mm | 0~650 mm | 0~650 mm | 0~650 mm |
| Motor (kw) | 5.5 kw | 5.5 kw | 7.5 kw | 7.5 kw | 7.5 kw |
| Net Weight (kg) | 1450 kg | 1650 kg | 1800 kg | 2080 kg | 2200 kg |
