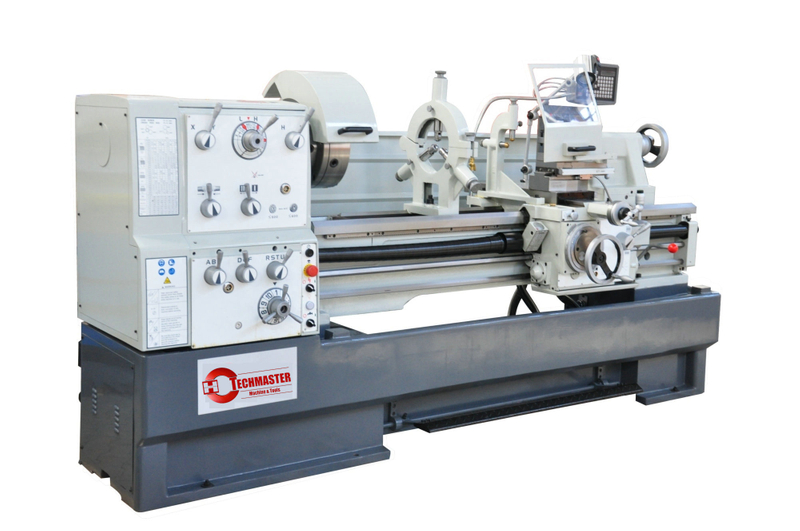

HEAVY DUTY LATHE C6241 /C6246 /C6251/C6256 (C6246E/80MM) ---C6256E/105MM)
| Quantity: | |
|---|---|
Lathe with Precision ground and supersonic frequency
Engine lathe with Hardened bed ways is designed in double wall structure,
| SPECIFICATION | MODELS | |||
| C6251×1500/2000/3000 | C6256×1500/2000/3000 | |||
| CAPACITY | ||||
| Swing over red | 510mm(20") | 560mm(22") | ||
| Swing in gap | 300mm(11-7/8") | 350mm(13-3/4") | ||
| Swing of gap | 738mm(29") | 788mm(31") | ||
| Length of gap | 200mm(8") | |||
| Distance between centers | 1500mm(60") | 2000mm(78") | 1500mm(60") | 2000mm(78") |
| Center height | 1135mm | 1160mm | ||
| Width of bed 350mm(13-3/4") | ||||
| HEADSTOCK | ||||
| Spindle nose | D1-8 | |||
| Spindle bore | 80mm(3-1/8") | |||
| Taper of spindle bore | No.7Morse | |||
| Range of spindle speed | 12changes25-1600r/min | |||
| FEEDS AND THREADS | ||||
| Max.travel of compound rest | 130mm(5-1/8") | |||
| Max.travel of cross slide | 326mm(12-15/16") | |||
| Leadscrew pitch | 6mmOr4T.P.L | |||
| Max.section of tool | 25×25mm(1×1") | |||
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev) | |||
| Cross feeds range | 35kinds0.020-0.573mm(0.00048"-0.01354") | |||
| Metric threads range | 47kinds0.2-14mm | |||
| Inch threads range | 60kinds2-112T.P.L | |||
| Diametrical pitches range | 50kinds4-112D.P. | |||
| Module pitches range | 39kinds0.1-7M.P. | |||
| TALLSTOCK | ||||
| Dia of tailstock sieeve | 75mm(3") | |||
| Travel of tailstock sleeve | 180mm(7") | |||
| Morse taper of tailstock sleeve | No.5Morse | |||
| Cross adjustment | ±13mm(±1/2") | |||
| MOTOR | ||||
| Power of main motor | 7.5kw(10HP)3PH | |||
| Power of coolant pump | 0.1kw(1/8HP),3PH | |||
| DIMENSION AND WEIGHT | ||||
| Overall dimension(L×W×H)cm | 290×112×143 | 340×112×143 | 290×112×146 | 340×112×143 |
| Packing size(L×W×H)cm | 296×113×182 | 346×113×182 | 296×113×182 | 346×113×182 |
| Net weight/Gross weight | 2335/2700 | 2685/3070 | 2370/2740 | 2720/3110 |
| STANDARD ACCESSORIES | ||||
| 1 Three Jaw Chuck and Adapter | 6 Oil Gun | |||
| 2 Four Jaw Chuck and Adapter | 7 Thread Chasing Dial | |||
| 3 Face Plates | 8 Operation Manual | |||
| 4 Steady Rest | 9 One set of Wrenches | |||
| 5 Follow Rest | 10 MT 7/5 Sleeve and MT 5 Center | |||
| SPECIAL ACCESSORIES | ||||
| 1 Driving Plate 2 Quick Change Tool Post 3 Taper Tuming Attachment | ||||
