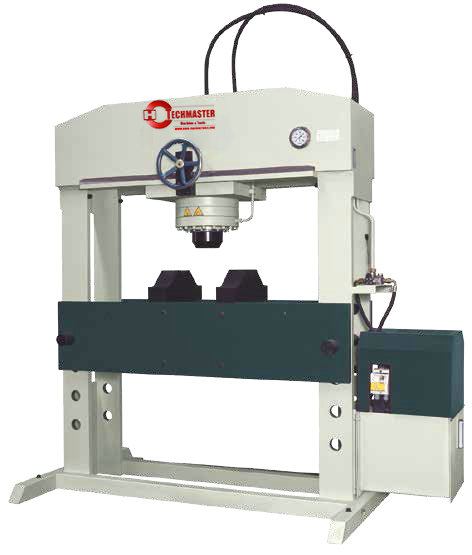

technical data | bending force: | 100 to |
| motor power: | 5,5 kW |
| stroke: | 300 mm |
| distance between columns: | 1.570 mm |
| piston Ø: | 220 x 160 mm |
| advance speed: | 8 mm/s |
| working speed: | 5 mm/s |
| return speed: | 10 mm/s |
| length: | 2.560 mm |
| width: | 1.000 mm |
| heigth: | 2.480 mm |
| weight: | 1.755 kg |
equipment
horizontal movable cylinder by handwheel
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
manual right- left movement of piston
