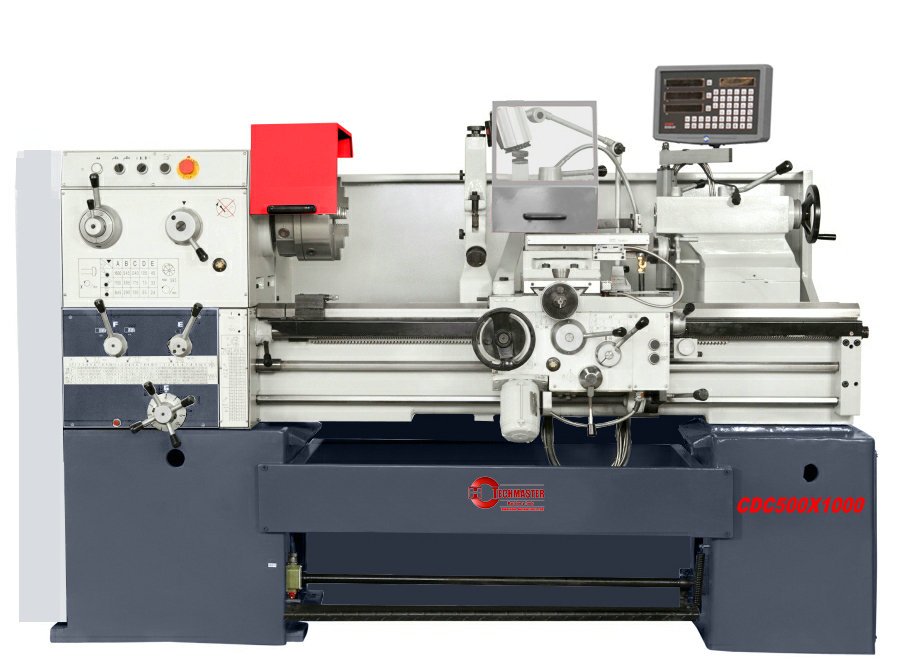

Metal turning machine CDC500 X 1000
| Quantity: | |
|---|---|
Technical data | |
| SWING OVER BED | 500 mm with LCD readout |
| SWING OVER CROSS SLIDE | 300 mm |
| SWING OVER GAP | 580 mm |
| TURNING LENGTH OVER GAP | 315 mm |
| CENTRE DISTANCE | 1000 mm |
| SPINDLE BORE | 80 mm |

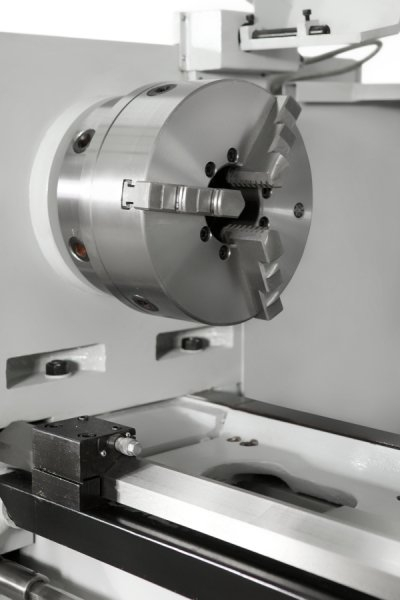

| LATHE CHUCK DIAMETER | 250 mm |
| SPINDLE TAPER | D1-8 CAMLOCK |
| SPINDLE MOUNT | fi 85 mm |
| SPINDLE SPEEDS RANGE | 24 - 1600 rpm |
| FEED LONGITUDINAL | 0,072 - 4,038 mm/rotation |
| FEED CROSS | 0,036 - 2,019 mm/rotation |
| RAPID FEED | OPTION |
| METRIC THREAD | 0,5 - 28 mm |
| INCH THREAD | 1 - 56 TPI |
| MODULAR THREAD | 0,5 - 3,5 mm |
| D.P. THREAD | 8 - 56 DP |
| BED | GRINDED AND HARDENED |
| BED WIDTH | 330 mm |
| MAXIMAL TOOL DIMENSIONS | 25 x 25 mm |
| TAILSTOCK SPINDLE DIAMETER | 65 mm |
| TAILSTOCK SPINDLE TRAVEL | 120 mm |
| TAILSTOCK SPINDLE TAPER | MT 5 |
| DIGITAL READOUT | for 3 axes |
| MAIN MOTOR POWER | 5,5 kW |
| OVERALL DIMENSIONS | 2420 mm x 1150 mm x 1550 mm |
| NET WEIGHT | 2280 kg |
