Product Description

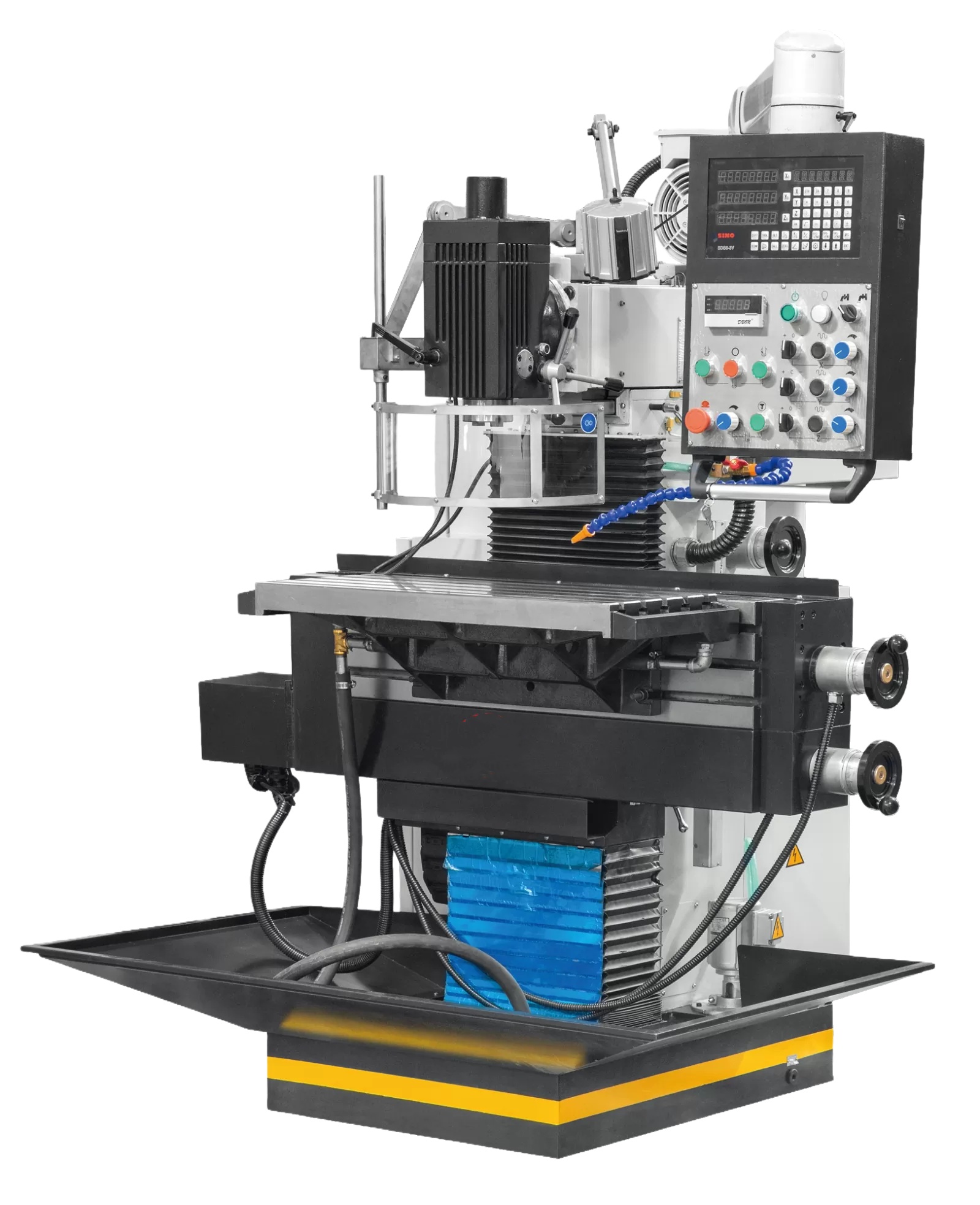

X 8132/X8140/X8145 TOOL MILLING MACHINE WITH SERVO

Feature:
· This versatile tool-milling machine suitable for tool and mold making
· Three servomotors for feeds and rapid feed in x/y/z-axis
· Easy to operate switches on swivelling controlling panel
· Deluxe and quality aluminum arm frame for controlling panel
· Precision hardened work table and guideways
· Accurate polished hardened gears for quiet operation
· Precise preloaded ball screws on all axes
· Large vertical console and work table
· Main Schneider electrical components provide quality
· Automatic central lubrication for the guideways

· Equip with safety spindle guard, LED work lamp, coolant system

Model No.	X8132 Servo	X8140 Servo	X8145 Servo
Table size	750×320mm	800x400mm	850x450mm
T-slot	5-18mm-63mm	6-18mm-63mm	6-18mm-63mm
Spindle taper (V)	ISO40	ISO40	ISO40
Spindle taper (H)	ISO40	ISO40	ISO40
Spindle speeds (V)	40-260/260-2000rpm	40-260/260-2000rpm	40-260/260-2000rpm
Spindle speeds (H)	40-260/260-2000rpm	40-260/260-2000rpm	40-260/260-2000rpm
Spindle travel	60mm	60mm	60mm
Cross travel	315mm	400mm	450mm
Longitudinal travel	405mm	405mm	600mm
Vertical travel	405mm	400mm	450mm
Distance spindle to table (V)	45-445mm	45-445mm	70-520mm
Distance spindle to table (H)	45-445mm	45-445mm	70-520mm
Distance spindle to column	120-530mm	170-570mm	165-620mm
Head tilting range	± 90°	± 90°	± 90°
Max. workpiece weight	250kg	300kg	300kg
Feeding rate (X/Y)	10-1000mm/min	10-1000mm/min	10-1000mm/min
Vertical feeding rate (Z)	10-1000mm/min	10-1000mm/min	10-1000mm/min
Rapid feed (X/Y/Z)	1200/1200/1200mm/min	1200/1200/1200mm/min	1200/1200/1200mm/min
Servo motor	1.5/1.5/1.5kw	1.5/1.5/1.5kw	1.5/1.5/2.3kw
Coolant pump	90w	90w	90w
Main motor (V/H)	3.7kw	3.7kw	5.5kw
Net weight	1450kg	1550kg	1750kg
Gross weight	1550kg	1650kg	1850kg
Diamesion of machine	1560x1780x1930mm	1560x1780x1930mm	1600x1800x2000mm
Packing size	1700x2200x2250mm	1750x2200x2250mm	1900x2200x2250mm
Standard accessries	Optional accessories
LED work lamp	3-axis digital readout
Coolant system	6" milling vise
Automatic central lubrication
Aluminum arm controlling panel
Spindle safety cover
ER collet chucks/8pcs
Arbors
Tools
