Specifications:

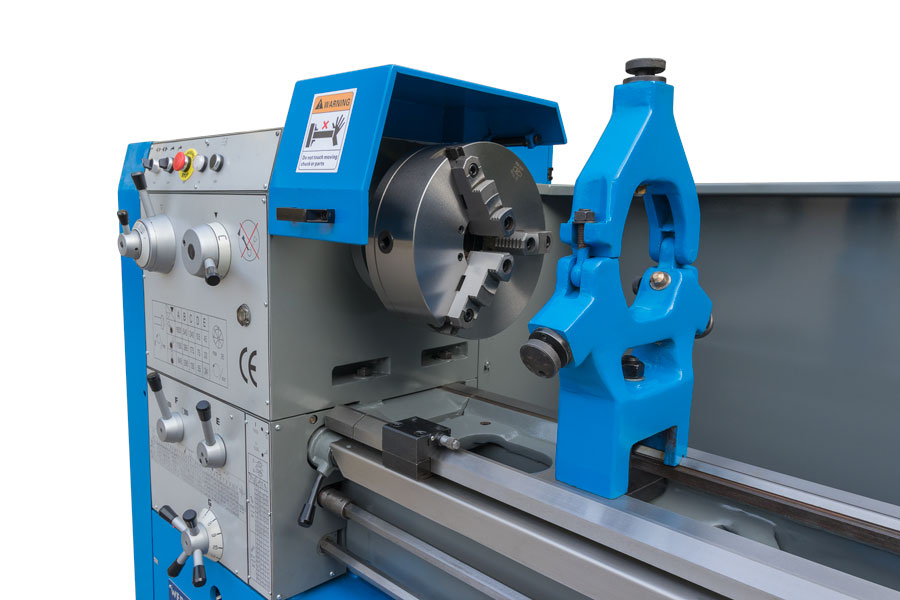

3-jaw chuck 315mm, 4-jaw face plate 320 mm,
clamping disc 420mm, driving plate 250 mm,
steady rest, follower rest, magnetic breake, automatically
switchable and also with foot pedal
coolant system, halogan lamp, spray wall,
chip drawer forwards extensible, life centre MT5
removable bed, hardened and cut bed and gear wheels.
without oil filling
incl. Multifix Set B and 3-axial digital display
Technical data:
Center height 300 mm
Distance between centers 2000 mm
max. turning diameter 600 mm
Spindle cone Camlock 8
Hollow spindle 80 mm

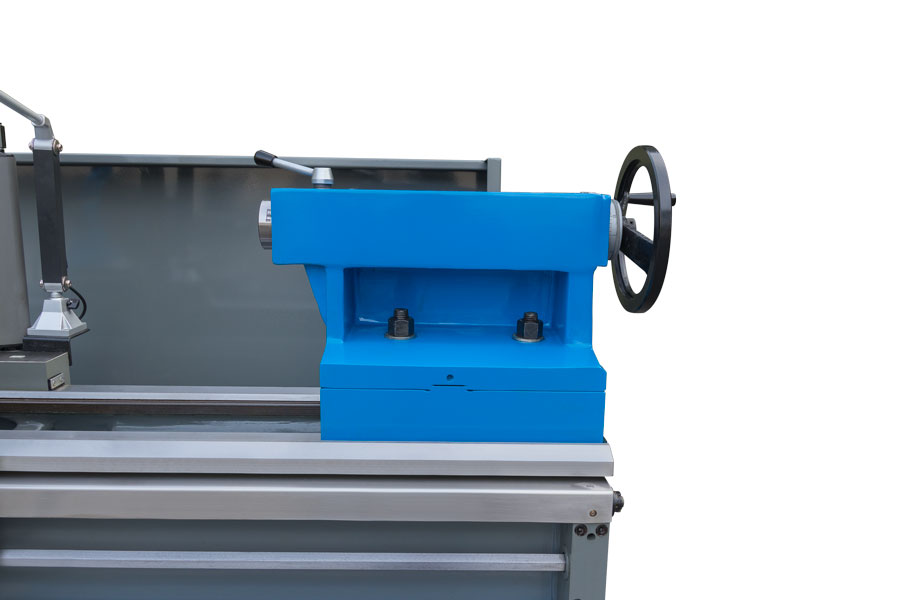

Tailstock cone MT5
Spindle speed 24 to 1600 RPM
Speeds 15
Main motor power 7,5 kW
max. diameter over cross slide 350 mm
max. turning diameter i.t. bridge 680 mm
Longitudinal feed 0,07 - 4 mm/rotation
Crossfeed 0,02 - 1,35mm/rotation
Metric threads 0,5 - 28 mm gradiant
Inch thread 56 - 1 gears/inch
Modul thread Modul 0,5 - 3,5
Thread diametral pitch 56 - 8
Qilldiameter 65/120 mm
Weight 2200 kg
