ENGINE LATHE CM6241V X1000 VARIO
| Quantity: | |
|---|---|
| SWING OWER BED | 410 mm |
| SWING OWER CROSS SLIDE | 255 mm |
| SWING OWER GAP | 580 mm |
| TURNING LENGHT OWER GAP | 190 mm |
| CENTRE DISTANCE | 1000 mm |
| BED | inductively hardened |
| BED WIDTH | 250 mm |
| SPINDLE BORE | 52 mm |
| SPINDLE TAPER | D1-6 |
| SPINDLE MOUNT | No 6 Morse'a |
| OBROTY ZMIENNE WRZECIONA | 30-550 rpm 100-3000 rpm |
| MAXIMAL TOOL DIMENSION | 20 mm x 20 mm |
| FEED LONGITUDIAL | (17) 0,05-1,7mm/rotation |
| FEED CROSS | (17) 0,025-0,85 mm/rotation |
| METRIC THREAD | (42) 0,2-14 mm |
| INCH THREAD | (45)2-72 T.P.I |
| MODULAR THREAD | 0,3-3,5M.P (18) |
| D.P. THREAD | 8-44D.P. (21) |

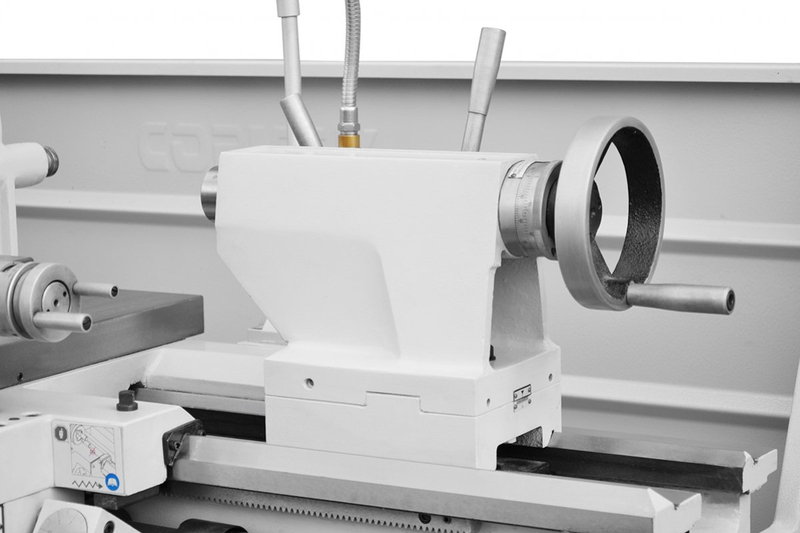

| TAILSTOCK SPINDLE DIAMETRE | 50 mm |
| TAILSTOCK SPINDLE TRAIL | 120 mm |
| TAILSTOCK SPINDLE TAPER | MK 4 |
| DIGITAL READOUT (OPTIONAL) | full-3 axes |
| MAIN MOTOR POWER | 5,5 kW |
| FLOOD COOLANT PUMP POWER | 90 W |
| OVERALL DIMENSIONS | 2030 mm x 850 mm x 1450 mm |
| WEIGHT NET | 1550 kg |
