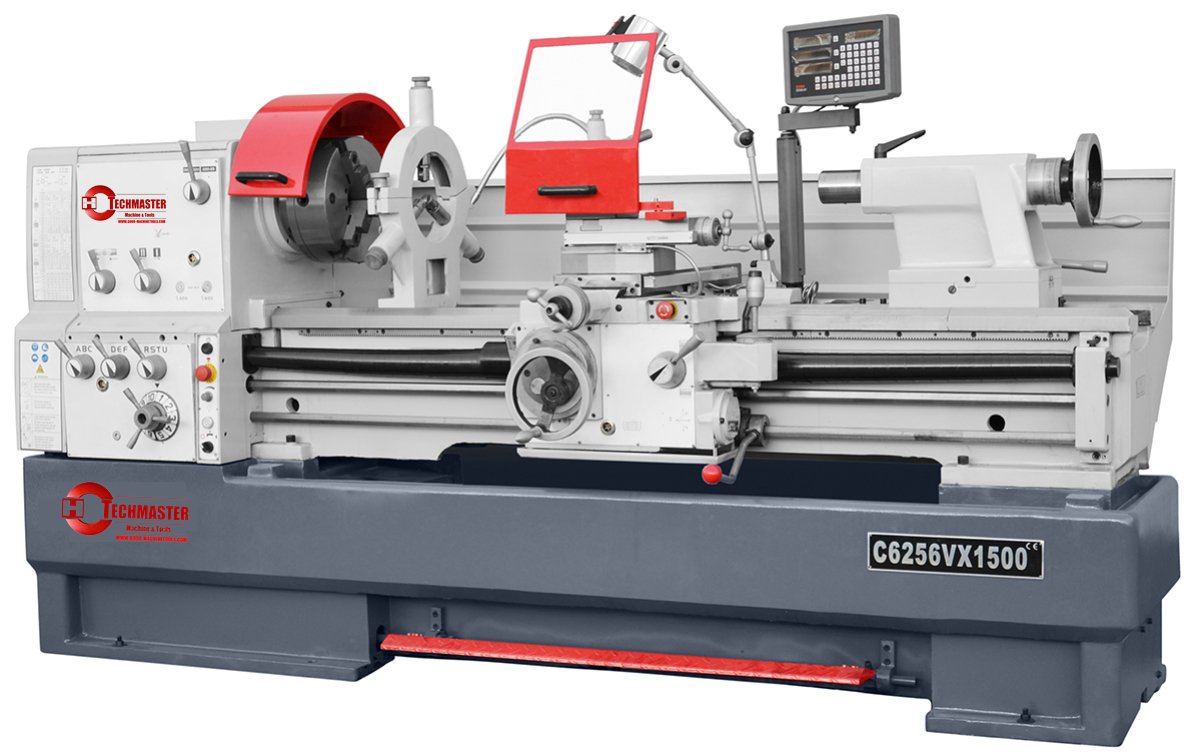

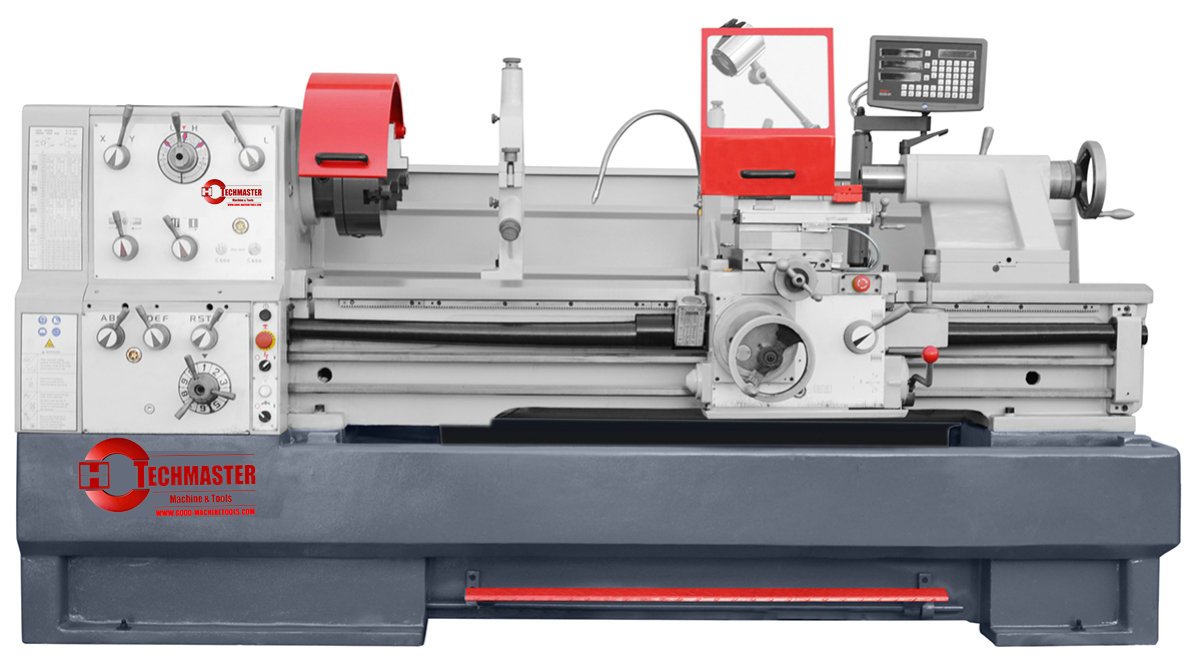

Universal lathe 460 X 1500 VARIO

CENTRE DISTANCE

1500 mm

CENTRE HEIGHT

230 mm

TURNING DIAMETER OVER BED

460 mm

TURNING DIAMETER IN BRIDGE PIECE GAP

690 mm

TURNING DIAMETER OVER SLIDE

274 mm

BED WIDITH

300 mm

SPINDLE BORE

80 mm

SPINDLE TAPER

DIN 55029, D 1-6

SPINDLE SPEEDS RANGE

25 - 250 / 250-1700 rpm

LONGITUDINAL FEED RANGE

(42) 0,031 - 1,7 mm/rotation

CROSS-FEED RANGE

(42) 0,014 - 0,784 mm/rotation

METRIC THREAD

(41) 0,1 - 14 mm

INCH THREAD

(60) 2 - 112 Gg/1“

TAILSTOCK SPINDLE DIAMETER

60 mm

TAILSTOCK SPINDLE TRAVEL

130 mm

TAILSTOCK SPINDLE TAPER

MK 4

MOTOR POWER

5,5 kW

DIMENSIONS

2750 x 1080 x 1370 mm

WEIGHT

2020 kg
