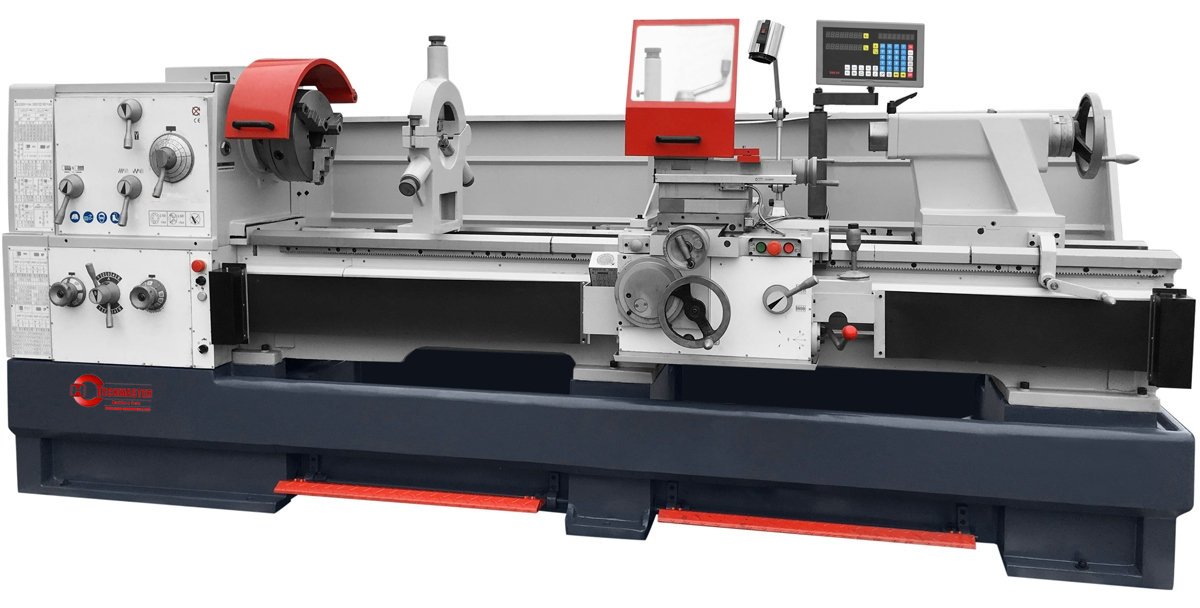

Machine description

The lathe is used in various applications in small and medium-series production, in tooling, machine building, maintenance and many other applications
Solid and strong cast iron machine construction

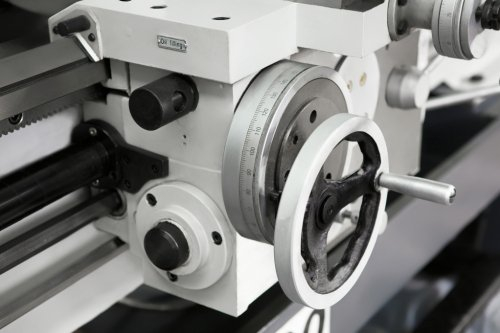

The device is equipped with a fast longitudinal and transversal gear
Solid cast iron bed construction, induction hardened and ground
The large 105 mm spindle bore provides the possibility of machining larger workpieces

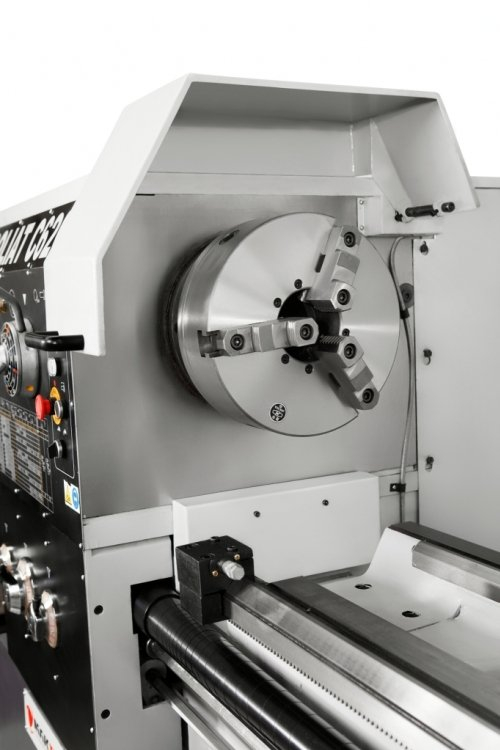

Precision-mounted main spindle
Hardened and ground gears used in the machine

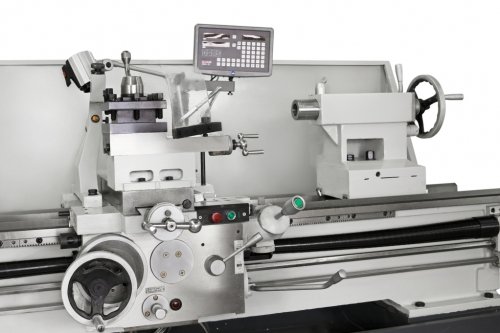

Lathe equipped with rulers and digital readout of 3 axes
VARIO model - with smooth regulation of the spindle speed

Technical parameters
DISTANCE BETWEEN CENTERS	2000 mm
LENGHT OF CENTERS	330 mm
ROTATION DIAMETER OVER BED (MAX.)	660 mm
TURNING DIAMETER WITHOUT GAP BRIDGE	900 mm
ŚREDNICA OBROTU NAD SANIAMI POPRZECZNYMI	460 mm
BAD WIDTH	400 mm
SPINDLE BORE	105 mm
SPINDLE MOUNT/TAPER	DIN 55029, D1-8
RANGE OF SPINDLE SPEED	16-70 / 50-215 / 100-475 / 350-1500 rpm
FEED X-AXIS	(25) 0,044 - 1,480 mm/R
FEED Y-AXIS	(25) 0,022 - 0,740 mm/R
METRIC THREAD	(54) 0,45 - 120 mm
INCH THREAD	(54) 7/16 - 80 Gg /1"
TAILSTOCK SPINDLE DIAMETR	90 mm
TAILSTOCK SPINDLE TRAVEL	235 mm
TAILSTOCK SPINDLE TAPER	MK 5
MOTOR RATING	7,5 kW (10 KM)
DIMENSIONS	3640 x 1210 x 1525 mm
WEIGHT	3179 kg
