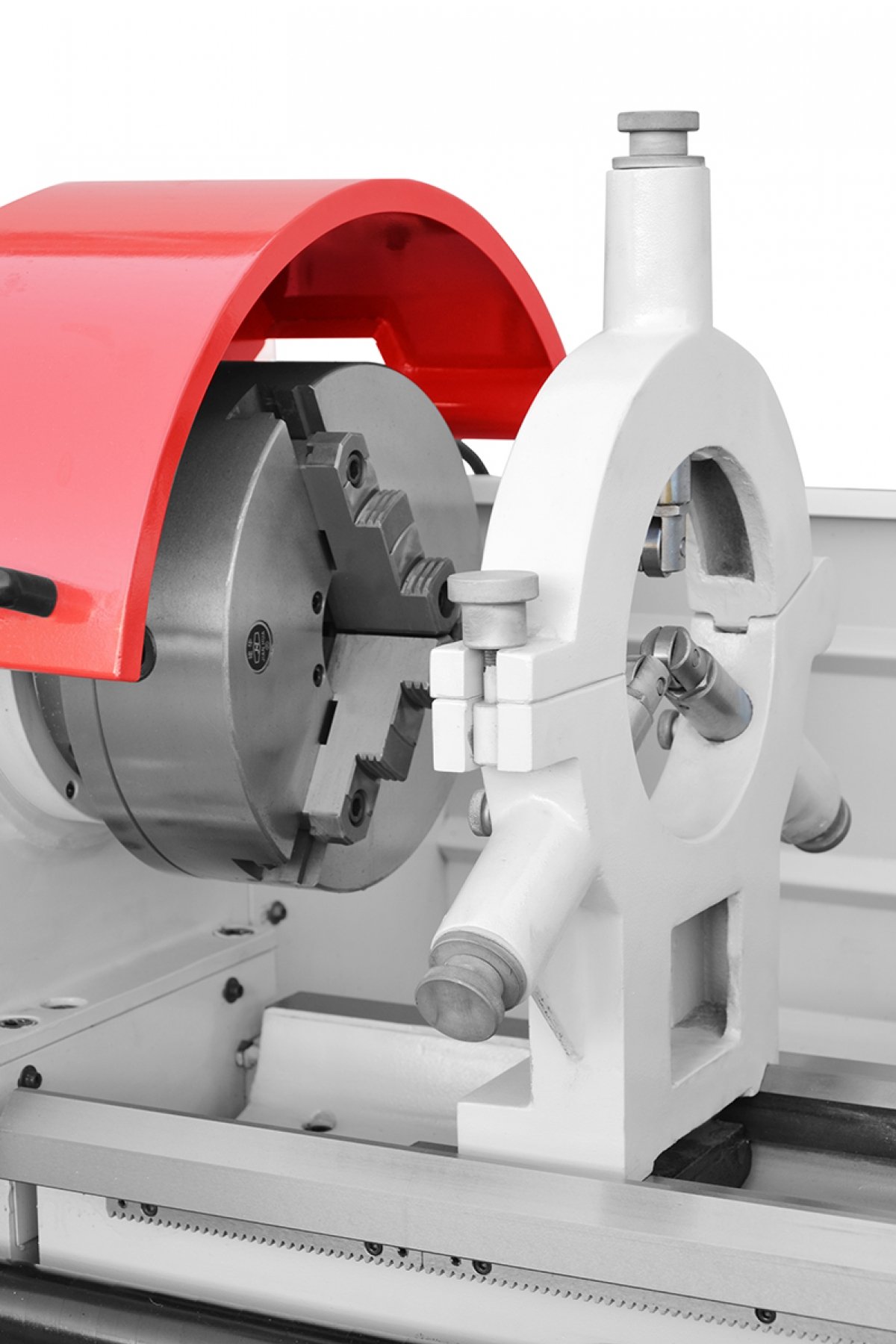

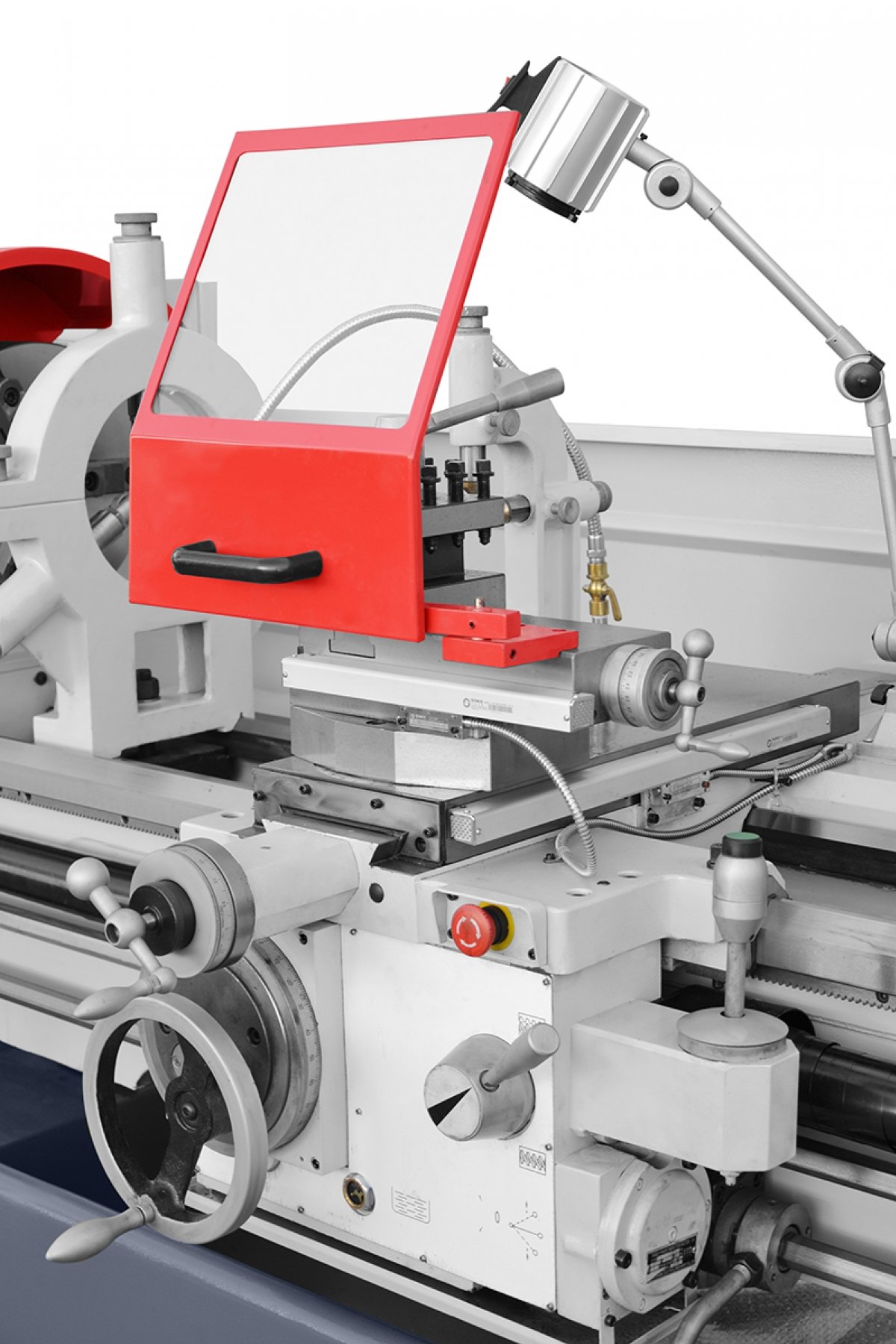

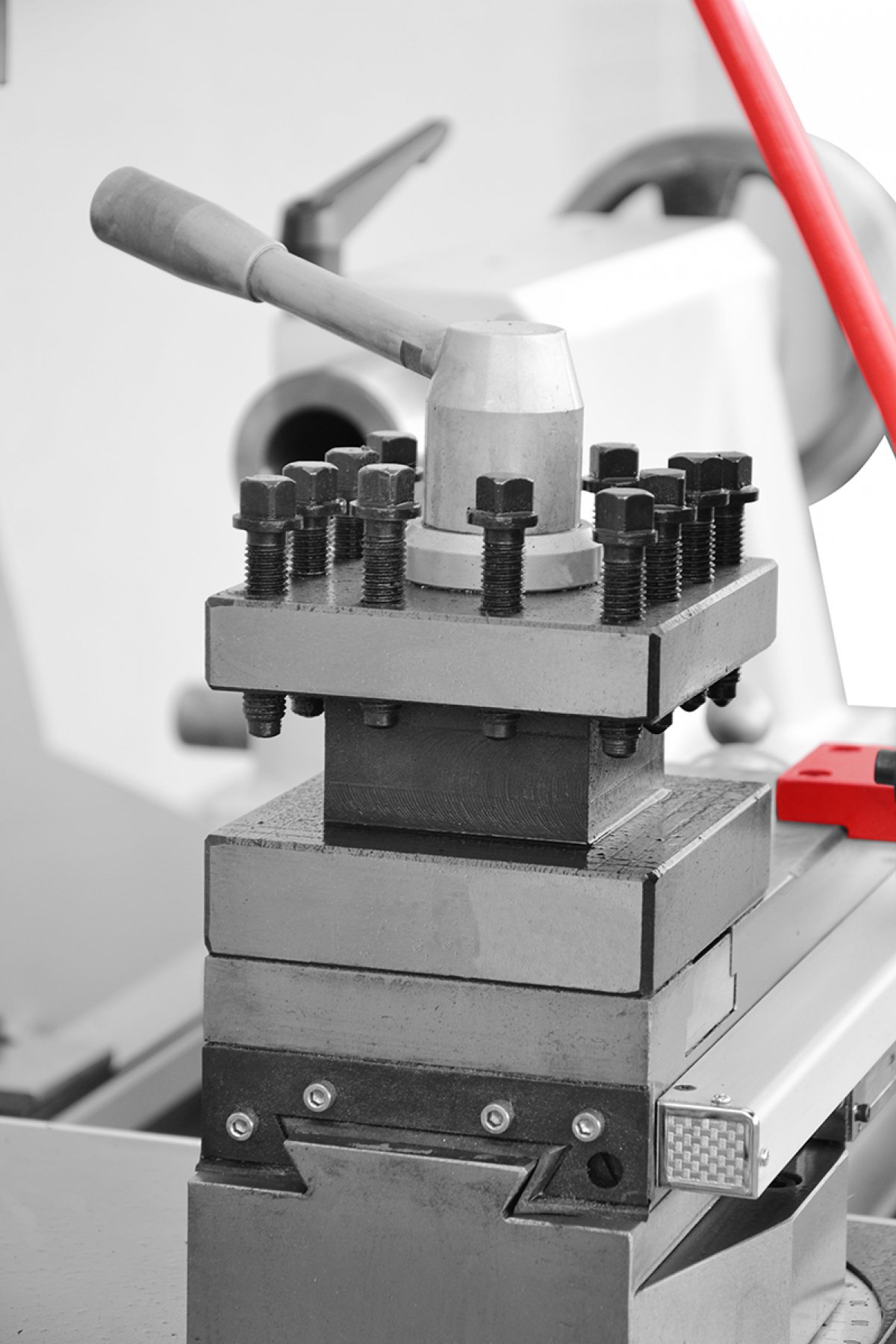

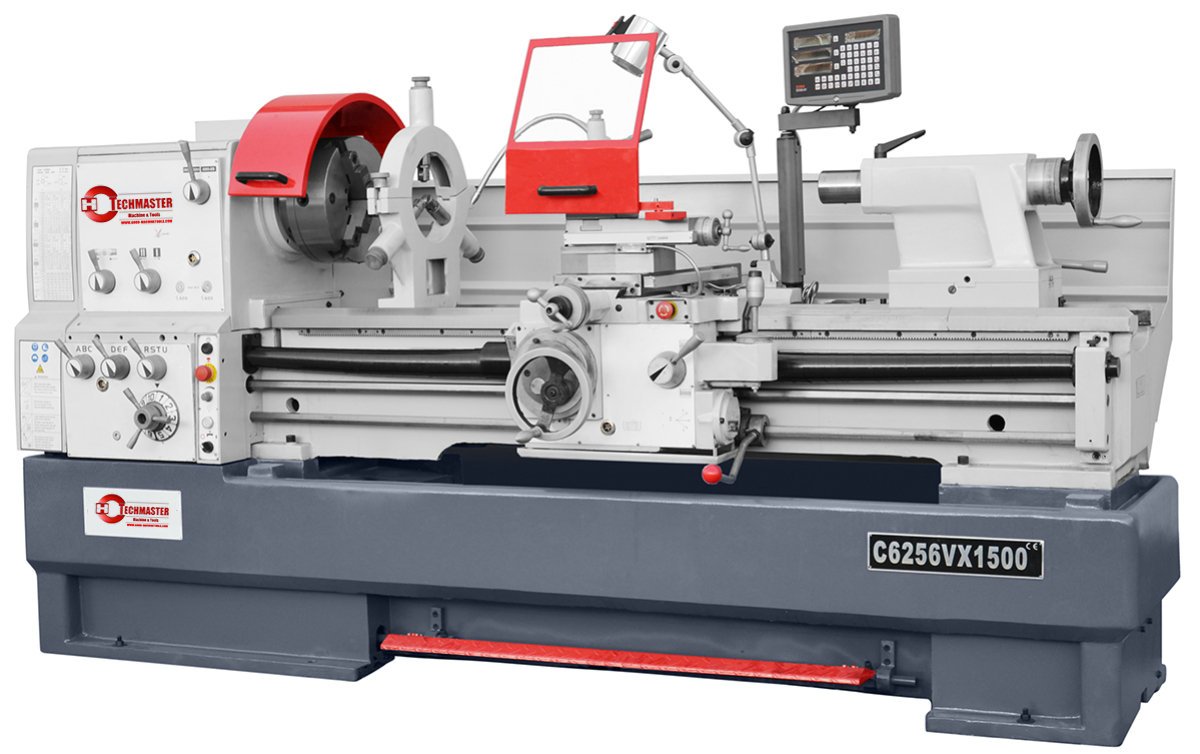

Universal lathe C6256V 560 X 1500 VARIO
| Quantity: | |
|---|---|
| Technical data | |
|---|---|
| CENTRE DISTANCE | 1500 mm |
| CENTRE HEIGHT | 280 mm |
| TURNING DIAMETER OVER BED | 560 mm |
| TURNING DIAMETER IN BRIDGE PIECE GAP | 785 mm |
| TURNING DIAMETER OVER SLIDE | 355 mm |
| BED WIDITH | 350 mm |
| SPINDLE BORE | 105 mm |
| SPINDLE TAPER | D1-8 Camlock |
| SPINDLE SPEEDS RANGE | 25 - 1600 rpm |
| MAXIMAL TOOL DIMENSIONS | 25x25 mm |
| LONGITUDINAL FEED RANGE | (35) 0,059 - 1,64 mm/rev |
| CROSS-FEED RANGE | (35) 0,020 - 0,573 mm/rev |
| METRIC THREAD | (47) 0,2 - 14 mm |
| INCH THREAD | (60) 2 - 112 Gg/1“ |
| MODULAR THREAD | (39) 0.1-7 MP |
| DP THREAD | (50) 4-112 DP |
| TAILSTOCK SPINDLE TAPER | MK 5 |
| MOTOR POWER | 7,5 kW (10,0 KM) |
| DIMENSIONS | 2840 x 1150 x 1460 mm |
| WEIGHT | 2740 kg |
