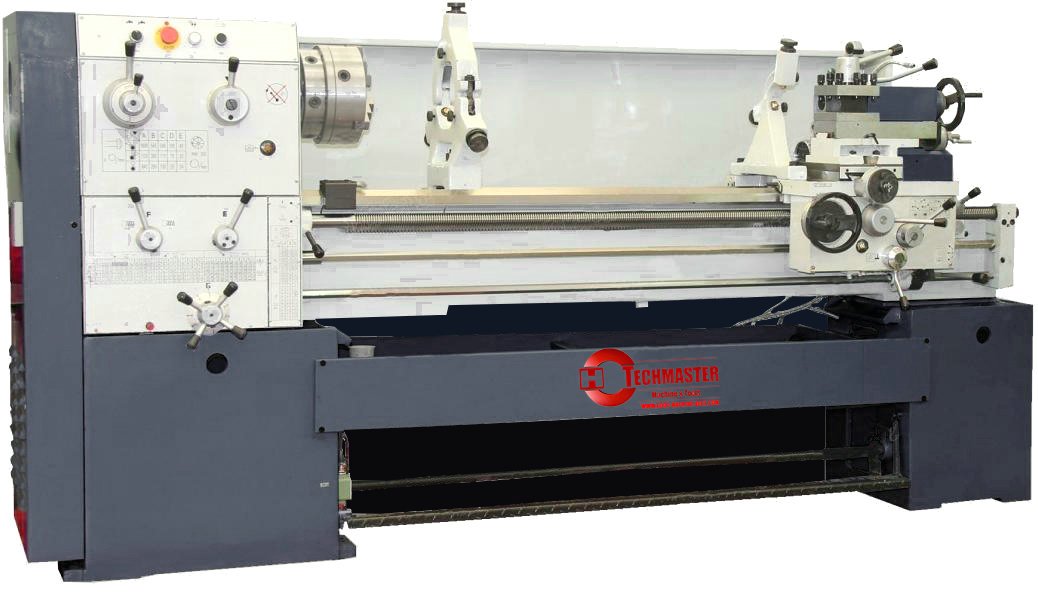

Universal lathe CDC6260 600 x1500/2000
| Quantity: | |
|---|---|
A modern industrial universal lathe with a digital readout. It is used in repair divisions, tool shops and at a lot production.
A modern universal lathe, easy in operation, equipped with a multi-plate friction clutch as well as with a digital readout for 3 axes. It is used in repair divisions, tool shops and at a lot production
| TURNING DIAMETER OVER BED | 600 mm with LCD readout |
| TURNING DIAMETER OVER SLIDE | 360 mm |
| TURNING DIAMETER IN BRIDGE PIECE GAP | 780 mm |
| TURNING LENGTH IN BRIDGE PIECE GAP | 320 mm |
| CENTRE DISTANCE | 2000 mm |
| BED | inductively hardened |
| BED WIDTH | 405mm |
| LATHE CHUCK DIAMETER | 250 mm |
| SPINDLE PASS DIAMETER | 80 mm |
| SPINDLE TIP | D1-8 CAMLOCK |
| | Morse'a 7 |
| SPINDLE REVOLUTIONS RANGE | 24 - 1600 rpm |
| MAXIMAL TOOL DIMENSIONS | 25 x 25 mm |
| LONGITUDINAL FEED RANGE | 0.063 – 2.52 mm/revolution |
| CROSS-FEED RANGE | 0,027 - 1,07 mm/revolution |
| METRIC THREAD | 1 - 14 mm (22 types) |
| INCH THREAD | 28-2 pitch of thread/inch (26 types) |
| MODULAR THREAD | 0.5 – 3.5 mm (18 types) |
| D.P. THREAD | 8 - 56 D.P. (33 types) |
| ACCELERATED LONGITUDINAL FEED | longitudinal – 4.5 m/min, cross – 1.9 m/min |
| TAILSTOCK SPINDLE DIAMETER | 75 mm |
| TAILSTOCK SPINDLE MOVING OUT | 150 mm |
| TAILSTOCK SPINDLE TIP | MT 5 |
| DIGITAL READOUT | for 3 axes |
| MAIN MOTOR POWER | 5,5 kW |
| CUTTING FLUID PUMP POWER | 0,09 kW |
| OVERALL DIMENSIONS | 3250 mm x1150 mm x 1800 mm |
| NET WEIGHT | 2300 kg |

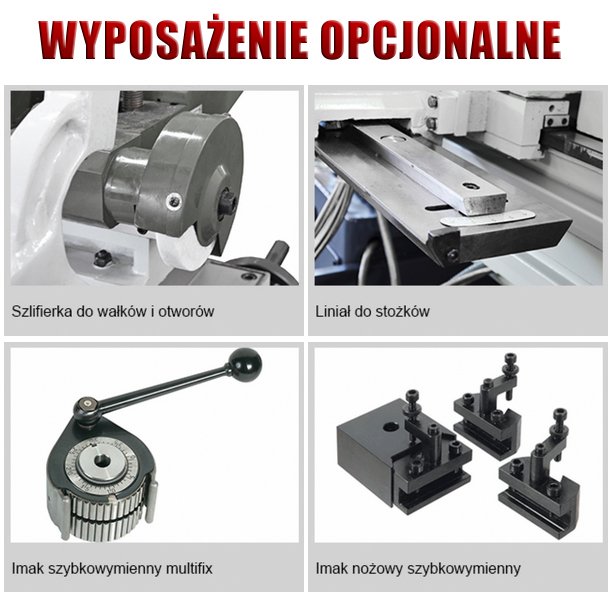

Optional equipment
