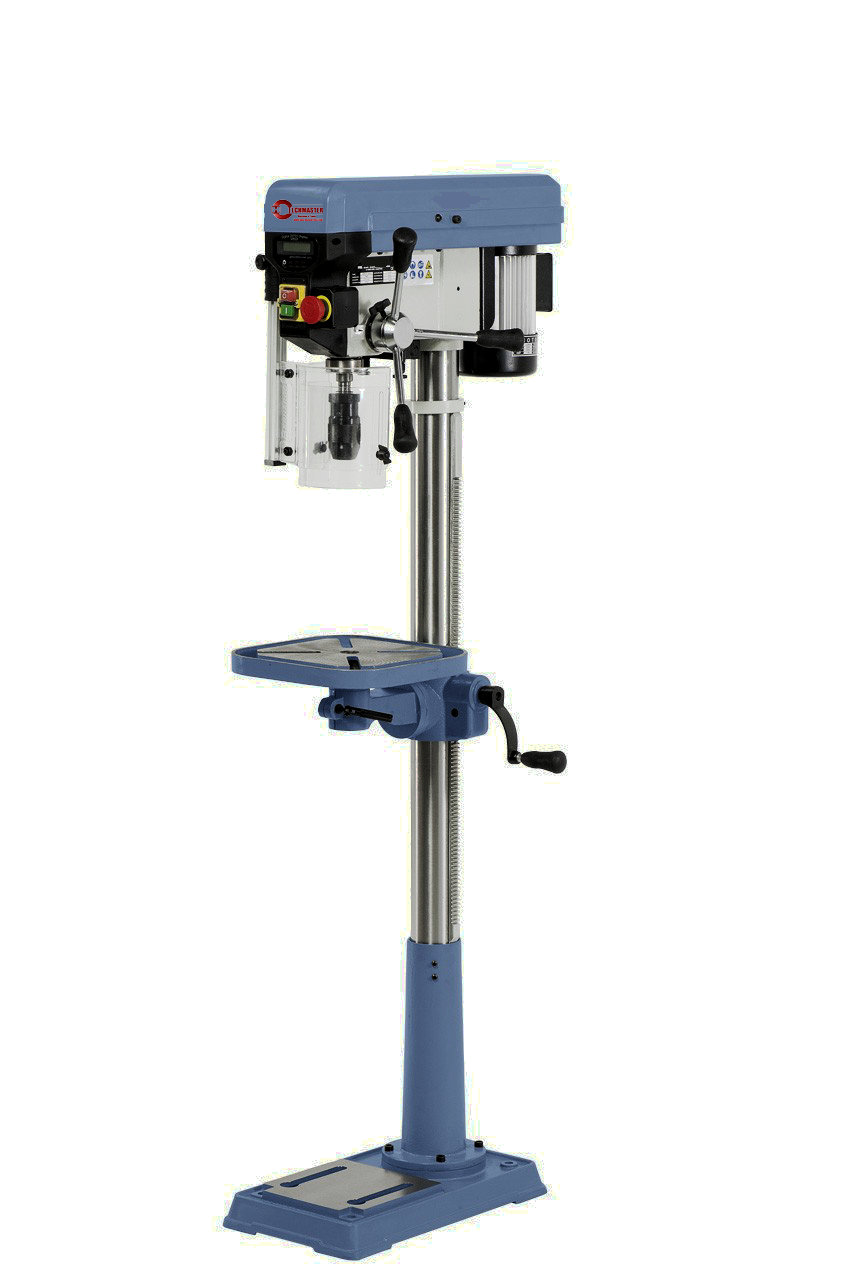

VARIABLE DRILL PRESS 400V ZJ4116X SUPER-230V

You are here: Home » Products » Drilling Machine » Drill Press » VARIABLE DRILL PRESS 400V ZJ4116X SUPER-230V

Product Description

Technische Spezifikationen

Drilling capacity in steel	16 mm
Drill chuck	1 - 16 mm / B 18
Morse taper	MT 2
Spindle speed, stepless	310 - 1950 rpm
Distance spindle to column	160 mm
Table tiltable	-45° to +45°
Distance spindle to table max.	690 mm
Distance spindle to base	1170 mm
Spindle stroke	80 mm
Column diameter	72 mm
Table size / T-slot size	285 x 285 mm / 16 mm
Working surface of base	200 x 190 mm
Motor power output S1 100%	0,60 kW / 230 V
Motor power input S6 40%	0,85 kW / 230 V
Machine dimension (W x D x H)	420 x 600 x 1560 mm
Weight approx.	57 kg

Features

· Digital display allows for easy readout of speed or spindle stroke
· Grey cast iron pulleys ensure smooth operation
· Quality ball bearings guarantee high concentricity ≤0.03mm
· Oversize drill table features diagonal T-slots
· Drill table tilts (±45°) height adjustment by gear rack
· Powerful, high performance aluminium motor according to IP 54 standards
· Precise keyless drill chuck as part of standard equipment
· Comes complete with T-slots in polished base plate
· Ergonomic handles ensure high work comfort

Standard accessories:
· Keyless drill chuck 1 - 16 mm / B 18
· Drill chuck arbor MT 2 / B 18
· Digital readout of speed
· Digital spindle stroke indication
· Cross laser device
· T-slot nuts
· Height adjustable protective cover
· Separate emergency stop button
· Tools
