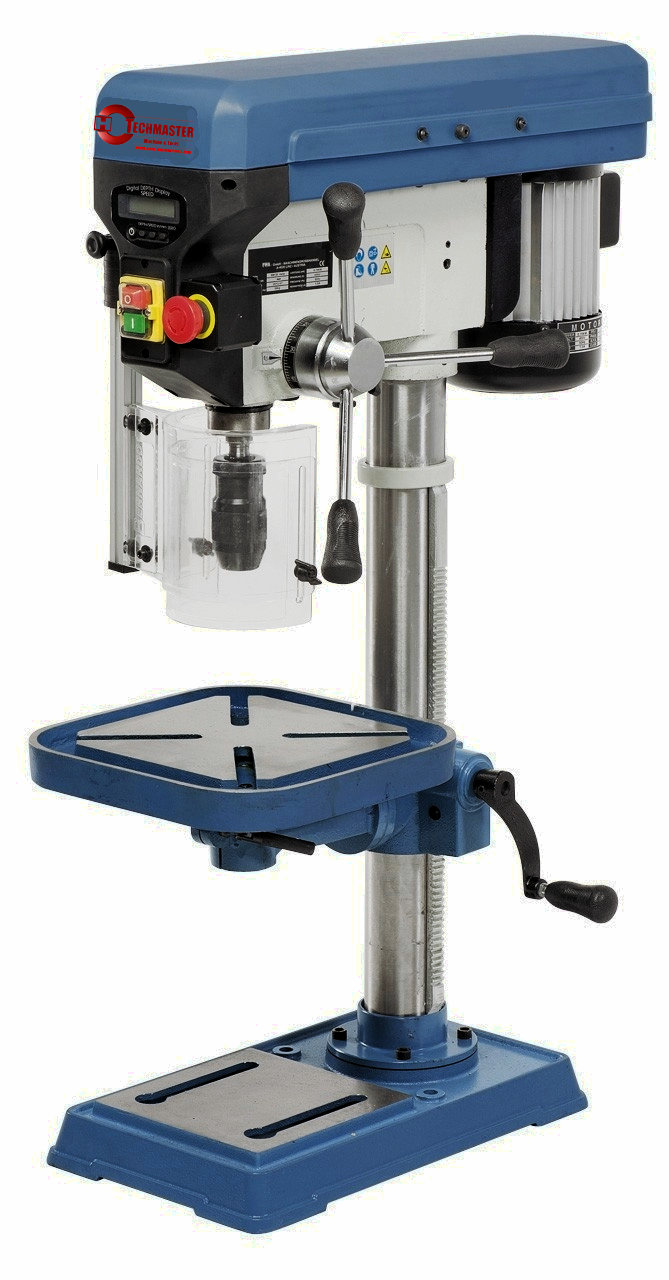

The solid drilling machine featuring vario drive is characterized by high torque even at low speed. Most commonly this model is used by amateurs and for training purposes.
Technische Spezifikationen
| Drilling capacity in steel | 20 mm |
| Drill chuck | 1 - 16 mm / B 18 |
| Morse taper | MT 2 |
| Spindle speed, stepless | 310 - 1950 rpm |
| Distance spindle to column | 180 mm |
| Table tiltable | -45° to +45° |
| Distance spindle to table max. | 415 mm |
| Distance spindle to base | 605 mm |
| Spindle stroke | 80 mm |
| Column diameter | 72 mm |
| Table size / T-slot size | 305 x 305 mm / 16 mm |
| Working surface of base | 205 x 205 mm |
| Motor power output S1 1 100% | 0,75 kW / 230 V |
| Motor power input S6 40% | 1,1 kW / 230 V |
| Machine dimension (W x D x H) | 400 x 630 x 990 mm |
| Weight approx. | 57 kg |
Features
· Digital display allows easy readout of set speed or spindle stroke · Grey cast iron pulley ensures smooth operation · High-quality ball bearings guarantee high concentricity ≤0,03 mm · Large drill table features diagonal T-slots · Drill table tilts (±45°) – gear rack allows height adjustment · Powerful, high performance aluminium motor in accordance with IP 54 standards · Precise keyless drill chuck comes as part of the standard accessories · Complete with T-slots in polished base plate · Ergonomically designed handles maximises work comfort Standard accessories: · Keyless drill chuck 1 – 16 mm / B 18 · Drill chuck arbor MT 2 / B 18 · Digital spindle stroke indication · Digital readout of speed · Cross line laser device · T-slot nuts · Height adjustable protective cover · Separate emergency stop switch · Tools
