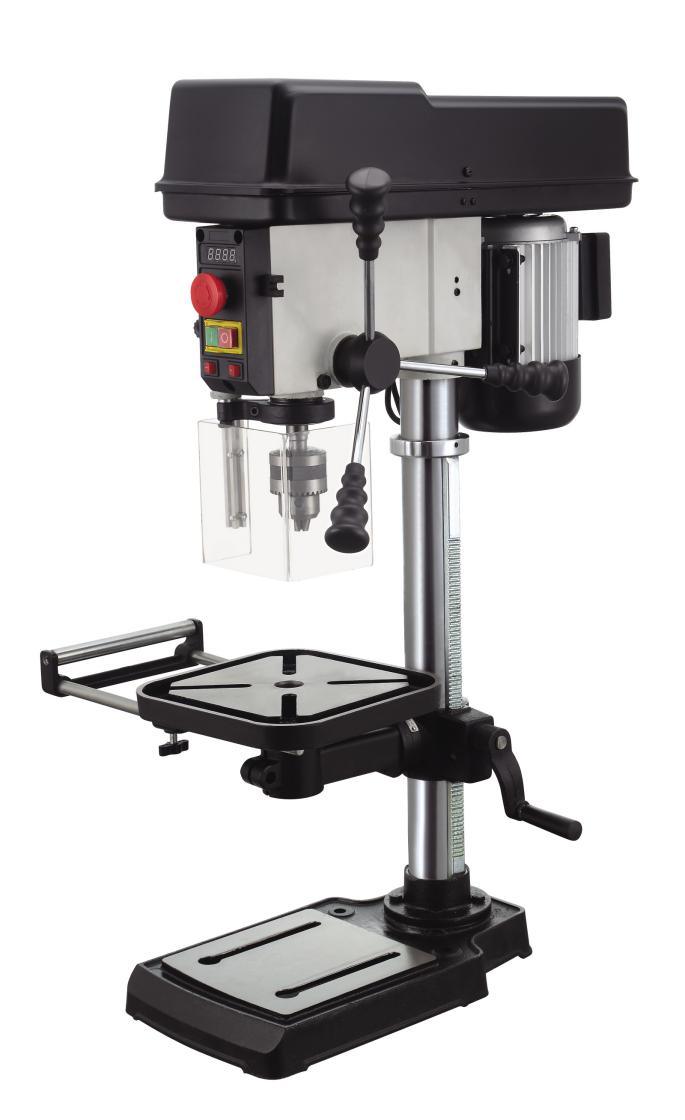

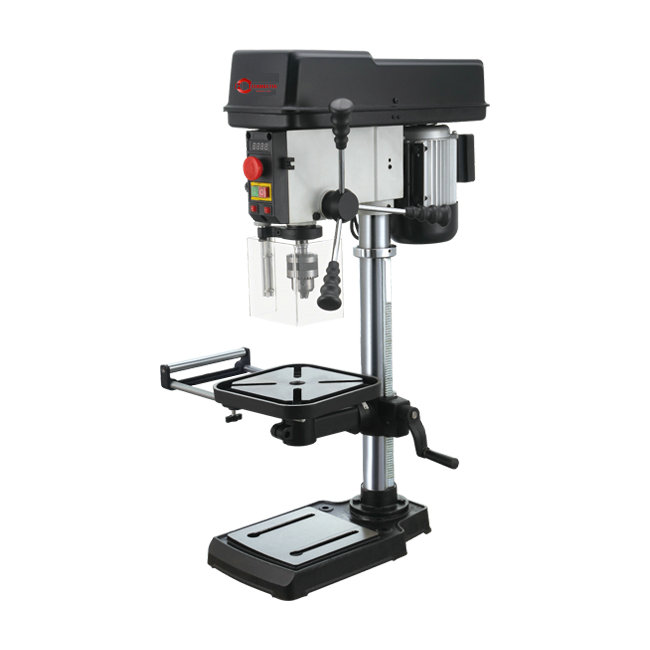

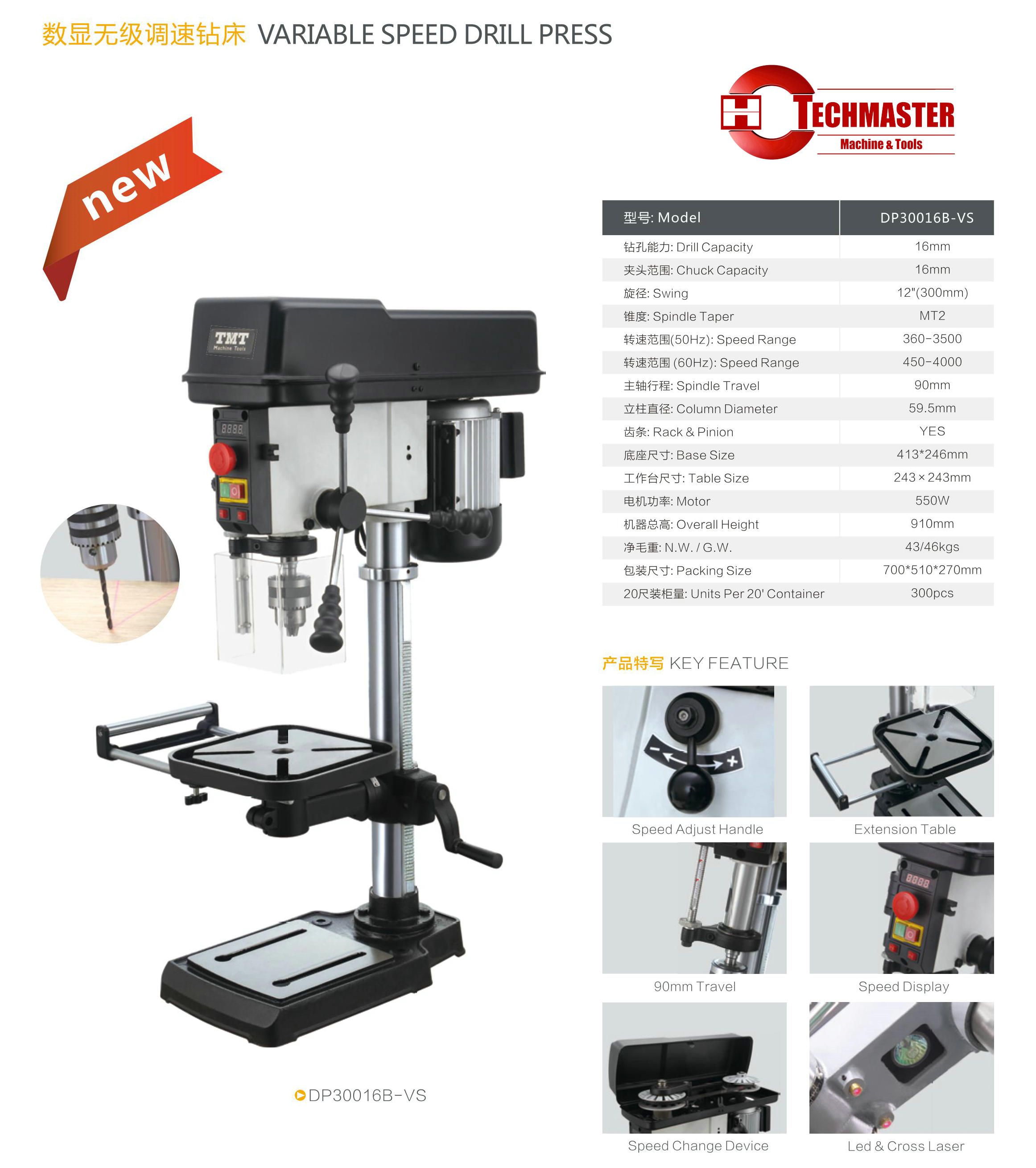

VARIABLE SPEED DRILL DP30016B-VS
| Quantity: | |
|---|---|
 Model/Specification | DP30016B-VS |
| Drill Capacity(mm) | 16 |
| Swing（mm) | 300 |
| Spindle Taper | MT2 |
| Speed No. | |
| Speed range(rpm 50Hz) | 340-2200 |
| Spindle travel(mm) | 90 |
| Collumn Diameter(mm) | 59.5 |
| Rack&pinion | yes |
| Max distance from spindle to table | 320 |
| Max distance from spindle to base | 490 |
| Base Size(mm) | 413*246 |
| Table Size(mm) | 243*243 |
| Table tilt | yes -45/45° |
| Motor(w)/S1 | 500 |
| Height(mm) | 910 |
| NW/GW(kg) | 43/46 |
| Packing Size(mm) | 760*500*280 |
| Units Per 20' Container | 270 |
| Model/Specification | DP30016B-VS |
| Drill Capacity(mm) | 16 |
| Swing（mm) | 300 |
| Spindle Taper | MT2 |
| Speed No. | |
| Speed range(rpm 50Hz) | 340-2200 |
| Spindle travel(mm) | 90 |
| Collumn Diameter(mm) | 59.5 |
| Rack&pinion | yes |
| Max distance from spindle to table | 320 |
| Max distance from spindle to base | 490 |
| Base Size(mm) | 413*246 |
| Table Size(mm) | 243*243 |
| Table tilt | yes -45/45° |
| Motor(w)/S1 | 500 |
| Height(mm) | 910 |
| NW/GW(kg) | 43/46 |
| Packing Size(mm) | 760*500*280 |
| Units Per 20' Container | 270 |
