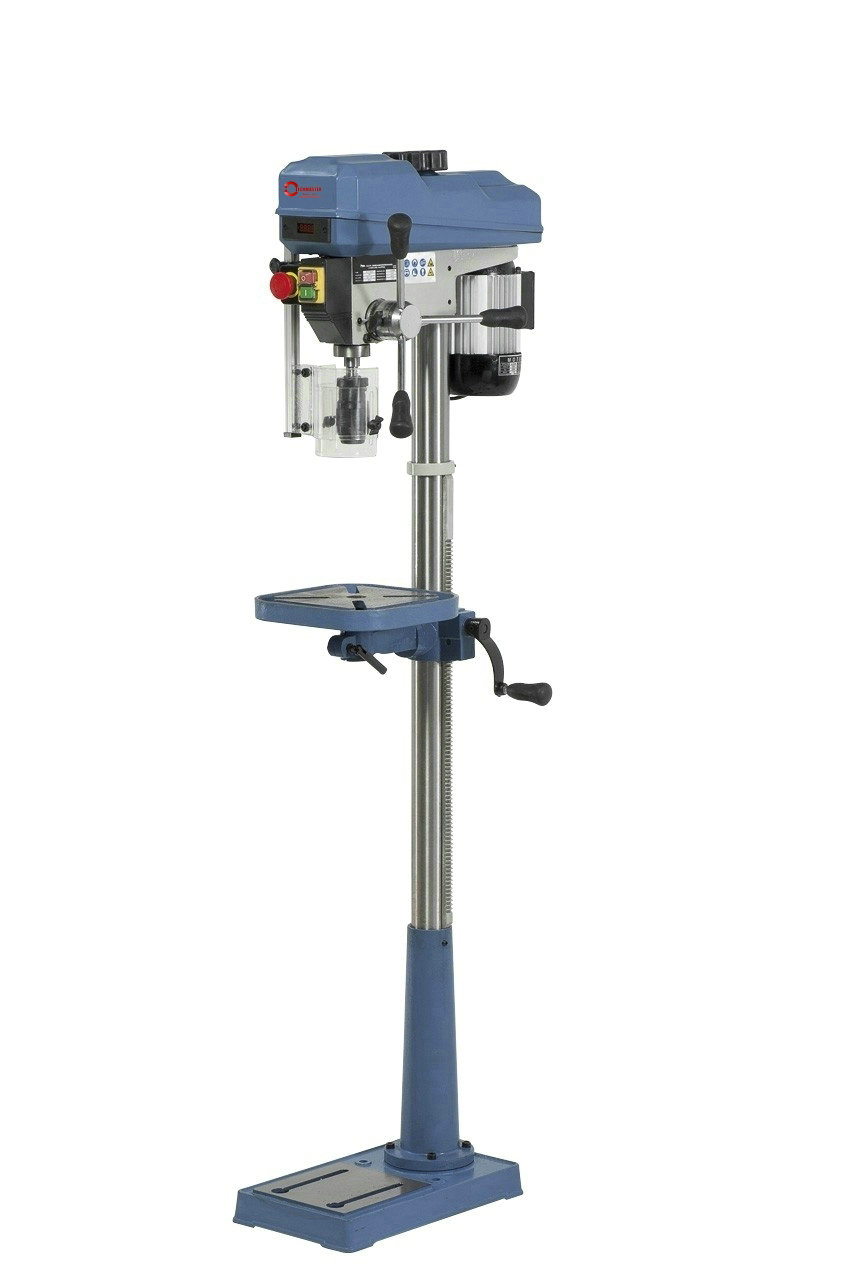

VARIABLE SPEED ZJW4116 SUPER

You are here: Home » Products » Drilling Machine » Drill Press » VARIABLE SPEED ZJW4116 SUPER

Product Description

Technische Spezifikationen

Drilling capacity max.	16 mm
Drill chuck	1 - 16 mm / B 18
Morse taper	MT 2
Spindle speed, stepless	350 - 3000 rpm
Distance spindle to column	150 mm
Table tiltable	-45° to +45°
Distance spindle to table max.	730 mm
Distance spindle to base	1220 mm
Spindle stroke	85 mm
Column diameter	58 mm
Table size / T-slot size	250 x 250 mm / 16 mm
Working surface of base	185 x 200 mm
Motor power output S1 100%	0,55 kW / 230 V
Motor power input S6 40%	0,80 kW / 230 V
Machine dimension (W x D x H)	320 x 510 x 1600 mm
Weight approx.	48 kg

Features

· Table tilts 0° to 45° left/ right. Gear rack allows height adjustment
· Digital readouts ensure optimal speed adjustment
· Smooth running, powerful aluminium motor in accordance with IP 54
· Guaranteed concentricity ≤0.03 mm measured at spindle
· Precisely treated machine base features T-slots
· Comes complete with stepless speed adjustment
· Height adjustable protective cover in accordance with CE standards for maximum safety
· Protective switch in accordance with IP54 standards and low voltage release
· Drill spindle embedded in precise ball bearings

Standard accessories:
· Keyless drill chuck 1 - 16 mm / B 18
· Drill chuck arbor MT 2 / B 18
· Digital readout of speeds
· Stepless speed adjustment
· T-slot nuts
· Height adjustable protective cover
· Separate emergency stop switch
· Tools
