Features
♦ Accurate threading of gas, water, oil, stainless pipe.

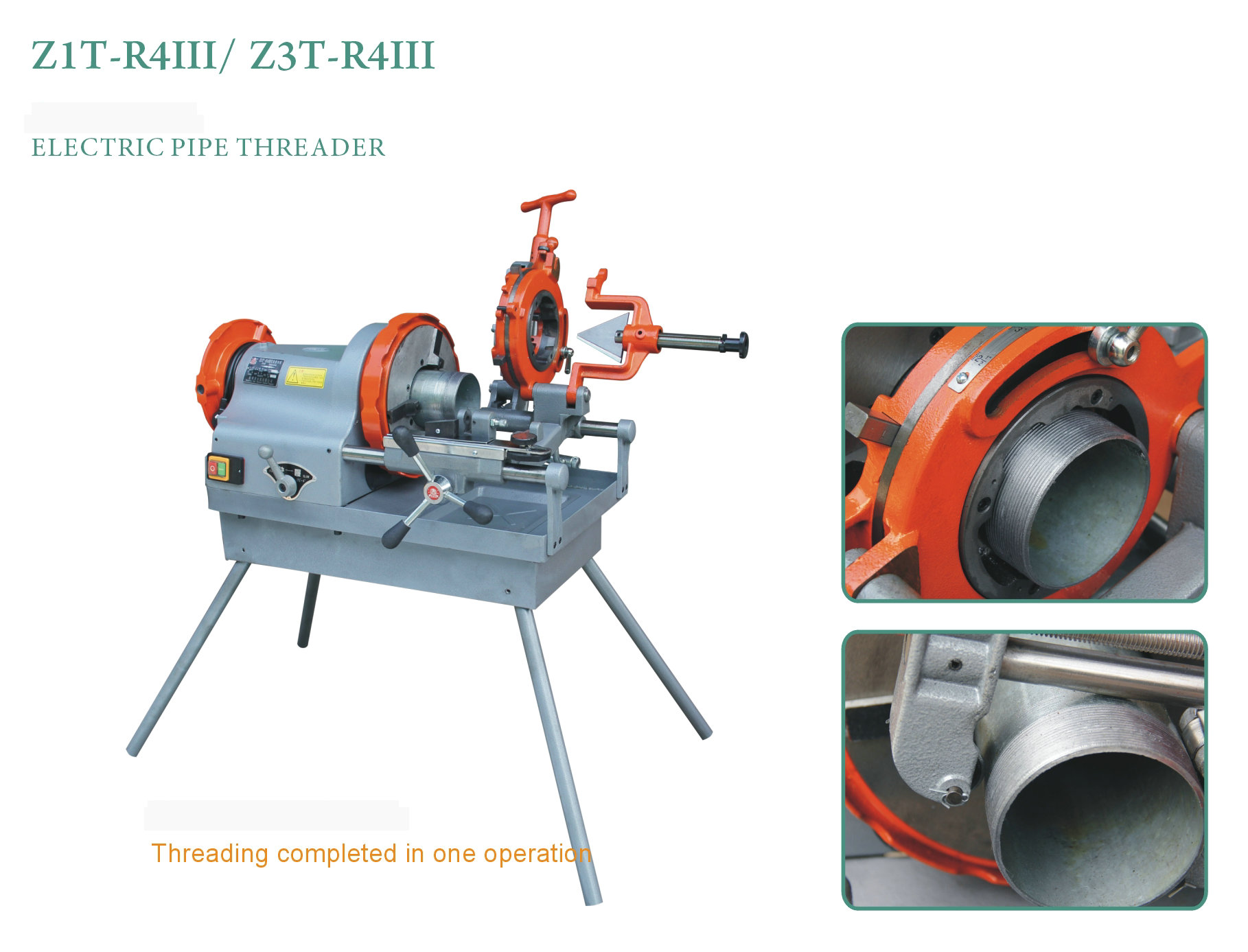

♦ Threading completed in one operation.
♦ Chuck: Impact Chuck and exchangeable Chuck Jaw.
♦ Gear box driving.
♦ Induction motor.
♦ Compact design with cast aluminum body. Easy and fast transport and set-up.
♦ Universal applicable, can also work on workbench.
♦ POWDER COATING, instead of traditional painting, healthy, environmental friendly.
♦ AUTOMATIC type DIE HEAD, 2 heads equipped.
♦ Constant oil flow, through the die head, with an integral oil reservoir.
♦ CE Approved.
Specifications
| Main Parameters | Paramters Content |
| Pipe Capacity | 1/2"-4" |
| Applicable Threader Standard | BSPT, NPT |
| Output Power | 750W |
| Speed | 19/27 RPM |
| Voltage | 220V~ or 110V single phase |
| Frequency | 50Hz or 60Hz |
| Switches | FOR/OFF and Safety Foot Switch optional |
| Die | Alloy or HSS |
| Chuck | Automatic with 3 reversible alloy jaws |
| Cutter | Wheel type, self-centering |
| Reamer | 1/2"-4" cone blade, 5-flute cone optional |
| Oil Pump | Gerotor Oil Pump |
| Gross/Net Weight | 150/135kg |
Standard Accessories
♦ Two pcs of automatic type Die Head
♦ One set of 1/2”-3/4” Die
♦ One set of 1”-2” Die
♦ One set of 2 1/2”-4” Die
♦ One set of 1/2"-4"Cutter Kit
♦ One set of 1/2"-4"Reamer Kit
♦ Four pcs of Tubular Supporter
Optional Accessories
♦ Foot Switch
♦ Nipple Chuck Kit
♦ Threader Stands
Ordering information
| Code | Model No. | Description | Weight |
| 40000 | Z1T-R4III | complete set.1/2"-4",BSPT 220V-50HZ or 60HZ | 135KG |
| 40001 | Z1T-R4III | Complete set.1/2"-4",NPT 110V-60HZ | 135KG |
Accessories
| Code | Model No. | Description |
| 40200 | 1/2"-4" | Front chuck kit |
| 40220 | 1/2"-4" | Rear chuck kit |
| 40203 | 1/2"-4" | Front chuck jaws 3pcs/set |
| 40300 | 1/2"-4" | Gear box kit |
| 40400A | 1/2"-2" | Die head, automatic |
| 40400B | 2 1/2"-4" | Die head, automatic |
| 40500 | 1/2"-4" | Reamer kit |
| 40600 | 1/2"-4" | Pipe Cutter |
| 40700 | 1/2"-4" | Length change apparatus |
| 40800 | 4" | 220V/50HZ motor |
| 80302 | | Oil pump |
| 80607 | | Cutter wheel |
Dies Set
| Code | Size | Material |
| 80000 | 1/2"-3/4" BSPT | alloy |
| 80001 | 1"-2" BSPT | alloy |
| 80009 | 2 1/2"-4" BSPT | alloy |
| 80002 | 1/2"-3/4" NPT (optional) | alloy |
| 80003 | 1"-2" NPT (optional) | alloy |
| 80011 | 2 1/2"-4" NPT (optional) | alloy |
| 80004 | 1/2"-3/4" BSPT HSS (optional) | HSS |
| 80005 | 1"-2" BSPT HSS (optional) | HSS |
| 80013 | 2 1/2"-4" BSPT HSS (optional) | HSS |
| 80006 | 1/2"-3/4" NPT HSS (optional) | HSS |
| 80007 | 1"-2" NPT HSS (optional) | HSS |
| 80015 | 2 1/2"-4" NPT HSS (optional) | HSS |
| 80016 | 1/4"-3/8" BSPT(optional) (optional) | alloy |
| 80017 | 1/4"-3/8" NPT(optional) (optional) | alloy |
| 80017 | 1/4"-3/8" NPT(optional) (optional) | alloy |
