| Maximum roll pressure | 260KN | Spindle speed | 16,26,38,55,90 r/min |
|---|---|---|---|
| Rolling material diameter | 90mm | Active power | 15kw |
| Track rollers | 210mm | Hydraulic power | 5.5kw |
| Diameter rollers | 75mm | Cooling power | 125w |
| Maximum thickness of roller | 120mm | Dimension | 2450*1780*1670mm |
| Axis tilt angle | ±15° | Total mass | 3000kgs(±50kgs) |
| Spindle center distance | 150-300mm | Open thread lendth | plus protection |

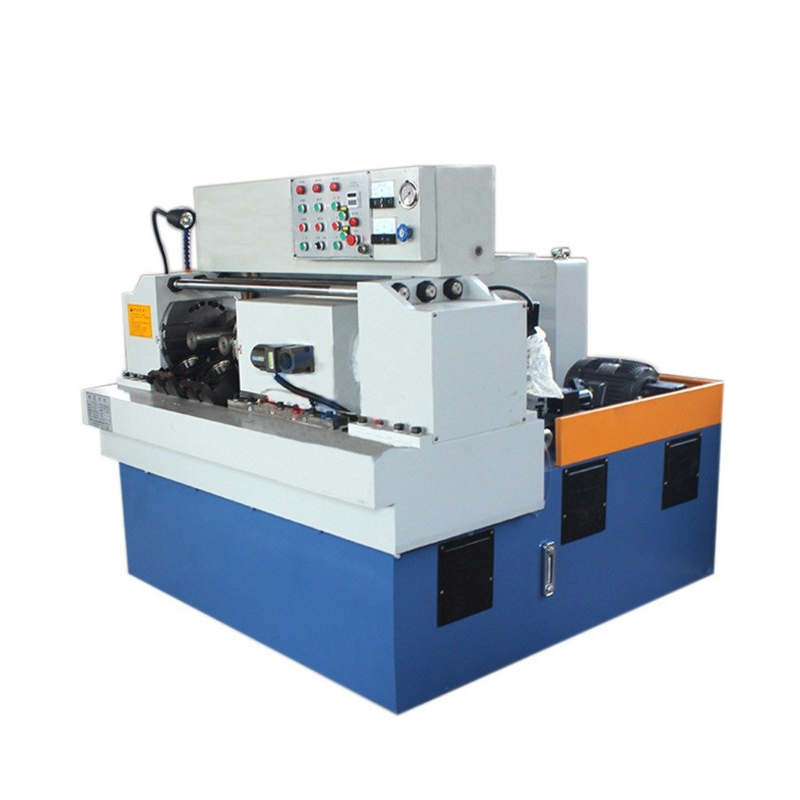

Z28-250 Type Screw Rolling Machine
This Z28-250 Type rolling machine is primarily used for manufacture various types of precision external roll thread, high strength standard parts, including the general pass thread, T-screw roll thread and modulus.
