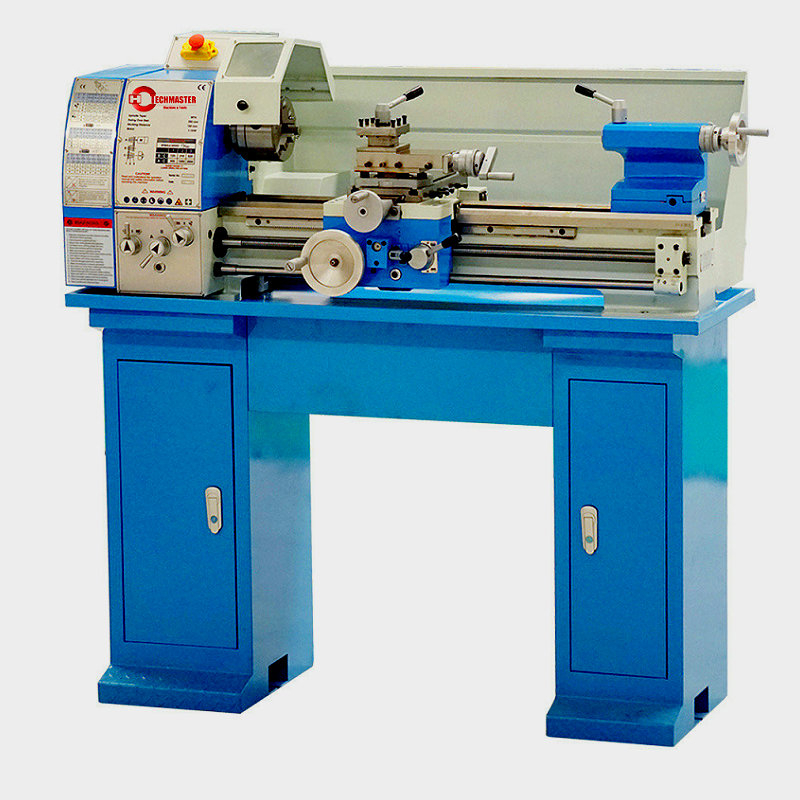

HC290F X 700
| Quantity: | |
|---|---|
| MODEL | HC290/700MM |
| Distance between centers | 700mm |
| Swing over bed | Ø280mm |
| Swing over cross slide | Ø165mm |
| Width of bed | 180mm |
| Taper of spindle bore | MT5 |
| Spindle bore | 38mm |
| Number of spindle speeds | Variable |
| Range of spindle speeds | 125-2000/50-1800rpm |
| Range of cross feeds | 0.017-0.12/r |
| Range of longitudinal feeds | 0.07-0.65mm/r |
| Range of inch threads (imperial version) | 8-56 T.P.I |
| Range of metric threads (metric version) | 0.2-3.5mm |
| Top slide travel | 60mm |
| Cross slide travel | 140mm |
| Tailstock quill travel | 80mm |
| Taper of tailstock quill | MT3 |
| Motor (brushless) | 750W(AC)/1.1KW(DC) |
| Machine size | 1300x550x500mm |
| Packing size | 1400x680x700mm |
| Net weight | 230kg |
Standard Accessories
| 160MM 3-JAW Chuck |
| Chip Tray |
| Splash Guard |
| Toolbox and Tools |
Optional Accessories
| Steady Rest |
| Follow Rest |
| Face Plate |
| 4-Jaw chuck 125mm |
| Backplate for 4 jaw chuck |
| ER32 coller fixture |
| Threading Diail |
| 2-Axis DRO (Magnetic Scales) |
| 3-Axis DRO (Magnetic Scales) |
| Stand |
| Luxury Stand |
| Quick chage Tool Post (TOOA1) |
| Turning Tools |
