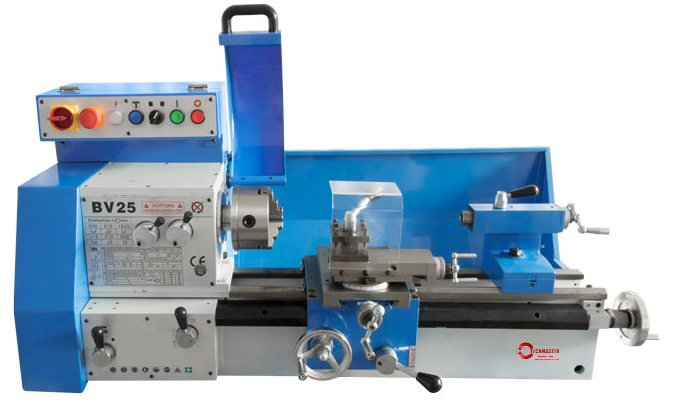

BENCH LATHE BV25B

Specifications:
TECHNICAL STANDARD BV25B
mid height 125mm
maximal cone point amplitude 450mm
max. cutting diameter - machine base 250mm
max. cutting diameter - tool fitting 130mm
max. turning length 420mm
bore diameter primary shaft 27mm
cone primary shaft MK4
reduction stage of the primary shaft 6 levels
revolution of the primary shaft 115 - 1620 rpm
(with and converse of the clock wise)
types of metric threads, which can be rotated 20
acclivities of the threads, which can be rotated 0,2 - 3,5
types of thread measured in inches, which can be rotated 20
acclivities of the threads, which can be rotated 8 - 56
levels of the longitudinal feed 2 levels
longitudinal feed of the tool fitting per rotation
of the primary shaft 0,05 - 0,10mm
vertical distance from the primary shaft axis to the higher level
of the tool fitting 15mm
Max. angle of twist of the small tool fitting +/- 45
action of chart of the collateral tool fitting 0,04mm
action of chart of the small tool fitting 0,04mm
Max. reach length of the small tool fitting 70mm
Max. collateral reach length of the small tool fitting 115mm
Max. longitudinal feed of the manual support (manuell) 350mm
Stroke of tailstock 70mm
Engine power 750W S1, 220V/400V, 50 Hz
