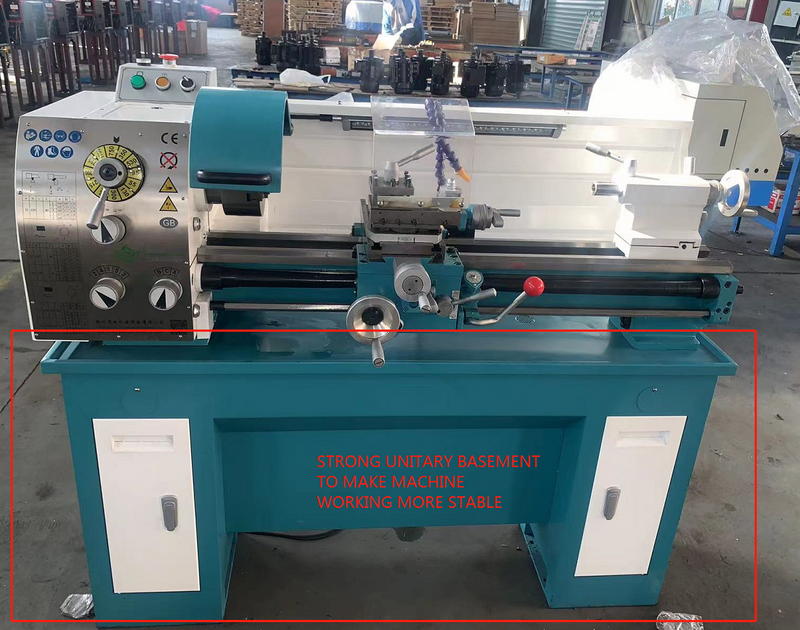

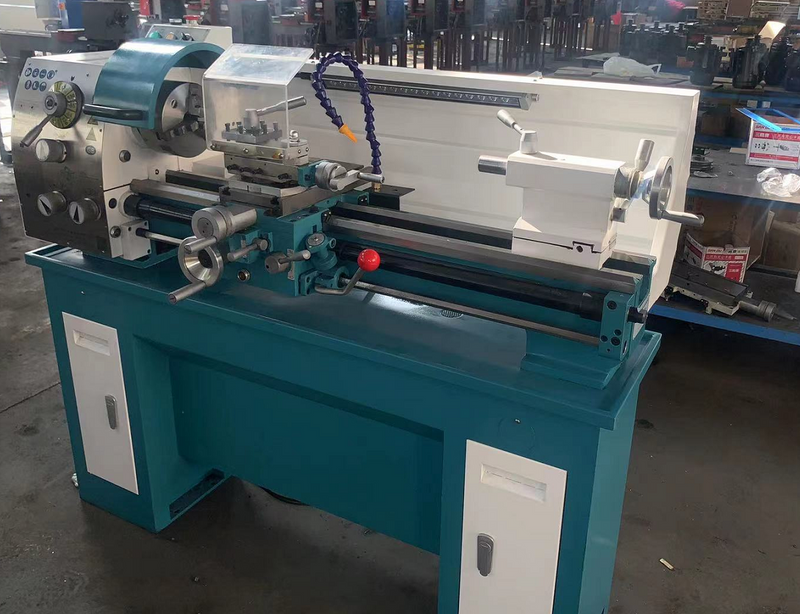

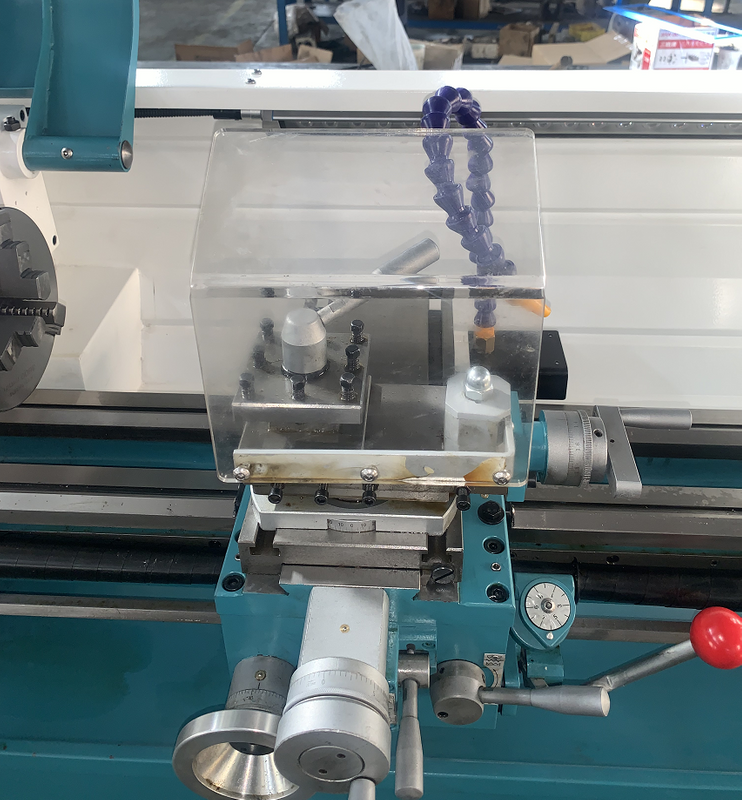

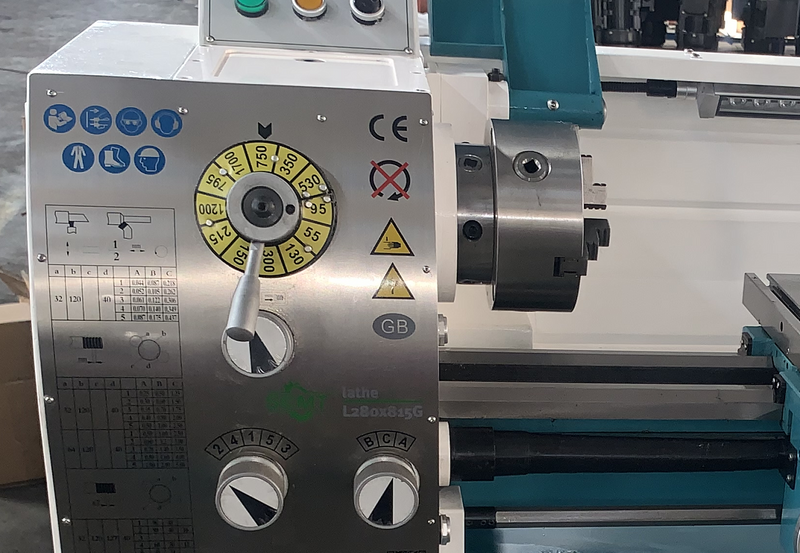

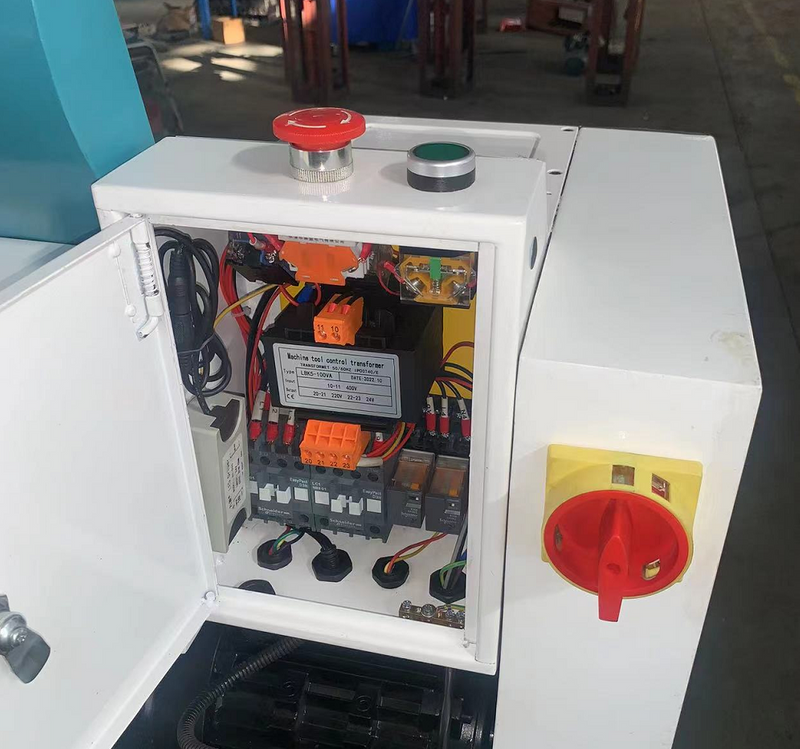

| Machine tool specifications and main parameters | | |
| MODEL NAME | ML310XX610 & ML310X815 | |
| Machine tool processing scope | | |
| SWING OVER BED | φ310mm | |
| SWING OVER CROSS SLIDE | φ195mm | |
| HEIGHT OF CENTER | 155mm | |
| TWO CENTERS LENGTH | 610mm / 815mm | |
| WIDTH OF BED | 150mm | |
| THREE CHUCK DIAMETER | 160mm | |
| 12×12mm | | |
| Maximum transverse stroke of cross slide | 135mm | |
| Maximum longitudinal stroke of tool slide | 112mm | |
| spindle | | |
| spindle hole | φ38mm | |
| taper /CAM LOCK | MT5 ;D1-4 | |
| MOSE TAPER | MT5号/MT2号OR MT5/MT3 | |
| SPINDLE | 12 | |
| SPINDLE SPEED | 55-1700rpm | |
| Machine thread specification and cutting quantity specification | | |
| LEADING SCREW SIZE | φ20mm×2.5mm，φ20mm×3mm(OPTIONL) | |
| METRCIC THREAD | 0.25-5mm (21种) | |
| INCH THREAD | 6-96 T.P.I. (13kinds) | |
| LONGITUDINAL FEEDING | 0.044-0.437mm/r (15kinds) | |
| CROSS FEEDING | 0.022-0.218mm/r (15 kinds) | |
| TAILSTOCK | | |
| TAILSTOCK TRAVEL. | 95mm（MT2）OR 85mm（MT3） | |
| TAILSTOCK OUTSIDE DIAMETER | φ30mm | |
| taper /CAM LOCK | MT2 / MT3 | |
| MOTOR | | |
| POWER | 1.1Kw | |
| PUMP POWER | 40w | |
| Specification | ||||
| Models | ML260×610/815 | ML280×610/815 | ML310×/610/815 | ML300AV×610/815 |
| Capacity | ||||
| Distance Between Centers | 610mm/815mm | |||
| Swing Over Bed | 280mm | 310mm | ||
| Swing Over Cross Slide | 165mm | 195mm | ||
| Width of Bed | 150mm | 150mm | ||
| Cutting Tool Max. Section | 12×12mm | 16×16mm | ||
| Total Travel of Cross Slide | 135mm | 150mm | ||
| Total Travel of Top Slide | 70mm | |||
| Headstock | ||||
| Spindle Speeds Number | 12 | Stepless speed regulation in gear | ||
| Spindle Speeds Range | 80-1600r.p.m | 45-2000r.p.m | 55-1700r.p.m | Low gear：45-750r.p.m High gear：120-2000r.p.m |
| Spindle Bore | φ26mm | φ38mm | ||
| Spindle Nose | Short cylindrical connection | D1-4 | ||
| Spindle reducing bush taper | M.T.No.4/M.T.No.2 or M.T.No.4/M.T.No.3 | M.T.No.5/M.T.No.2 or M.T.No.5/M.T.No.3 | ||
| Thread & Feeds | ||||
| Lead screw Diameter & Thread | φ20mm×2.5mm / φ20mm×3.0mm | |||
| Threads Metric Pitches | 0.25-5mm(21nos) / 0.25-2.5mm(14nos) | |||
| Threads Imperial Pitches | 6-96T.P.I.(13nos) / 12-96T.P.I.(9nos) | |||
| Longitudinal Feeds Metric | 0.044-0.437mm/Rev(14nos) / 0.036-0.364mm/Rev(14nos) | |||
| Cross Feeds Metric | 0.022-0.218mm/Rev(14nos) /0.018-0.182mm/Rev(14nos) | |||
| Tailstock | ||||
| Total Travel of Tailstock Quill | 95mm（M.T.No.2） or 85mm（M.T.No.3） | 90mm（M.T.No.2） or 80mm（M.T.No.3） | ||
| Tailstock Quill Diameter | φ30mm | |||
| Taper In Tailstock Quill | M.T.No.2 or M.T.No.3 | |||
| Motor | ||||
| Spindle Drive Motor | 750W | 1.1KW | ||
| Coolant Pump Motor | 40W | |||
| Weight & Measures | ||||
| Machine Space Required(L×W×H): mm | | 1216×590×515 /1416×590×515(For reference only) | | |
| Packing Case Dimensions(L×W×H): mm | 1165×580×620 | 1265×580×620 /1465×580×620（For reference only） | | |
| Net Weight | | 332.5kg/342.5kg （For reference only） | | |
