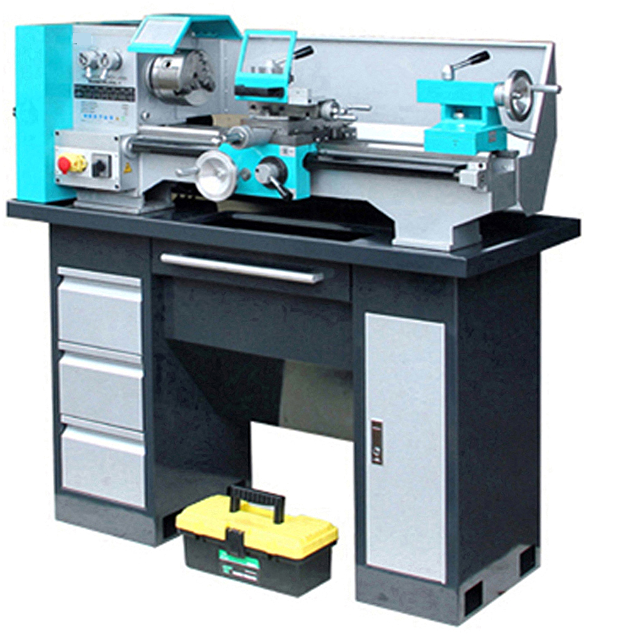

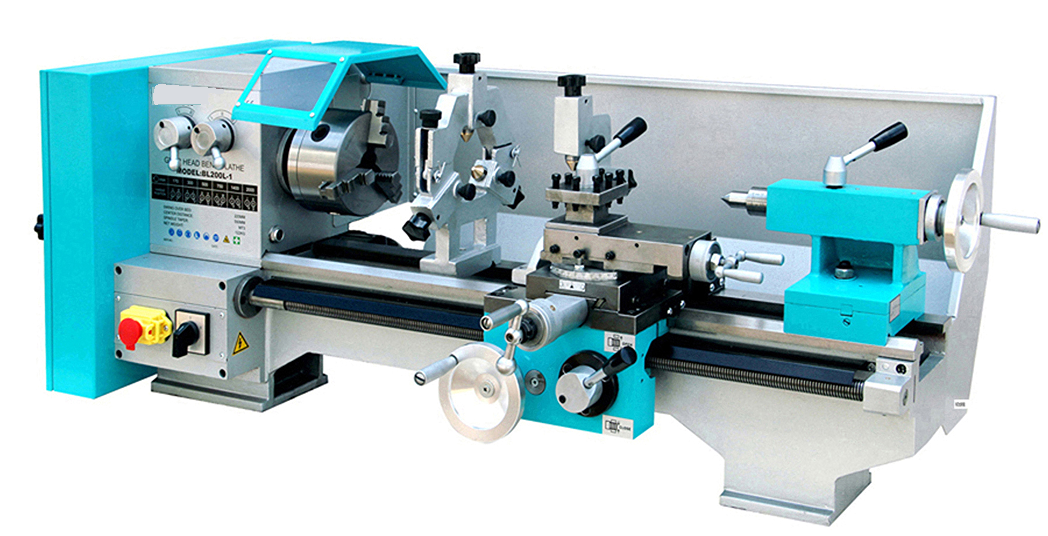

BL200C LATHE MACHINE FOR METAL

Swing over bed

220mm

Swing over cross slide

120mm

Distance between centers

520mm

Taper of spindle bore

MT3#

Width of bed

125mm

Spindle bore

22mm

Range of spindle speeds

140—2000rpm

Min Auto-Feeding in Longitudinal Direction

0.10mm/r

Inch threading

8—48TPI

Metric threading

0.4—3mm

Travel of compound slide

60mm

Tool Section

10x10mm

Travel of cross slide

115mm

Tailstock quill travel

60mm

Tailstock Diameter

30mm

Taper of tailstock quill

MT2#

Motor power

550W

1

Dead Center

MT 2#

1

2

Change Gear

Z:21

1

3

Change Gear

Z:35

2

4

Change Gear

Z:40

1

5

Change Gear

Z:42

1

6

Change Gear

Z:45

2

7

Change Gear

Z:50

1

8

Change Gear

Z:60

1

9

Change Gear

Z:63

1

10

Change Gear

Z:65

1

11

Straight Driver

1

12

Cross Driver

1

13

Allen Wrench

3，4，5，6

1

14

Dead Wrench

8 - 10mm; 12 - 14mm; 17 - 19mm

1

15

Three-Jaw Chuck

125mm

1

16

Socket Wrench

M8

1

17

Washer

4mm 和 9mm

1

18

Oiling Can

100ml

1
