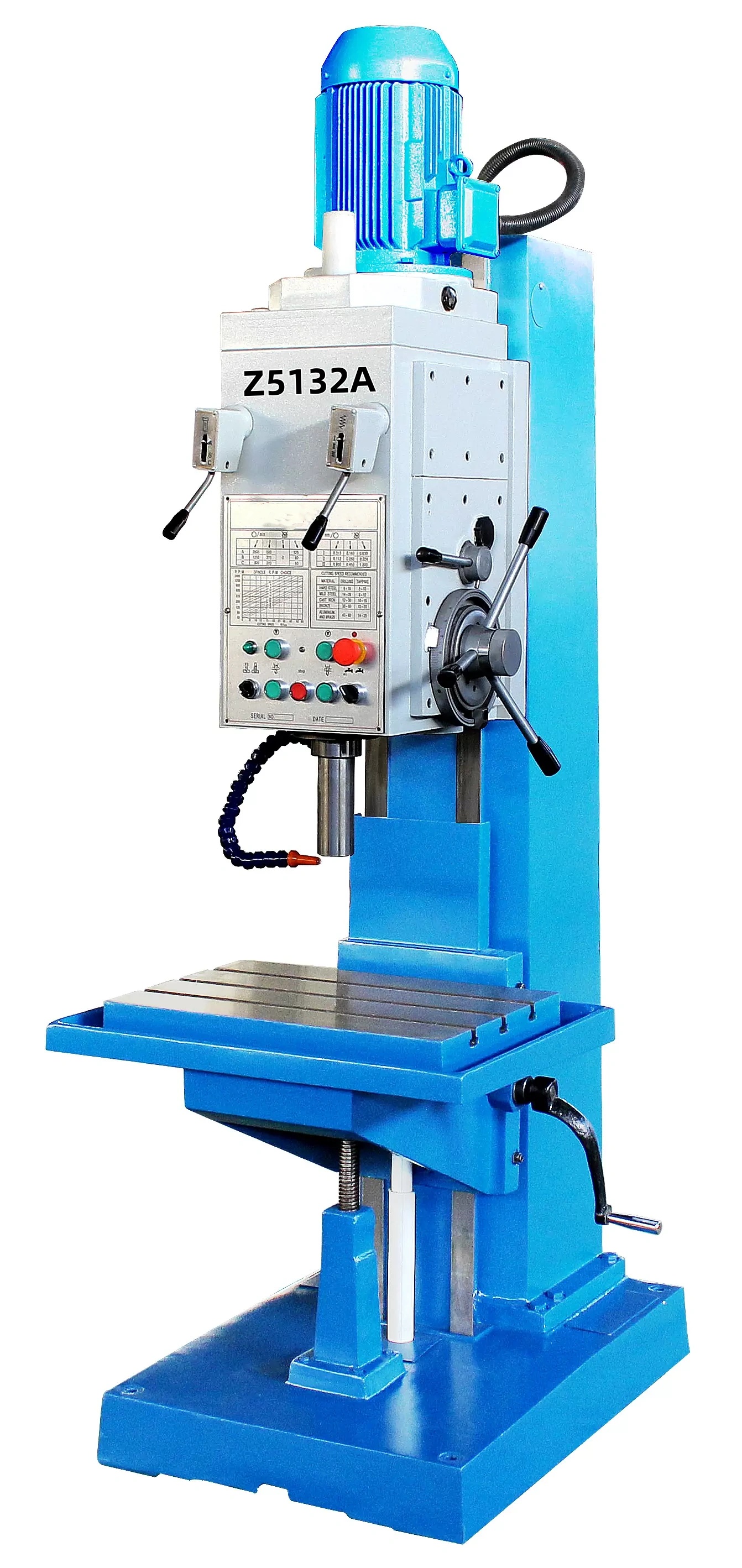

Feature:
· The box column drilling machines are the heavyweight.
· Lubrication gear head with quite operation
· High torque and drilling capacity
· Table and drill head can be positioned in height
· Rigid constructuion of table and base
· Mechanical spindle auto-feed, tapping function is available
· Widely spindle speeds and feeds provide wonderful machining function
· Main Schneider electrical components provide quality
· Rigid constructuion of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
| Model No. | Z5125A | Z5132A |
| Drilling capacity | 25mm | 32mm |
| Tapping capacity | M16 | M22 |
| Table capacity | 200kg | 200kg |
| Spindle taper | MT3 | MT4 |
| Spindle speeds | 50~2000rpm/9 | 50~2000rpm/9 |
| Spindle feed | 0.056~1.80mm/r (9) | 0.056~1.80mm/r (9) |
| Dsitance spindle to column | 280mm | 280mm |
| Dsitance spindle to tabel | 710mm | 680mm |
| Dsitance spindle to base | ~ | ~ |
| Spindle stroke | 200mm | 200mm |
| Drill head travel | 200mm | 200mm |
| Work table travel | 300mm | 300mm |
| Column diameter | ~ | ~ |
| Table size | 550×400mm | 550×400mm |
| T-slot of table | 14mm | 14mm |
| Working surface of base | ~ | ~ |
| T-slot of base | ~ | ~ |
| Net weigh | 950kg | 950kg |
| Gross weight | 1070kg | 1070kg |
| Feeding motor (work table) | ~ | ~ |
| Coolant pump | 0.09kw | 0.09kw |
| Main motor | 2.2kw | 2.2kw |
| Dimension of machine | 960x850x2340mm | 960x850x2340mm |
| Packing size | 2340×800×1390mm | 2340×800×1390mm |
| Standard accessories | Optional accessories | |
| LED work lamp | Keyless drill chuck | |
| Safety spindle cover | TQ 200 vice | |
| Coolant system | 58pcs clamping kits | |
| Tapping function | ||
| Automatic spindle feed | ||
| Drill chuck | ||
| Arbor | ||
| Tools |
