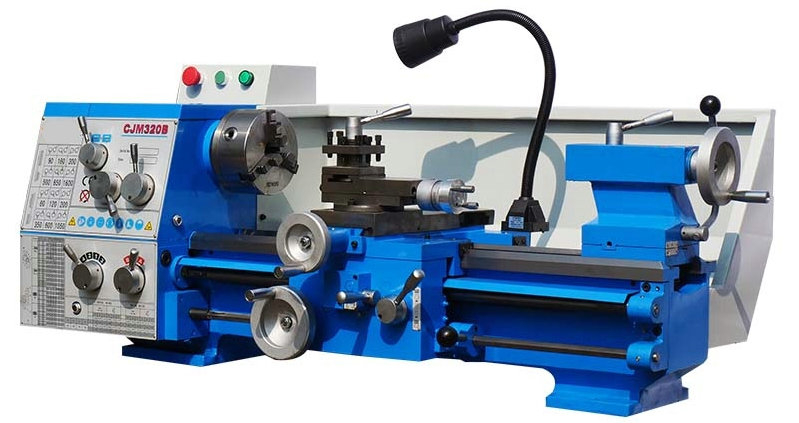

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
| Specifiction | CJM320Bx750 | |
| Max. swing over bed | 320mm | |
| Max. swing over cross slide | 190mm | |
| Max. length of workpiece | 750mm | |
| Spindle bore | 38mm | |
| Taper of hole in spindle | MT.5# | |
| Max. cross slide travel | 185mm | |
| Max. longitudinal stroke over tool carrier | 100mm | |
| Mertric thread range/kinds | 0.2~7.0mm/22 | |
| Inch thread range/kinds | 22/1~48.T.P.I/45 | |
| Module threads range/kinds | 0.2~3.5M.P/21 | |
| Module threads range/kinds | 8~120D.P/31 | |
| Longitudinal feed range | 0.1~1.4mm/r | |
| Cross feed range | 0.045~0.6mm/r | |
| Max. quill travel | 90mm | |
| Tailstock quill taper | MT.3# | |
| Step of spindle speed | 12 | |
| range of spindle speed | 60~1600rpm | |
| Motor power | 1.1kw | |
| N.W/G. W | 370/410kg | |
| Overall size(LxWxH) | 1520x700x600mm | |
| Packing size (LxWxH) | 1630x760x760mm | |
