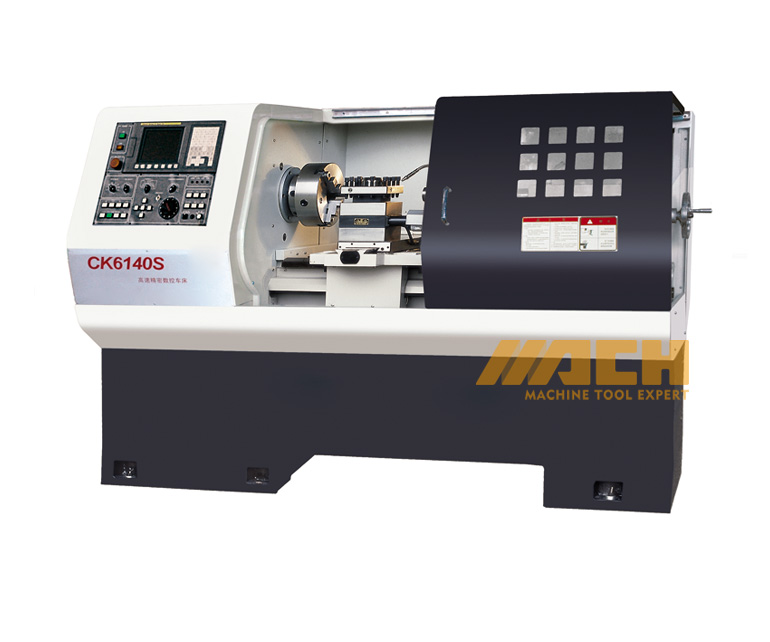

CNC Lathe Machine Model:CK6136S/CK6140S
| Quantity: | |
|---|---|
2.Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
3.The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
| ITEMS | CK6130S | CK6132S /CK6136S | CK6140S |
| Over bed | 300mm(12〞) | 360mm(14〞) | 400mm(15.7〞) |
| Over carriage | 135/100mm | 180/100mm | 225/150mm |
| Maximum turned length | 500 mm | 500/750/1000mm | 500/750/1000mm |
| Max. turning length | 460mm | 450/700/950 mm | 450/700/950 mm |
| Spindle nose | D4 or A2-5 | C5 | C6 |
| Spindle bore | 38 or 43mm | 40mm | 52mm |
| Cone hole diameter and taper of spindle hole | MT.No.5 | MT.No.5 | MT.No.6 |
| Steps of spindle speed(Manual) | Variable | ||
| Range of spindle speed | 200~3500r/min | 200~2800r/min | |
| Rapid feed for Axis Z | 10m/min | ||
| Rapid feed for Axis X | 8 m/min | ||
| Max. travel of Axis Z | 460mm(18〞) | 490/740/990 mm | |
| Max. travel of Axis X | 165/260mm | 215/295mm | 235/295mm |
| Min. input | 0.001mm | ||
| Tool post stations | Gang tool post or power tool post | 4-ways or 6-ways or gang tools | |
| Tool cross section | 16×16 mm | 20×20 mm | |
| External diameter | 50mm | 60mm | |
| Taper of bore | MT.No.3 | MT.No.4 | |
| Max. Traverse | 130 mm | 120 mm | |
| X/Z motor torque | 3.6/4.7Nm | 3.6/4.7Nm | |
| Power of main motor | 3KW(4HP) | 3.7KW(5HP) | 3.7KW |
| Power of cooling pump | 75W | ||
| Overall dimensions(L×W×H) | 1500×945×1380mm | (1870,2120,2370)×1200×1415mm | |
| Net weight | 1100㎏ | 1500,1700,1900㎏ | 1600,1800,2000㎏ |
2.Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
3.The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
| ITEMS | CK6130S | CK6132S /CK6136S | CK6140S |
| Over bed | 300mm(12〞) | 360mm(14〞) | 400mm(15.7〞) |
| Over carriage | 135/100mm | 180/100mm | 225/150mm |
| Maximum turned length | 500 mm | 500/750/1000mm | 500/750/1000mm |
| Max. turning length | 460mm | 450/700/950 mm | 450/700/950 mm |
| Spindle nose | D4 or A2-5 | C5 | C6 |
| Spindle bore | 38 or 43mm | 40mm | 52mm |
| Cone hole diameter and taper of spindle hole | MT.No.5 | MT.No.5 | MT.No.6 |
| Steps of spindle speed(Manual) | Variable | ||
| Range of spindle speed | 200~3500r/min | 200~2800r/min | |
| Rapid feed for Axis Z | 10m/min | ||
| Rapid feed for Axis X | 8 m/min | ||
| Max. travel of Axis Z | 460mm(18〞) | 490/740/990 mm | |
| Max. travel of Axis X | 165/260mm | 215/295mm | 235/295mm |
| Min. input | 0.001mm | ||
| Tool post stations | Gang tool post or power tool post | 4-ways or 6-ways or gang tools | |
| Tool cross section | 16×16 mm | 20×20 mm | |
| External diameter | 50mm | 60mm | |
| Taper of bore | MT.No.3 | MT.No.4 | |
| Max. Traverse | 130 mm | 120 mm | |
| X/Z motor torque | 3.6/4.7Nm | 3.6/4.7Nm | |
| Power of main motor | 3KW(4HP) | 3.7KW(5HP) | 3.7KW |
| Power of cooling pump | 75W | ||
| Overall dimensions(L×W×H) | 1500×945×1380mm | (1870,2120,2370)×1200×1415mm | |
| Net weight | 1100㎏ | 1500,1700,1900㎏ | 1600,1800,2000㎏ |
