Product Description

Product Description

Product Parameters

Specification	Unit	VMC1580	VMC1370	*VMC1275*	VMC1160	VMC855	VMC750
Table travel X/Y/Z	mm	1500/800/700	1300/700/700	1200/750/600	1100/600/600	800/550/550	700/500/500
Distance between spindle and table surface	mm	155-855	160-860	130-830	120-720	120-670	120-620
Spindle center to column surface	mm	855	740	830	650	575	560
Rapid feed speed X	m/min	24	24	24	24	36	36
Rapid feed speed Y	m/min	24	24	24	24	36	36
Rapid feed speed Z	m/min	20	18	20	20	32	32
Cutting feed rate	mm/min	1-8000	1-8000	1-8000	1-8000	1-8000	1-12000
Table size	mm	800*1600	700*1500	750*1400	600*1200	550*1000	500*900
Max. table load	kg	1500	1000	1000	800	500	400
T slot	mm	5-18-140	7-18-100	5-18-100	5-18-125	5-18-100	3-18-125
Spindle speed range	r.p.m	6000	8000	8000	8000	8000	8000
Spindle diameter	mm	155/190	150/155	150	150	150	120
Spindle taper		BT50	BT40/BT50	BT40	BT40	BT40	BT40
Main motor power	kw	15	11/15	11	11	7.5	5.5
Magazine capacity	T	24	24	24	24	24	24
Magazine type		Disc type	Disc type	Disc type	Disc type	Disc type	Disc type
Max. tool diameter	mm	105/200	105/200	80/150,80/130	80/150,80/130	80/150,80/130	80/150
Max. tool length	mm	300	300	300	300	300	300
Max. tool weight	kg	15	7	6/7	6/7	6/7	6/7
Positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005	±0.005	±0.005
Repeatability	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Weight	kg	15000	11500	8500	6600	5400	4200
Overall size	mm	400034003100	380032003000	350027002700	290024002800	280026502250	226027002450

Detailed Photos

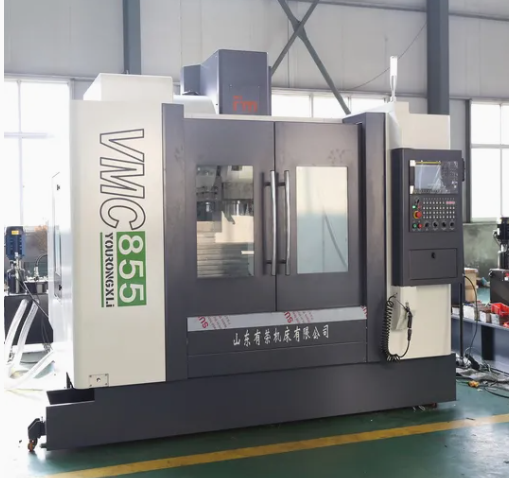

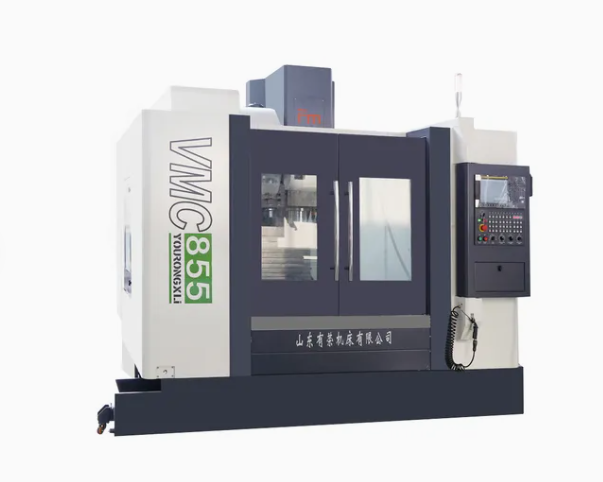

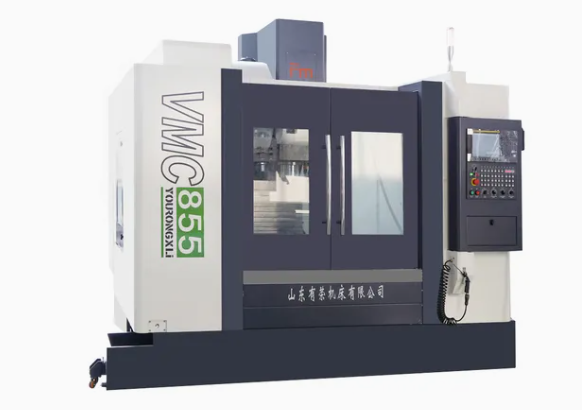

Vertical Machining Center 550*1000 Table Size High Stability

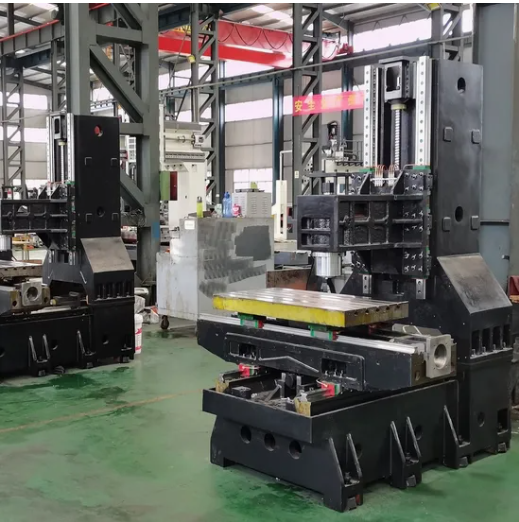

√ resin sand castings, after aging treatment, inside with mesh stiffeners, ensure good stability of structure

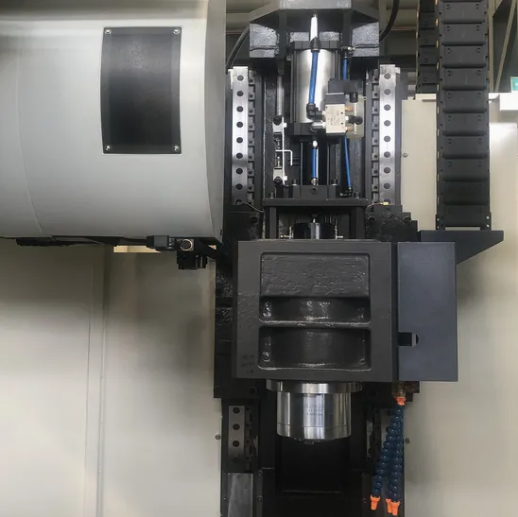

√ 3-axis roller linear guideways, Z-axis designed with six sliding blocks, high speed, high rigidity, low friction, low noise, long service life

√ 3-axis large pitch ball screws, pre-drawing treatment, good rigidity, good accuracy, high speed

√ direct connection structure between servo motors and ball screws, ensures positioning accuracy

√ Taiwan brand spindle unit, P4 spindle bearings, high speed, high rigidity, good accuracy

√ mandatory automatic lubrication system for guideways and ball screws, ensures long service life

√ full protection guard, disc type tool magazine are standard

Main Parts Brand

No.	Item	Brand
1	Spindle Unit	Taiwan ROYAL/CELLS
2	Linear guideway	Taiwan HIWIN
3	Pneumatic unit	Taiwan Airtac
4	X axis lead-screw	THK
5	Y axis lead-screw	HIWIN
6	Bearings used on the ball screw	NSK
7	Central lubrication	BAOTN
8	Electrical cabinet cooling	Air-conditioning unit
9	Electronic component	Schneider/ABB
10	Coolant	Taiwan
11	Nut	Taiwan

Certifications

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Machine packed with plywood case and steel pallet.
