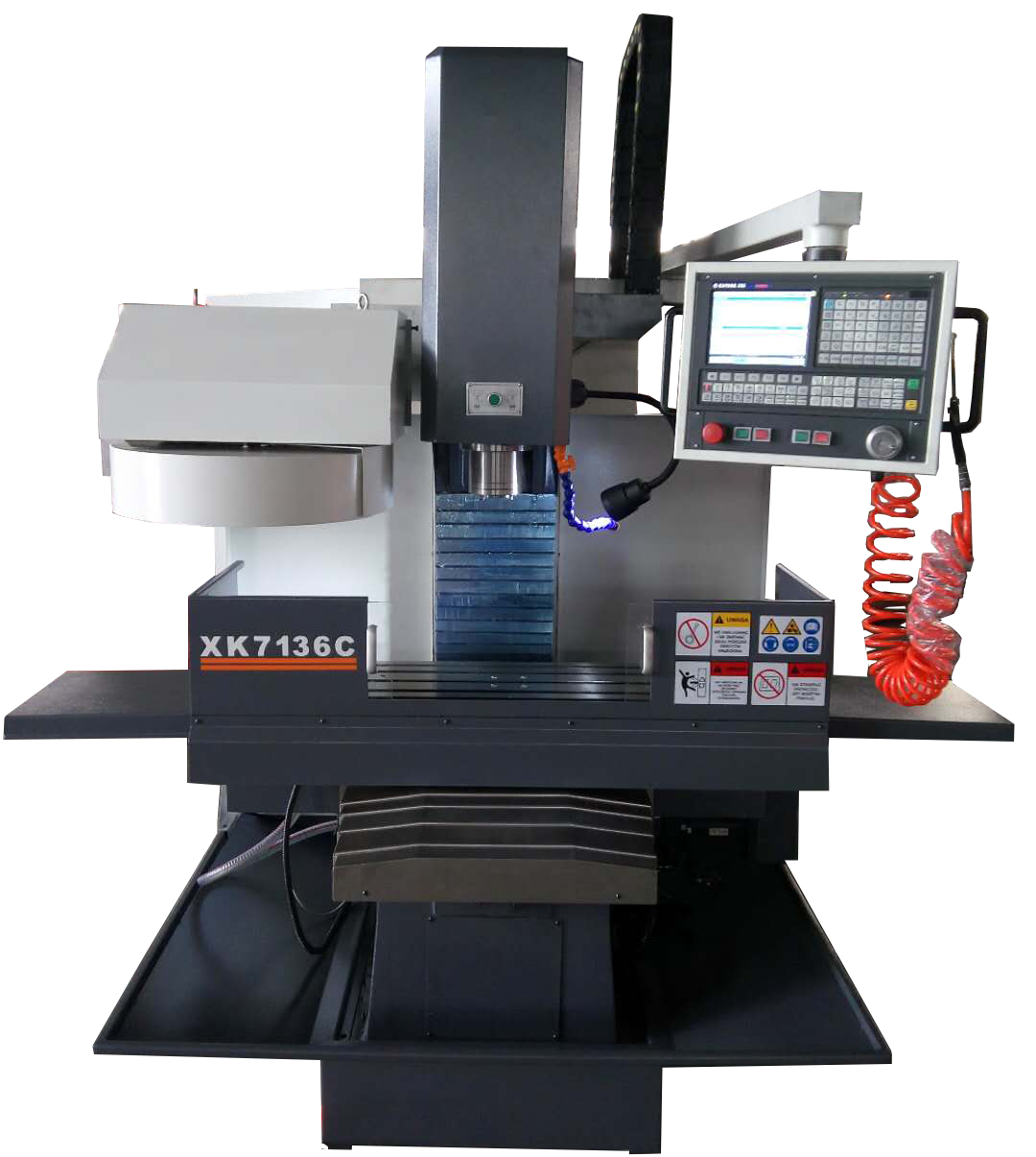

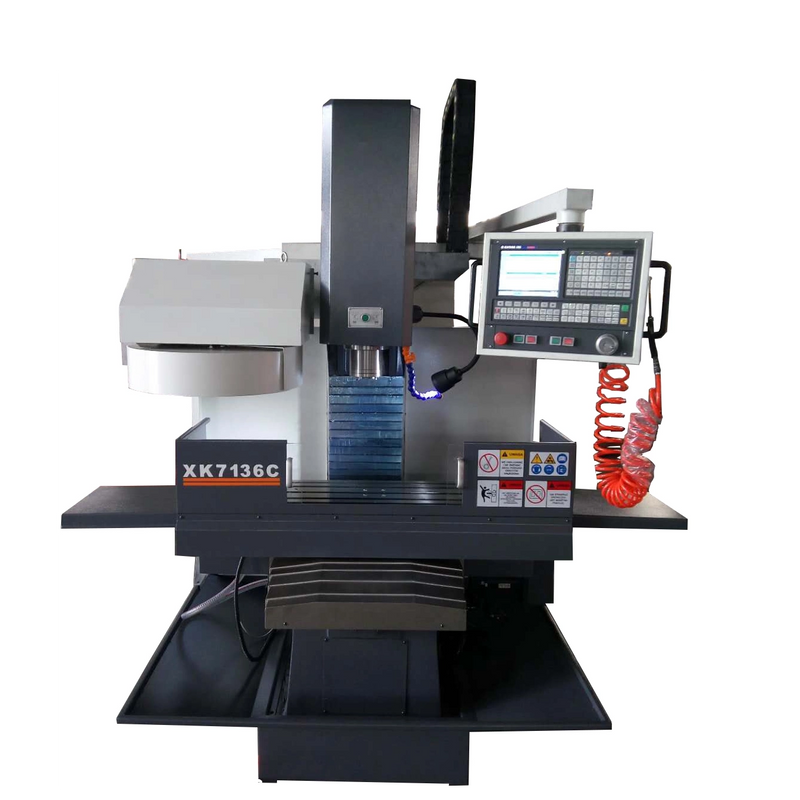

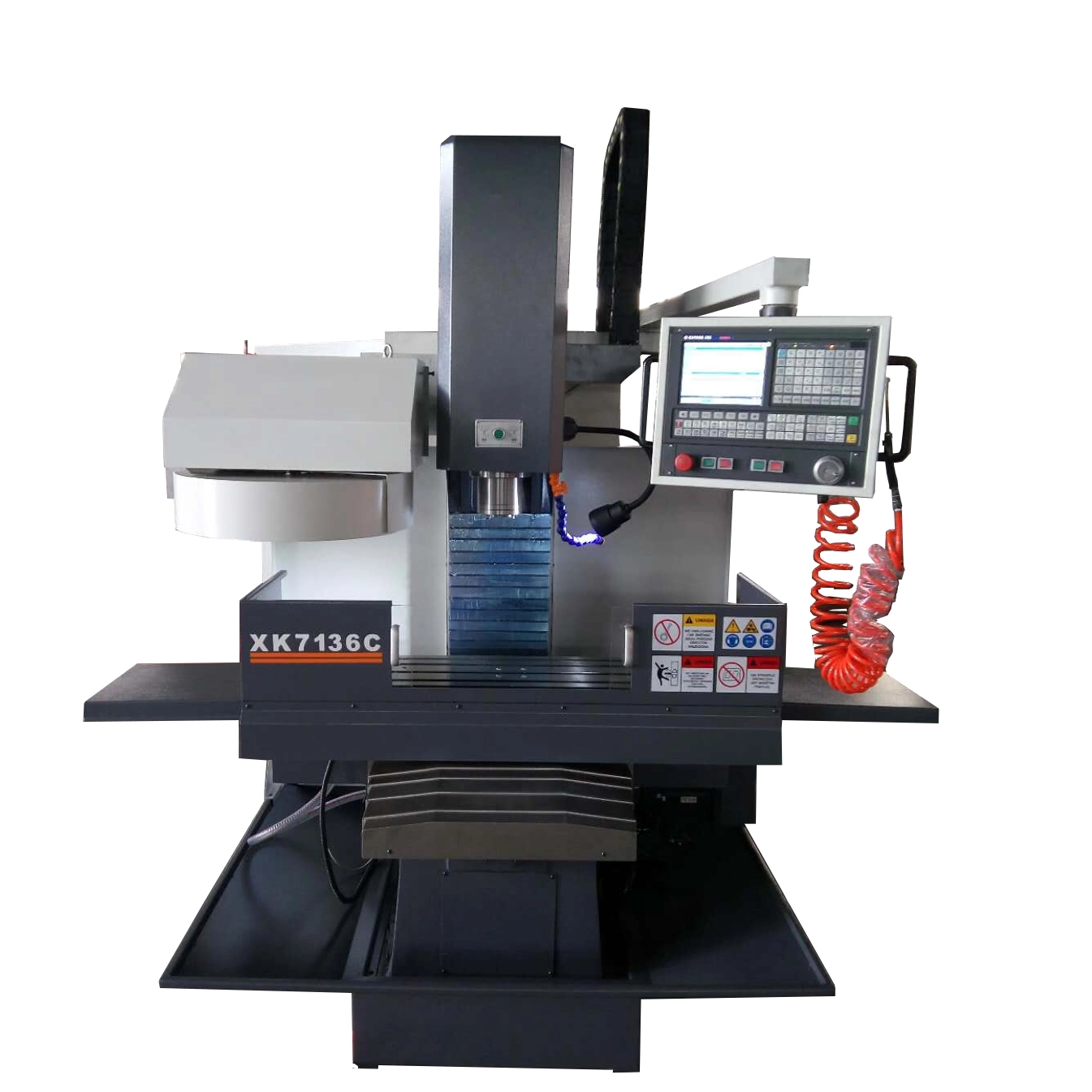

XK7124 XK7126 XK7132A XK7136C CNC Milling Machine
| Quantity: | |
|---|---|
XK7124 XK7126 XK7132A XK7136C CNC Milling Machine
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other
XK7124 XK7126 XK7132 XK7136C CNC Milling Machine
Product main technical specifications:
CNC milling machine | XK7124 | XK7126 | XK7132A | XK7136C |
Table size | 800x240 | 800X260mm | 800x320 | 1250x360 |
Max. table load | 200kg | 200kg | 300kg | 400kg |
T slot qty-width*distance | 3-14x75 | 3-14x75 | 3-14x110 | 3-14x80 |
spindle speed | 60-8000 r p m | 60-8000 r p m | 60-8000 r p m | 80-6000 r p m |
spindle nose to table surface | 60-460 | 125-500mm | 125-520mm | 120-580 |
Spindle center to Column surface | 300 | 315mm | 360 | 460 |
Spindle taper | BT30 | BT30/BT40 | BT30/BT40 | BT40 |
Main motor power | 3.7kw(servo) | 3.7kw (servo) | 3.7kw (servo) | 3.7kw (servo) |
X axis travel | 400mm | 460mm | 500mm | 900mm |
Y axis travel | 240mm | 300mm | 320mm | 400mm |
Z axis travel | 400mm | 400mm | 400mm | 500mm |
X/Y/Z axis rapid feed | 6m/min | 8/8/6m/min | 8/8/6m/min | 5/5/4m/min |
Positioning accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
Repeatabeility accuracy | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm |
Net Weight | 1800kg | 22000 kg | 2650kg | 3000kg |
Overall Dimension | 1840x1520x2000 | 1900X1620X2000 | 1900x1800x2100 | 2220x1850x2250 |
XK7124 XK7126 XK7132 XK7136C CNC Milling Machine
Standard configuration:
1.The CNC system: SINUMERIK 808D
2.The knife: The famous Taiwan bamboo hat knife.
3.The unclamping cylinder: Taiwan Shangpin
4.The weight: Wuxi Xieqing nitrogen balance
5.The high quality castings: Resin sand casting
6.The spindle: Taiwan famous high speed spindle
7.The screw: HIWIN
8.The bearing: Japan NTN
9.The Internal protection: Total or half protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
