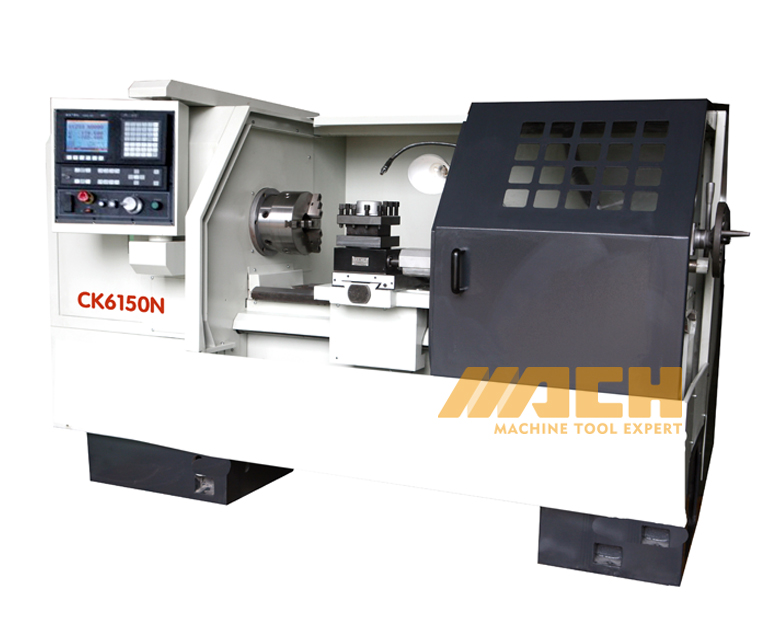

CNC Lathe Machine Model:CK6140N/CK6150N
| Quantity: | |
|---|---|
2.Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3.Both chuck and tailstock are supplied with hydraulic or manual type.
4.The spindle system is high in the rigidity and accuracy.
| ITEMS | CK6140N | CK6150N |
| Max. swing over bed | 440mm | 500mm |
| Max. swing over carriage | 210mm | 295mm |
| Width of bed | 405mm | |
| Maximum turned length | 1000mm | 1000/1500mm |
| Max. turning length | 850mm | 850/1350mm |
| Spindle nose | A2-6 | D8 |
| Spindle bore | 56mm | 80mm |
| Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 |
| Steps of spindle speed(Manual) | Variable | 2(variable within each step) |
| Range of spindle speed | 450~2800 r/min | 100~500,400~2000r/min |
| Rapid feed for Axis Z | 10m/min | |
| Rapid feed for Axis X | 8 m/min | |
| Max. travel of Axis Z | 880mm | 900/1400mm |
| Max. travel of Axis X | 290mm | 310mm |
| Min. input | 0.001 mm | |
| Tool post stations | 4-ways | |
| Tool cross section | 25×25 mm | 32×32 mm |
| External diameter | 75mm | |
| Taper of bore | MT.No.5 | |
| Max. Traverse | 150mm | |
| X/Z motor torque | 4.7/7Nm | 7/9.5Nm |
| Power of main motor | 5.5 KW | 7.5 KW |
| Power of cooling pump | 90W | |
| Overall dimensions(L×W×H) | 2630×1400×1550mm | 2530×1400×1600mm |
| Net weight | 2700㎏ | 2850㎏ |
