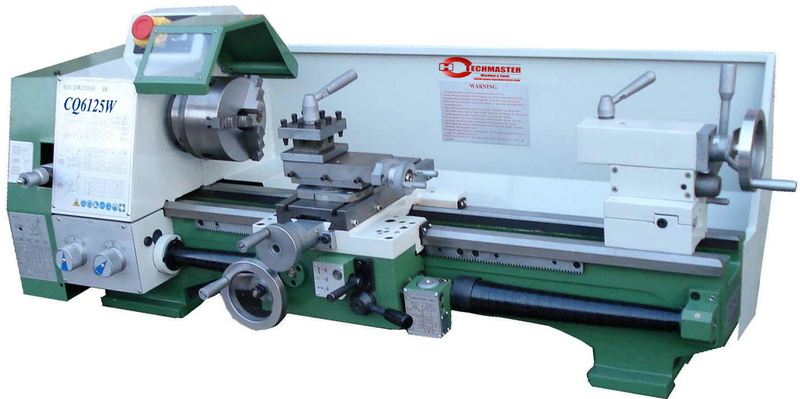

| SPECIFICATION | CQ6125W 550MM (750MM) |
| Max. turning diameter over bed | 250mm |
| Max. length of work piece | 550(750mm) |
| Max. swing diameter over tool post | 140 mm |
| Spindle bore | 21mm |
| Spindle taper | MT. 3 |
| Metric threads available | 15 |
| Inch threads available | 27 |
| Metric pitches | 0.1~2.5mm |
| Inch pitches | 8~56 /n″ |
| Longitudinal-feed on spindle tool post | 0.04~0.56mm/r |
| Cross-feed on spindle tool post | 0.02~0.42mm/r |
| Max. travel of tailstock sleeve | 65mm |
| Tailstock sleeve taper | MT. 2 |
| Spindle speeds | Belt drive |
| Spindle speeds range | 125~2000r/mim |
| Motor | 750W/ 400V /50HZ (230V/ 50HZ) |
| Net weight (without base) | 180KGS |
| Bare machine size (L× W× H) | 1200× 650× 560mm(140X650X560mm) |
