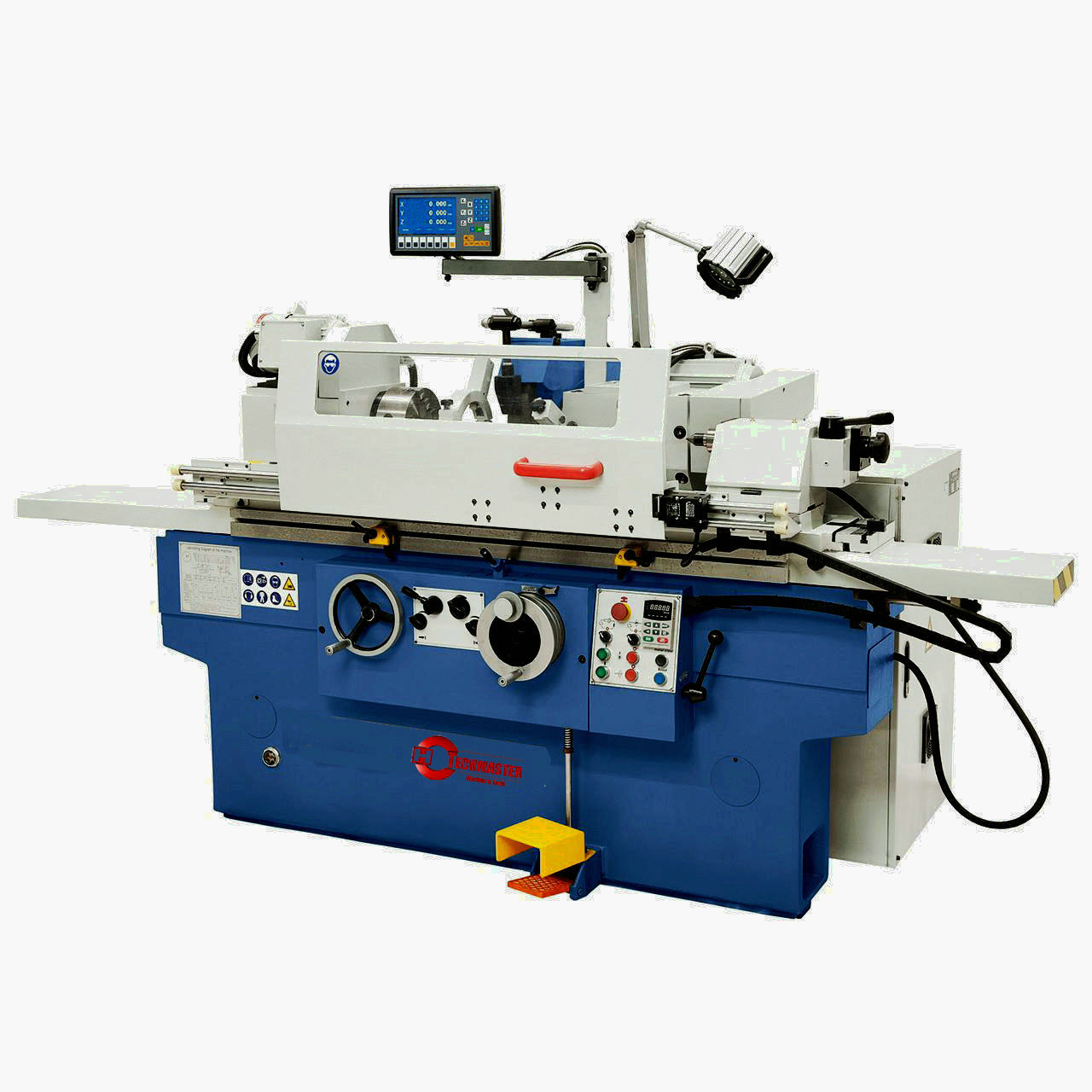

CYLINDRICAL GRINDER URS1000N

The URS 1000 N universal cylindrical grinding machine is suitable for external cylindrical grinding of workpieces up to 320 mm diameter. Part of the standard equipment is the internal grinding device, increasing the range of applications significantly. A popular model for machine construction, mould and tool making and production of small series. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel Stepless feed adjustments with the option of a programmable hold time at the end of each table movement Hydraulic or manual repositioning of grinding spindle stock Guideways in x- and y-axis are precisely constructed and hand-polished Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide
  • URS1000N

Availability:
Quantity:

Distance between centers     1000 mm


Center height         180 mm


Outside grinding diameter     8 - 320 mm


Max. workpiece weight     150 kg

 Inside grinding diameter with rest       35 - 100 mm


Inside grinding diameter without rest   30 - 100 mm


Inside grinding depth max.       125 mm


Table tilting range max.          +3° to -7°

Table longitudinal travel max.      1000 mm


Table feed       0,1 to 4 m/min


Man. Table travel / hand turn     6 mmHeadstock





 Spindle speed     25 - 220 rpm


Spindle taper  MT 4


Tilting range spindle  +90°


Grinding headstock





Sanding disc  400 x 50 x 203 mm


Spindle speed  1670 rpm


Speed inside grinding spindle  10000 rpm


Tilting range grinding headstock  +/-30°


Travel of grinding head  180 mm


Scale division  0,0025 mm


Rapid feed, hydraulic  50 mm/min.


Tailstock





Taper of tailstock sleeve  MT 4


Travel of tailstock sleeve  30 mm


Motor power


Sanding spindle  5,5 kW


Working spindle  1,5 kW


Inside grinding spindle  1,1 kW


Machine dimension (W x D x H)  3700 x 1900 x 1500 mm


Weight  3700 kg



standard accessories

2-axis digital readout

Grinding wheel

Grinding wheel flange

3-jaw chuck diam. 200 mm

2 pcs. open rest

Closed rest

Inside grinding device

LED machine light

Balancing stand

Balancing arbor

Frequency inverter

2 dead centers

Measuring plate

Coolant device

Splash guard front and back

Grinding wheel dresser

Workpiece carrier

Tools
