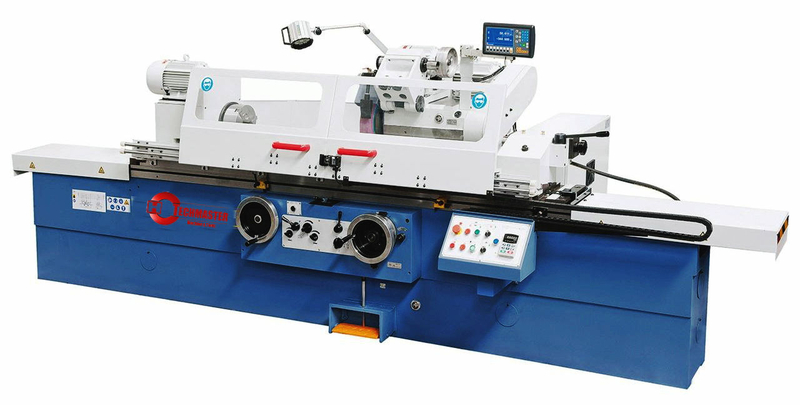

CYLINDRICAL GRINDER URS1500 N

The URS 1500 N universal cylindrical grinding machine is suitable for external cylindrical grinding of workpieces up to 320 mm diameter. Part of the standard equipment is the internal grinding device, increasing the range of applications significantly. A popular model for machine construction, mould and tool making and production of small series. When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel Stepless feed adjustments with the option of a programmable hold time at the end of each table movement Put grinding headstock into start position manually by handwheel or hydraulically Hydraulic or manual repositioning of grinding spindle stock Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide
