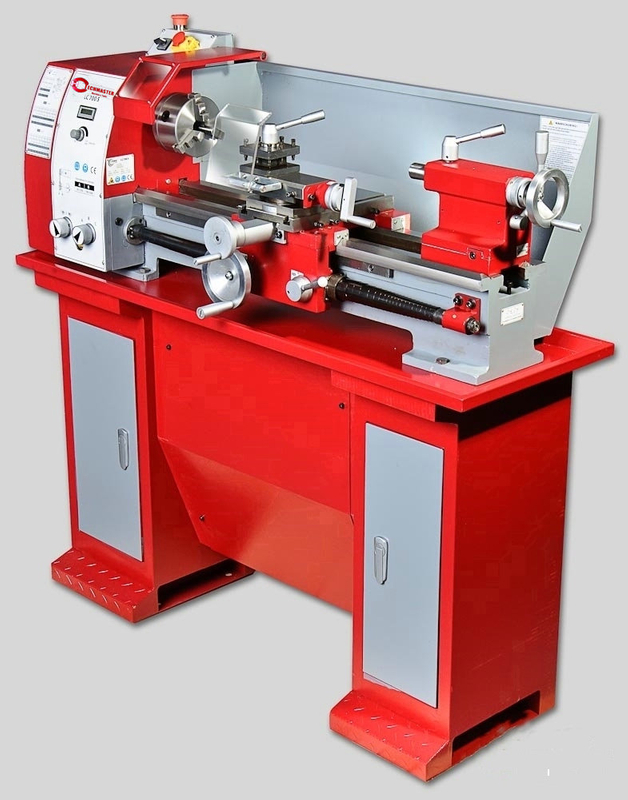

| MODEL | D280V |
| Specifications | |
Distance between centers | 700 mm |
Swing over bed | 280 mm |
Swing over cross slide | 165 mm |
Width of bed | 180 mm |
Taper of spindle bore | MT4 |
Spindle bore | 26 mm |
Number of spindle speeds | Variable Speed |
Range of spindle speeds | 50-2000 rpm |
Range of longitudinal feeds | 0.07-0.20 mm/r |
Range of inch threads | 8-56 T.P.I |
Range of metric threads | 0.4-3.5 mm |
Top slide travel | 80 mm |
Cross slide travel | 140 mm |
Tailstock quill travel | 80 mm |
Taper of tailstock quill | MT2 |
Motor | 1.1 kw (DC) |
Packing size | 1400x680x700 mm |
Net weight | 190 kg |
