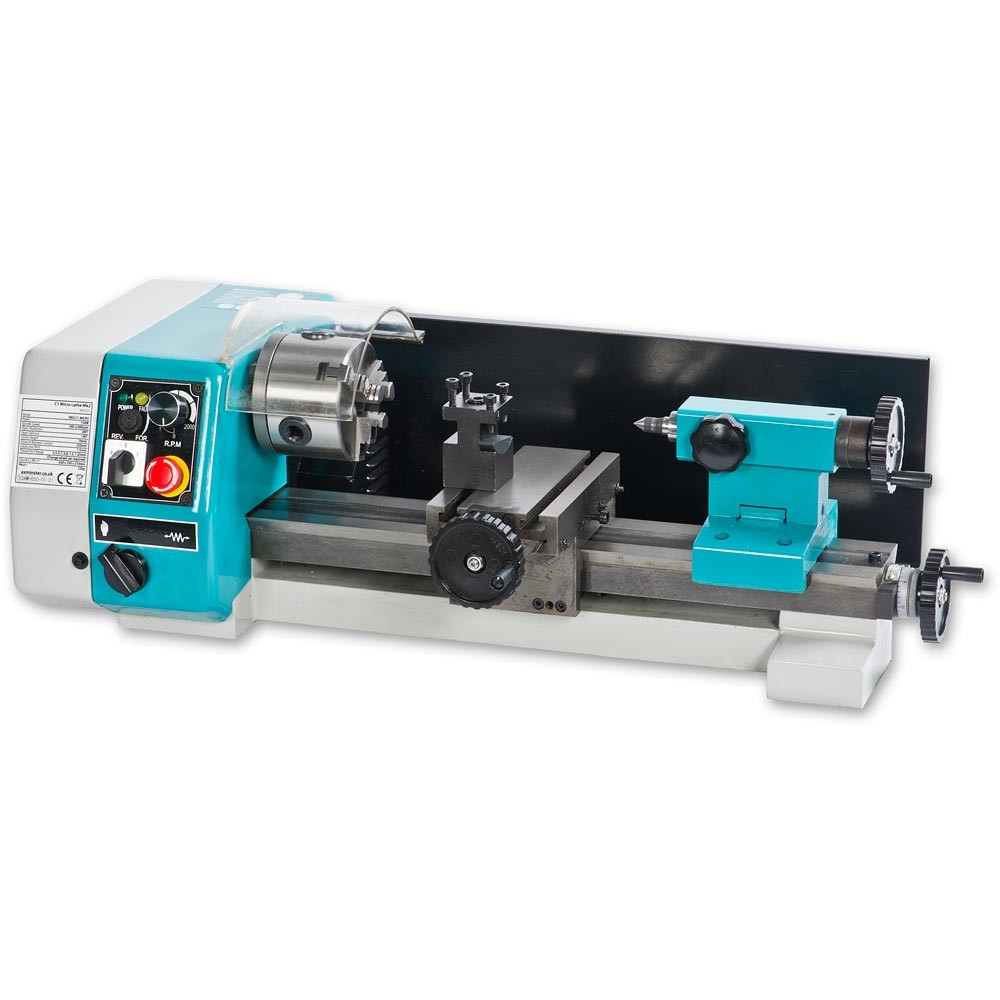

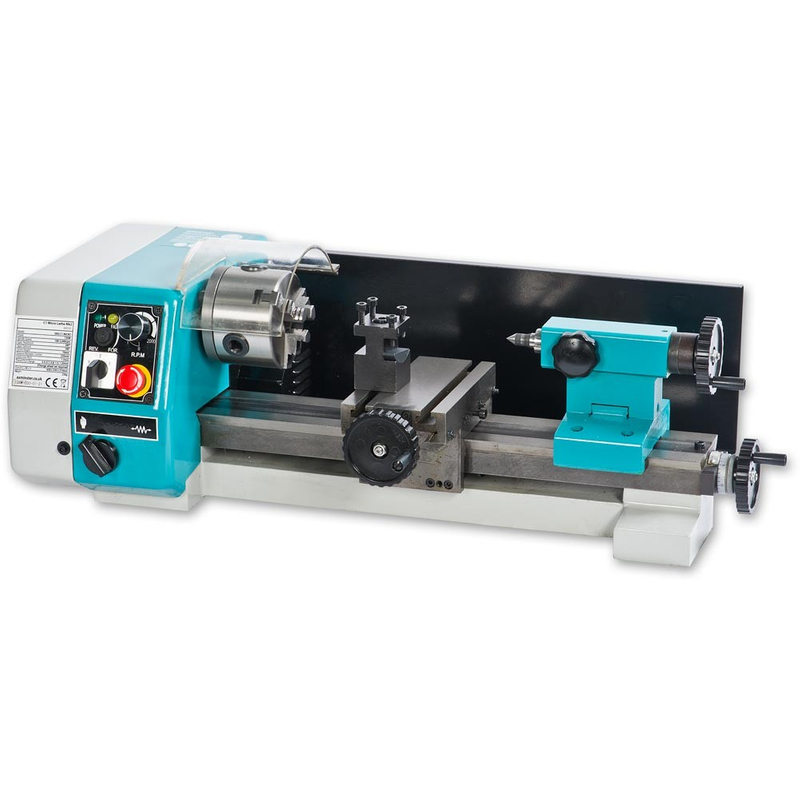

mall in size yet packed full of features, this miniature lathe could provide the perfect introduction to those wanting to have a first try at metal turning. The machine is small enough to fit into the corner of a workshop and is light enough to be truly portable. The construction is predominantly of cast iron and steel. The capacities, 140mm diameter and 250mm between centres, are surprisingly large for a machine of this overall size. Features of note are the electric variable speed control, manual or powered lead screw feed and an extensive range of accessories. The lathe comes supplied with 80mm diameter 3-jaw self-centring chuck, tailstock centre and service tools. Maximum tool shank size is 8mm. This micro lathe is the ideal entry level machine that will not burn a huge hole in your pocket
Specification
Centre Height
70mm

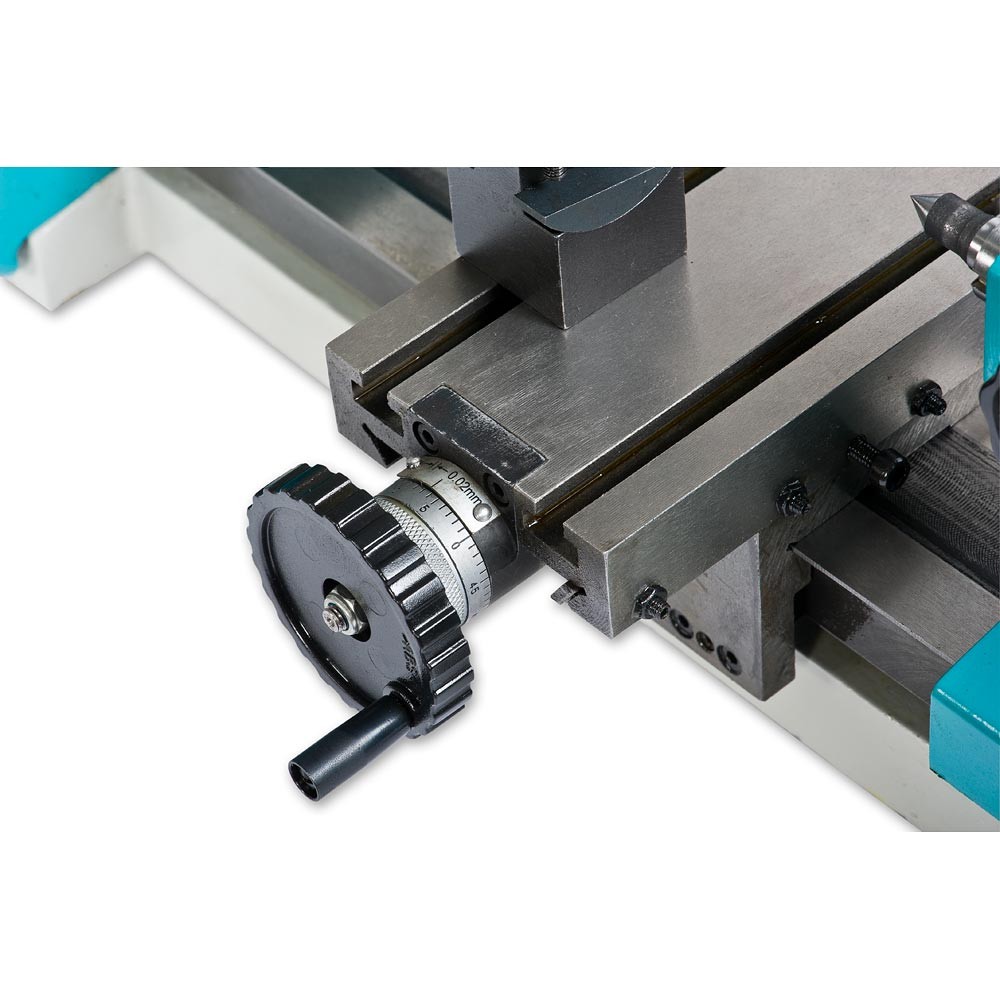

Cross Slide Travel
50mm
Distance Between Centres
250mm
Leadscrew Pitch
1.5mm
Max Diameter over Bed
140mm
Model
SIEG C1 MICRO
Nett Weight
22kg
Overall L x W x H
630 x 330 x 210mm
Power
150W
Rating
Model Engineer
Spindle Bore
10.5mm
Spindle Speed
100-2,000rpm
Thread Pitch Range
0.5, 0.7, 0.8, 1.0, 1.25mm (Change wheel set required)
Headstock Taper
2MT

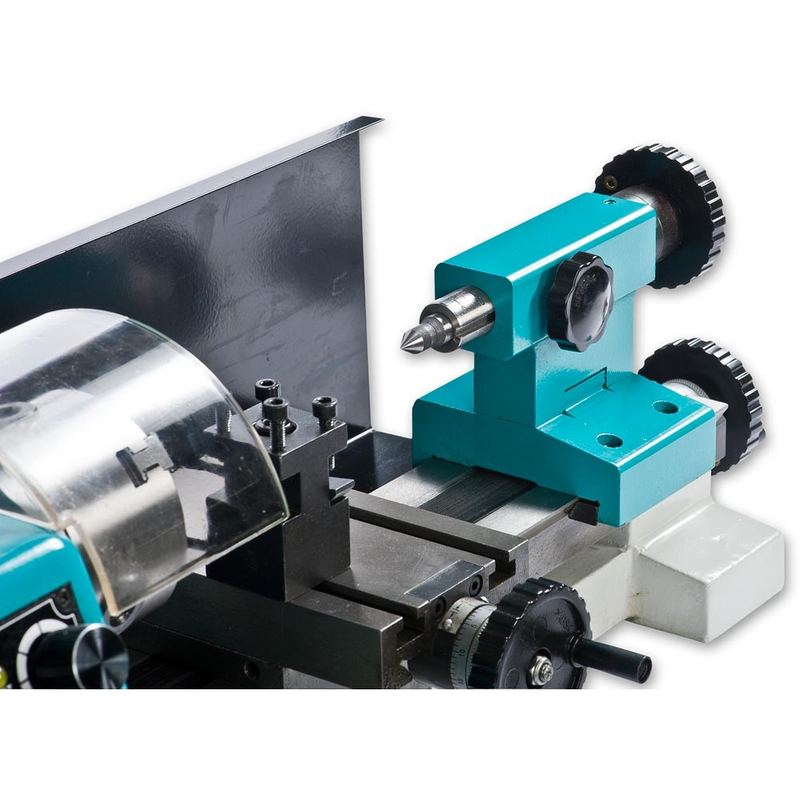

Tailstock Taper
1MT
Perfect introduction to metal turning
Small and lightweight, fits anywhere
Cast iron and steel construction
Capacity 140mm diameter, 250mm between centres

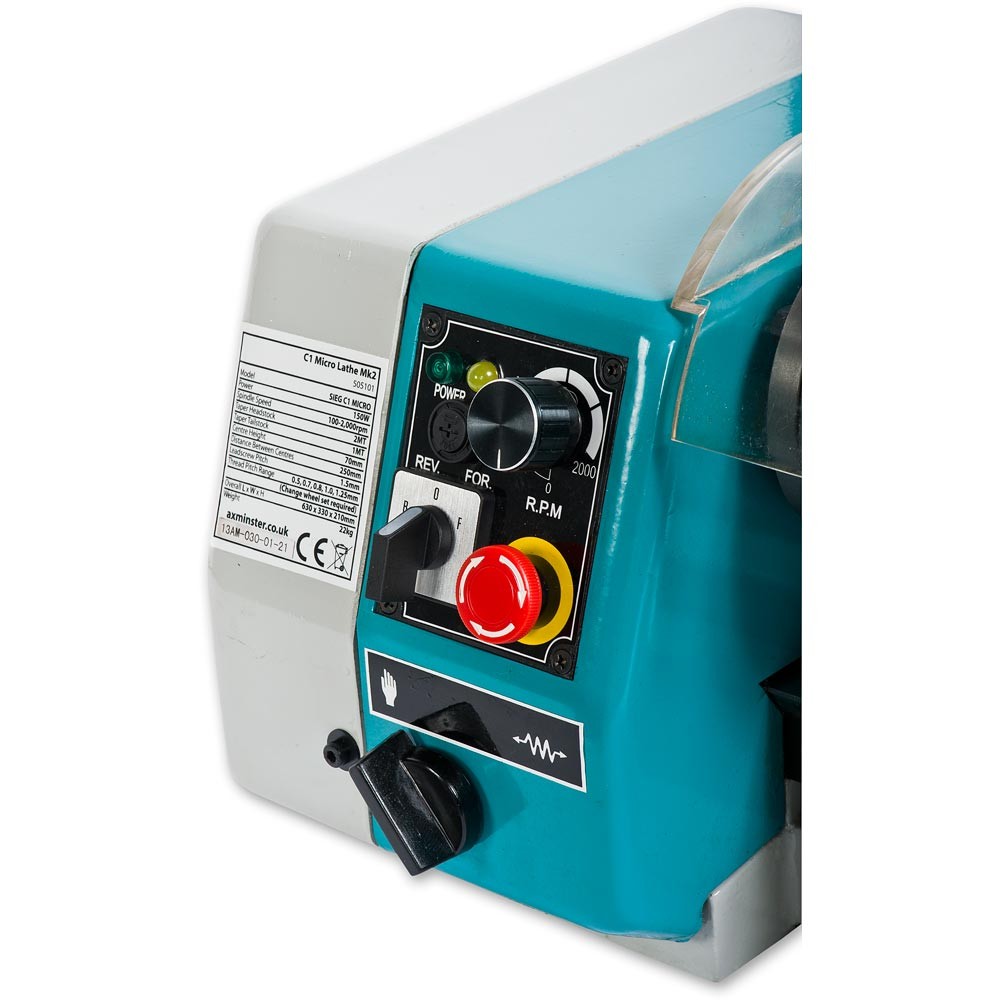

Electric variable speed control
Manual or powered lead screw feed
Extensive range of accessories

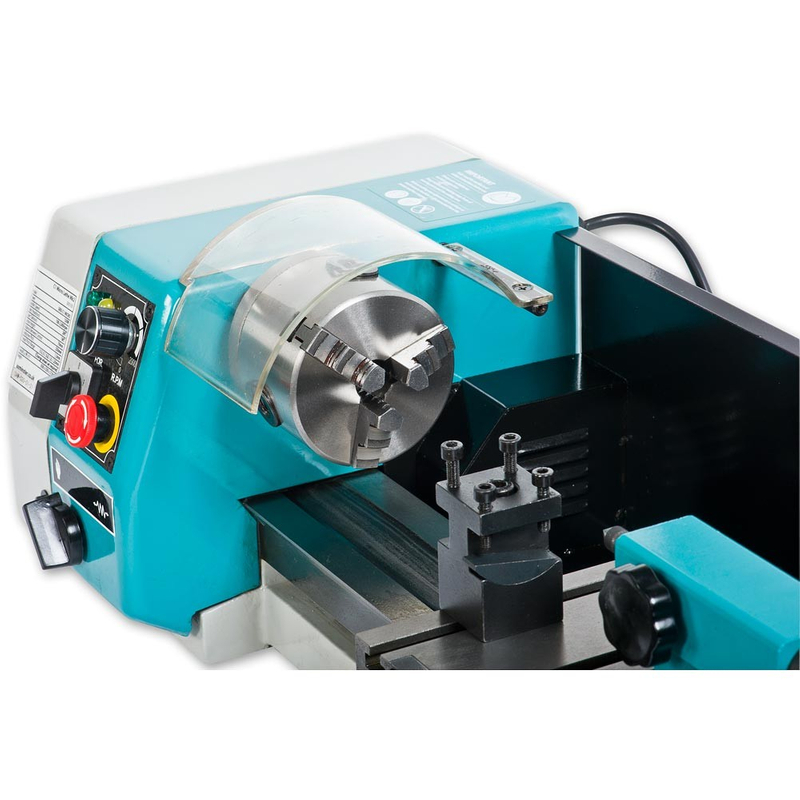

80mm diameter 3-jaw self-centring chuck
