Smaller capacity, high quality lathe suitable for model engineering projects
125-2,000rpm 6 ratio stepped pulley spindle speeds
Metric thread cutting abilities
Thread pitch selected using change wheels
Integral splash guard
Full range of accessories available

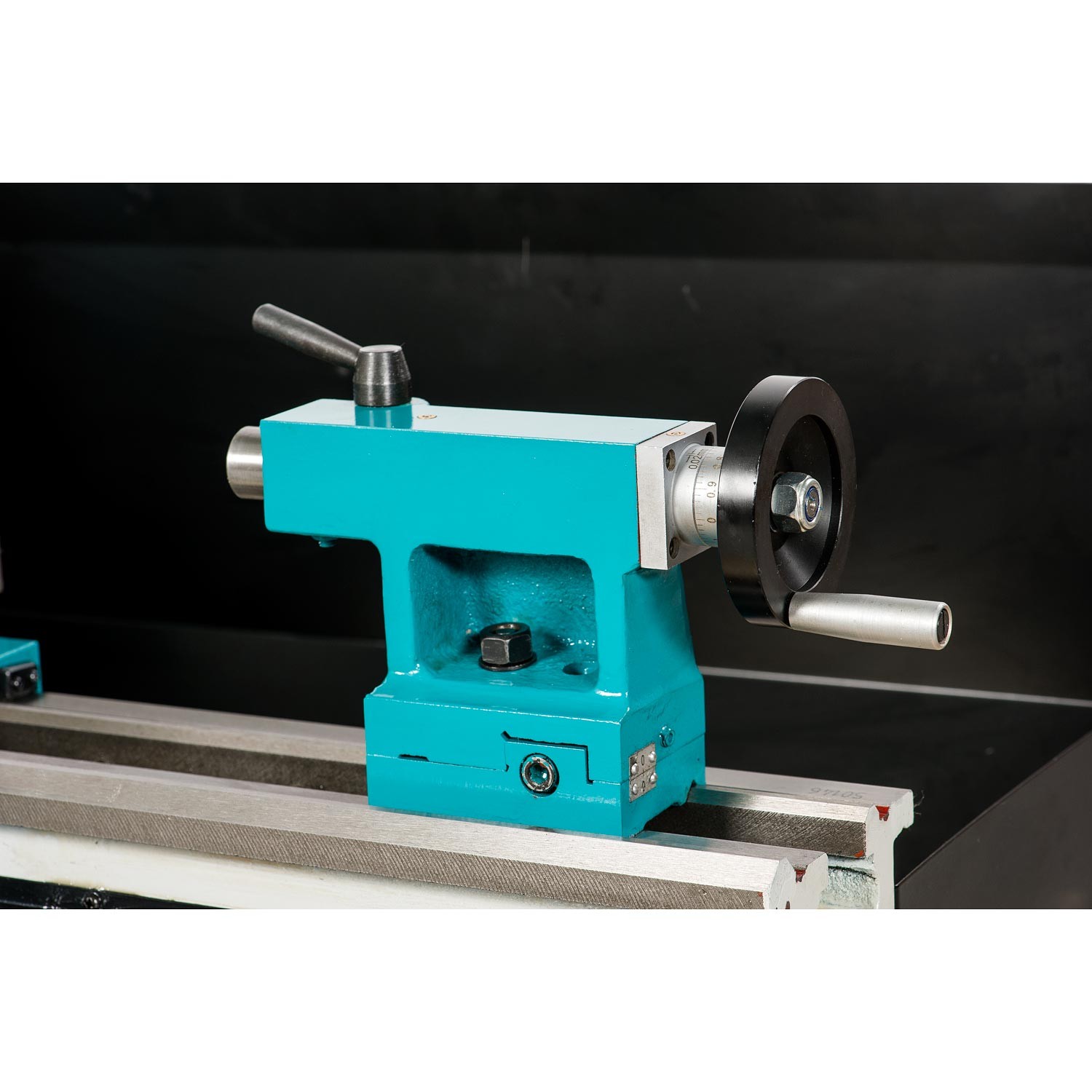

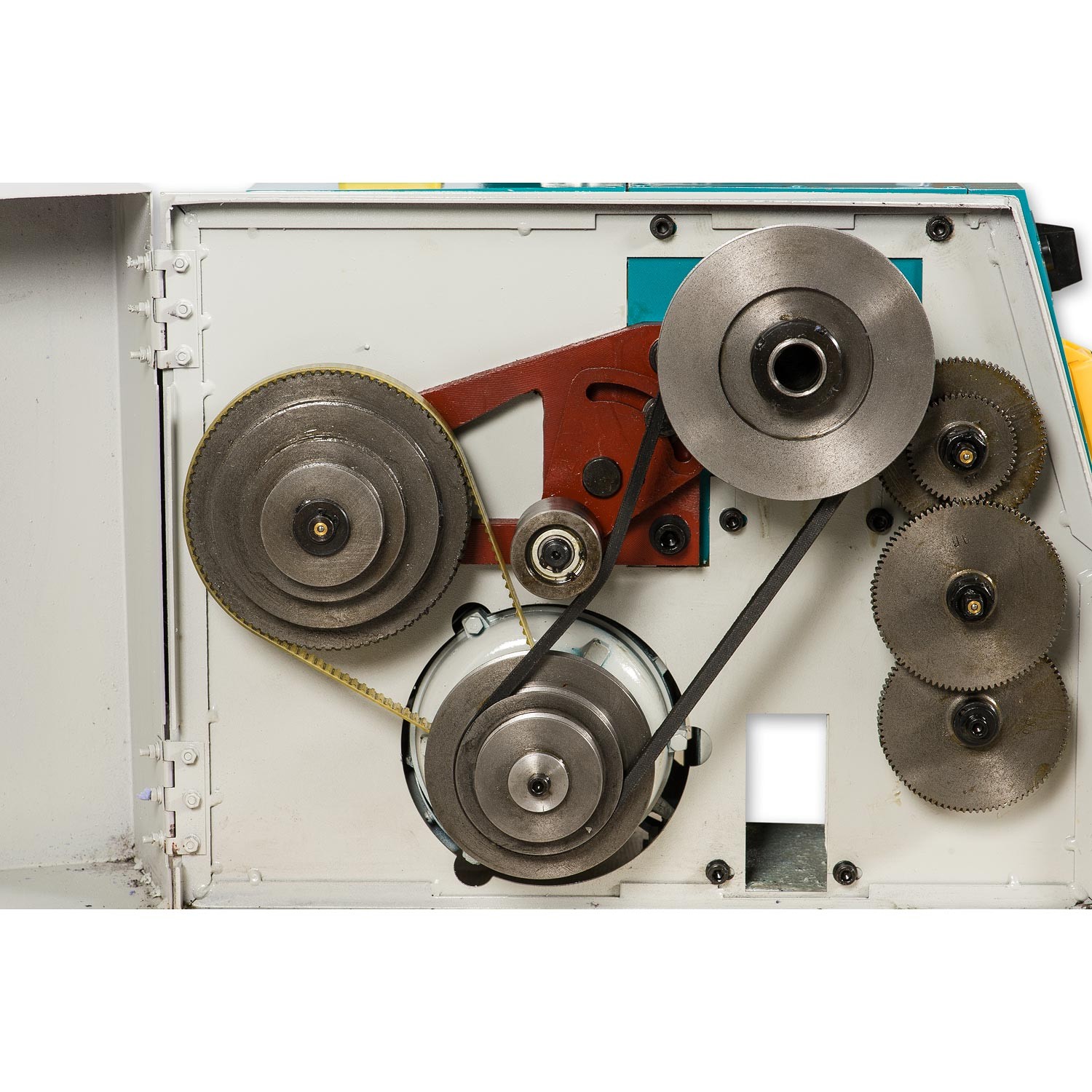

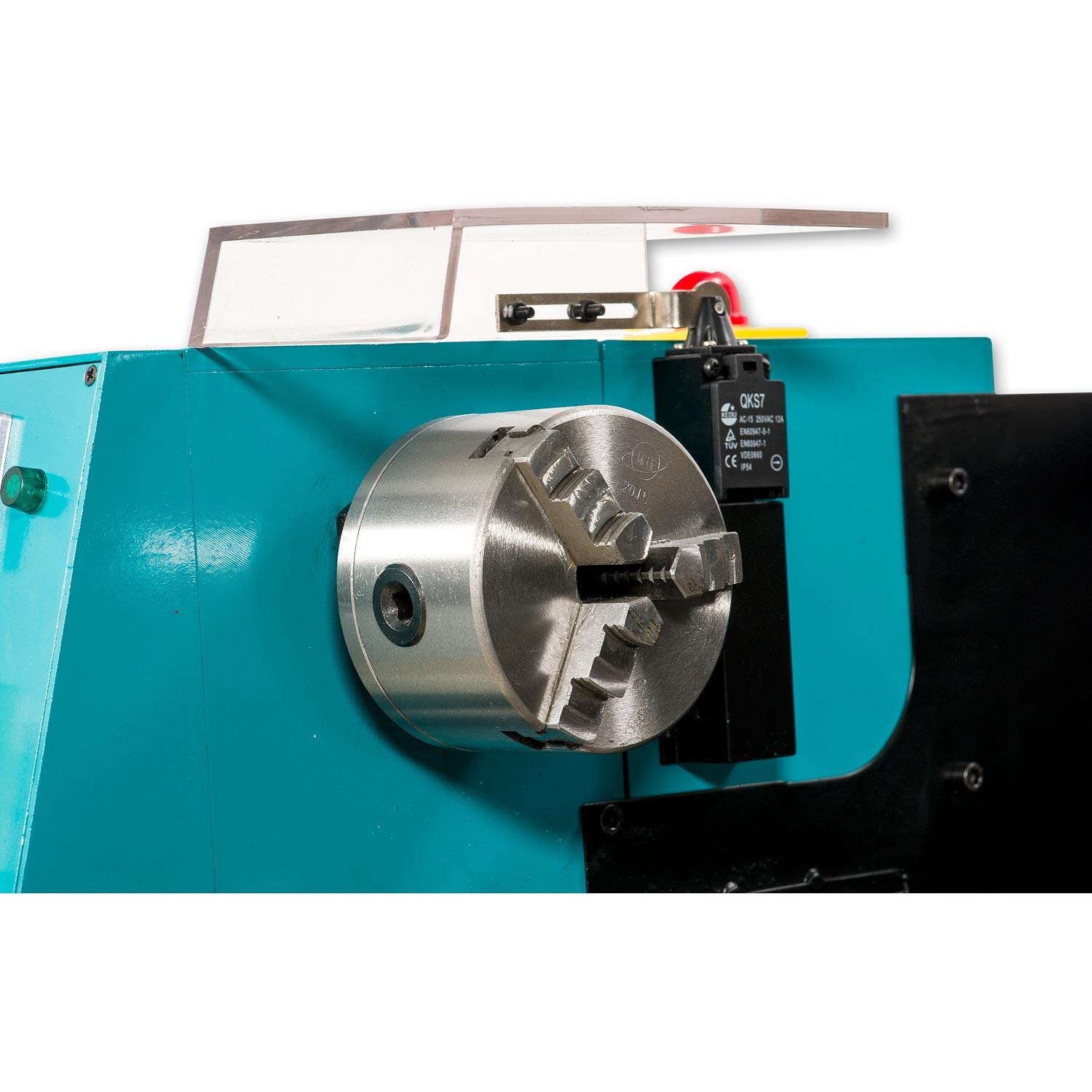

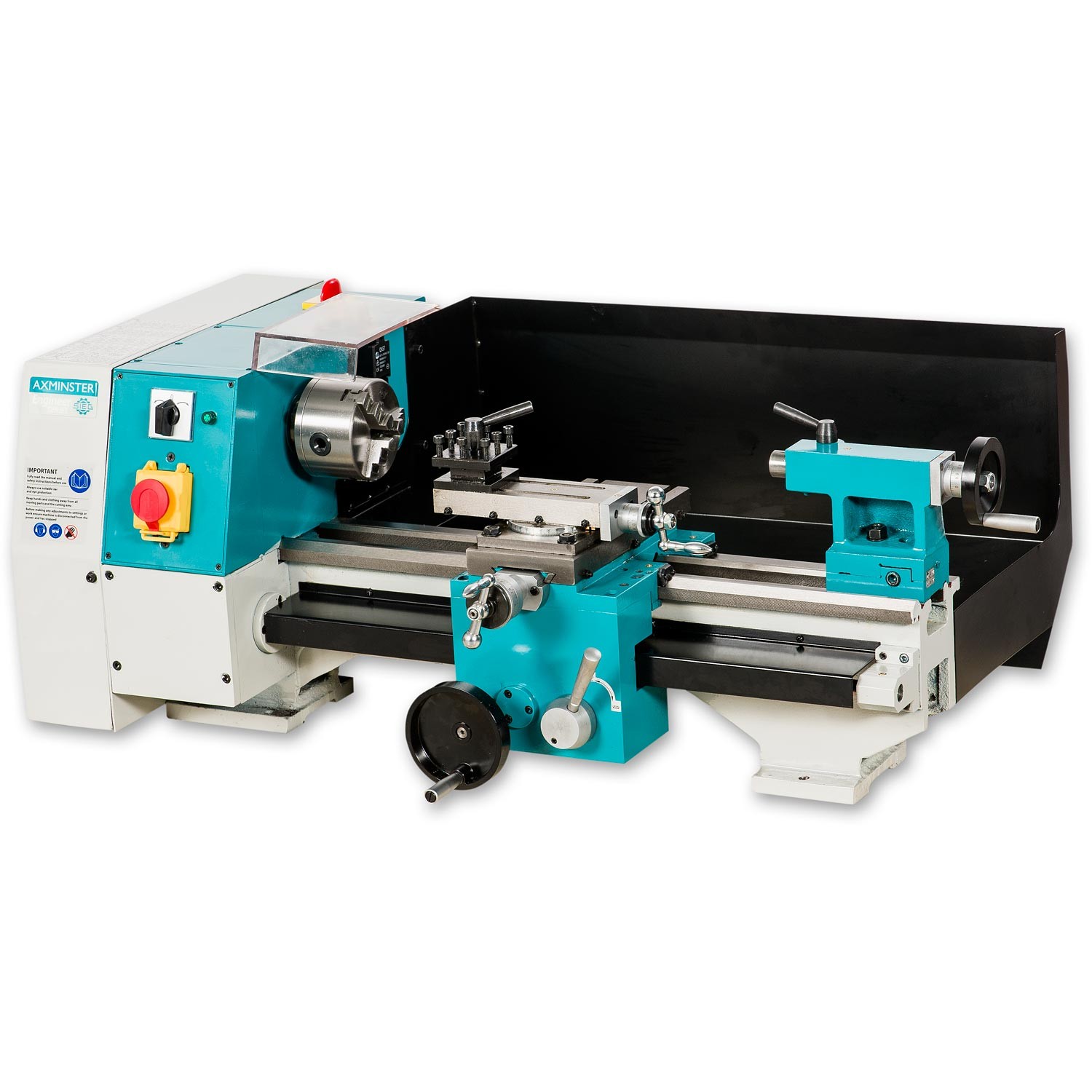

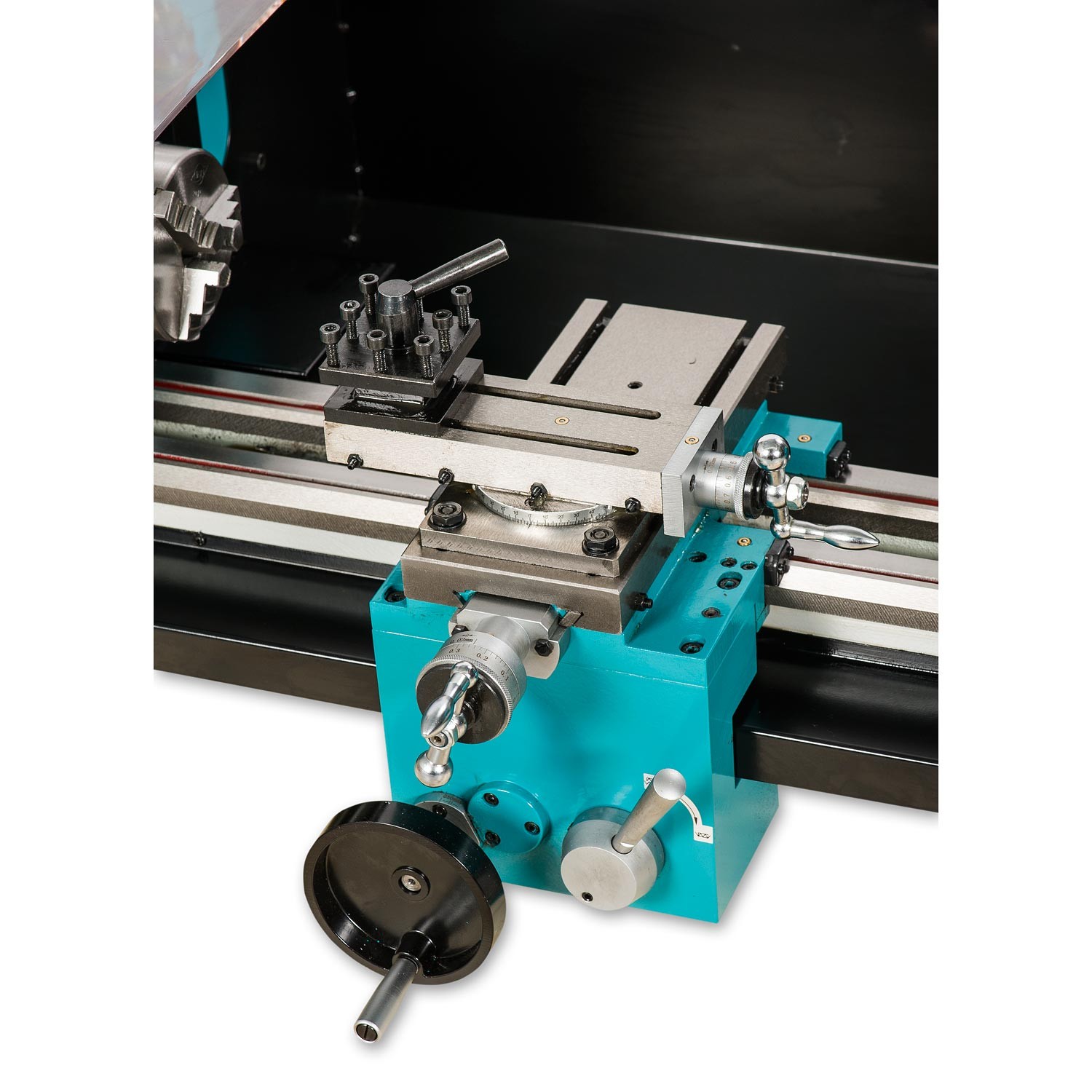

This is a well made model engineer's lathe, with a very rigid cast iron bed with ground slideways. The lathe has a 6-step belt pulley system to control the spindle speeds, coupled to a 550W induction motor. This system is extremely quiet running and reliable. The 109mm centre height and 410mm centre distance allows the turning of some quite decent sized components. Other features of note are the 4-way indexing tool post with 12mm tool capacity, transverse adjustment on the tailstock for fine taper turning, integral rear splash guard. The metric thread pitches are 0.4, 0.5, 0.6, 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5 and 3mm. The thread pitches are selected using change wheels. The carriage is powered with a choice of feed rates, allowing a very fine even finish to the work. The lathe is supplied with a 100mm 3-jaw chuck with a 20mm through bore. There is a 100mm 4-jaw independent chuck available as an accessory as well as an ER32 collet chuck, quick change tool post, fixed and travelling steadies, a 200mm diameter faceplate and clamp kit. This lathe is suitable for bench mounting, perhaps with the optional drip tray, or it can be mounted onto the purpose-built floor stand that is supplied with a drip tray. This lathe is ideal for the keen model engineer, or small engineering projects and will prove to be an easy-to-use, accurate and reliable machine.
Specification
Centre Height
105mm
Cross Slide Travel
100mm
Distance Between Centres
410mm
Model
Axminster Model Engineer Series C4A Bench Lathe
Nett Weight
90kg
Overall L x W x H
1,000 x 550 x 400mm
Power
550W (230V 1ph)
Rating
Model Engineer
Spindle Bore
20mm
Spindle Speed
100-2,000rpm, 6 steps
Thread Pitch Range
0.4-3.0mm Metric, 10-44tpi Imperial
Top Slide Travel
70mm
Headstock Taper
3MT
Tailstock Taper
2MT
