Medium capacity, high quality lathe suitable for workshop or school use
Electronically variable spindle speed range of 125-2,000rpm
1000W high torque, brushless motor gives near silent running
Metric and imperial thread cutting, simple change wheel setting
Integral splash guard, optional drip tray and floor stand
Full range of accessories available, tooling, steadies etc.
Converts to a multi-purpose machine with the milling attachment

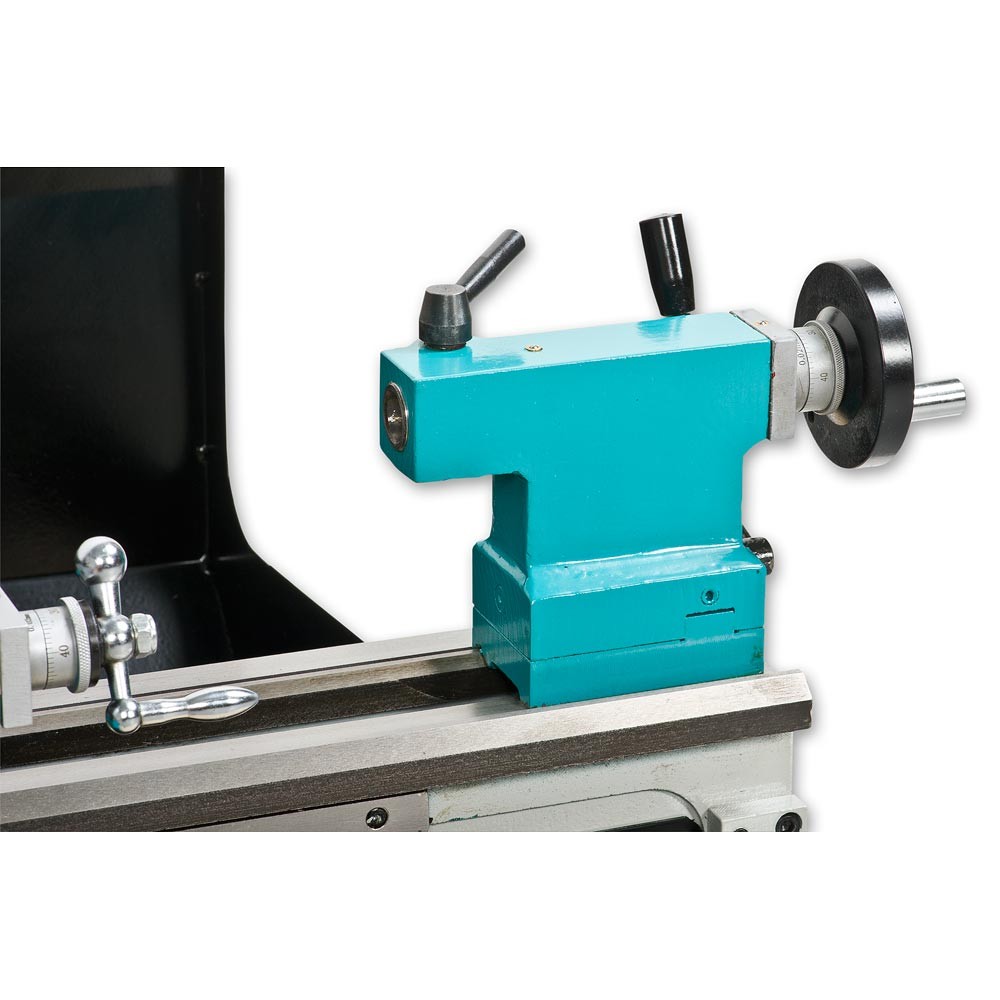

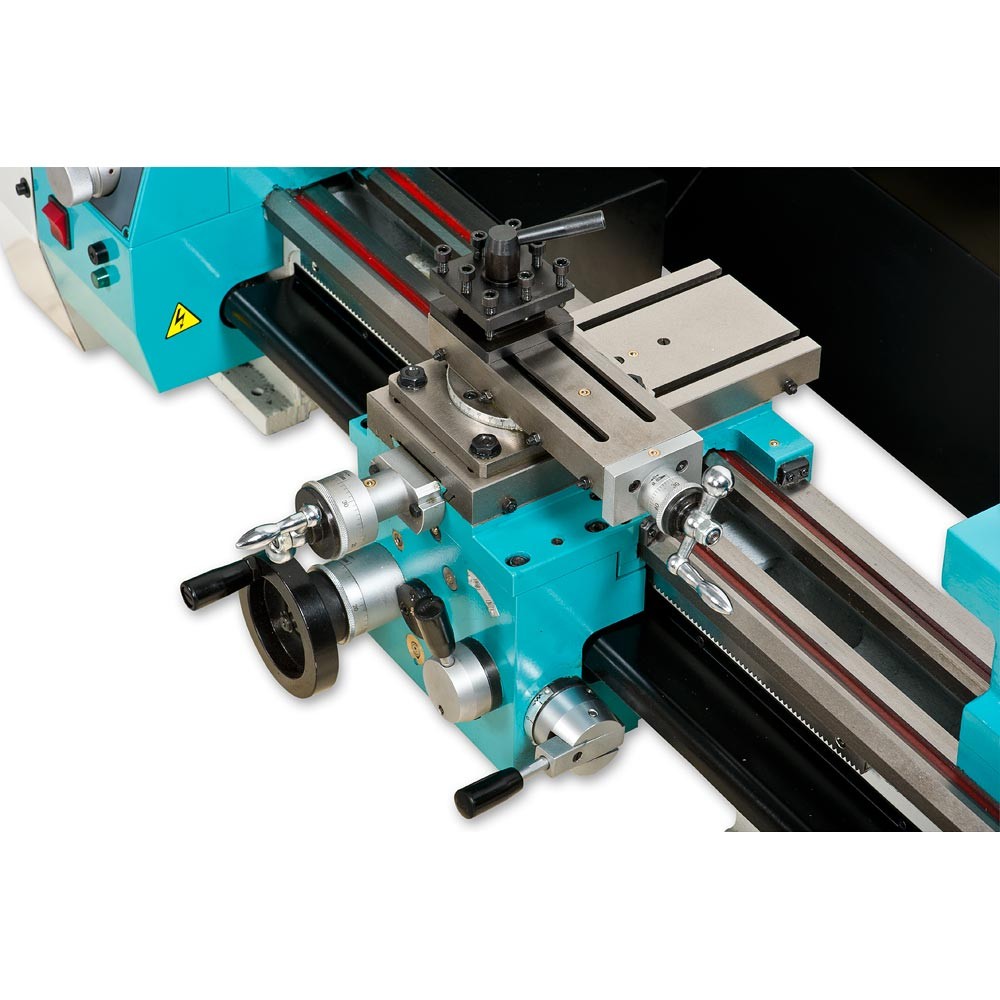

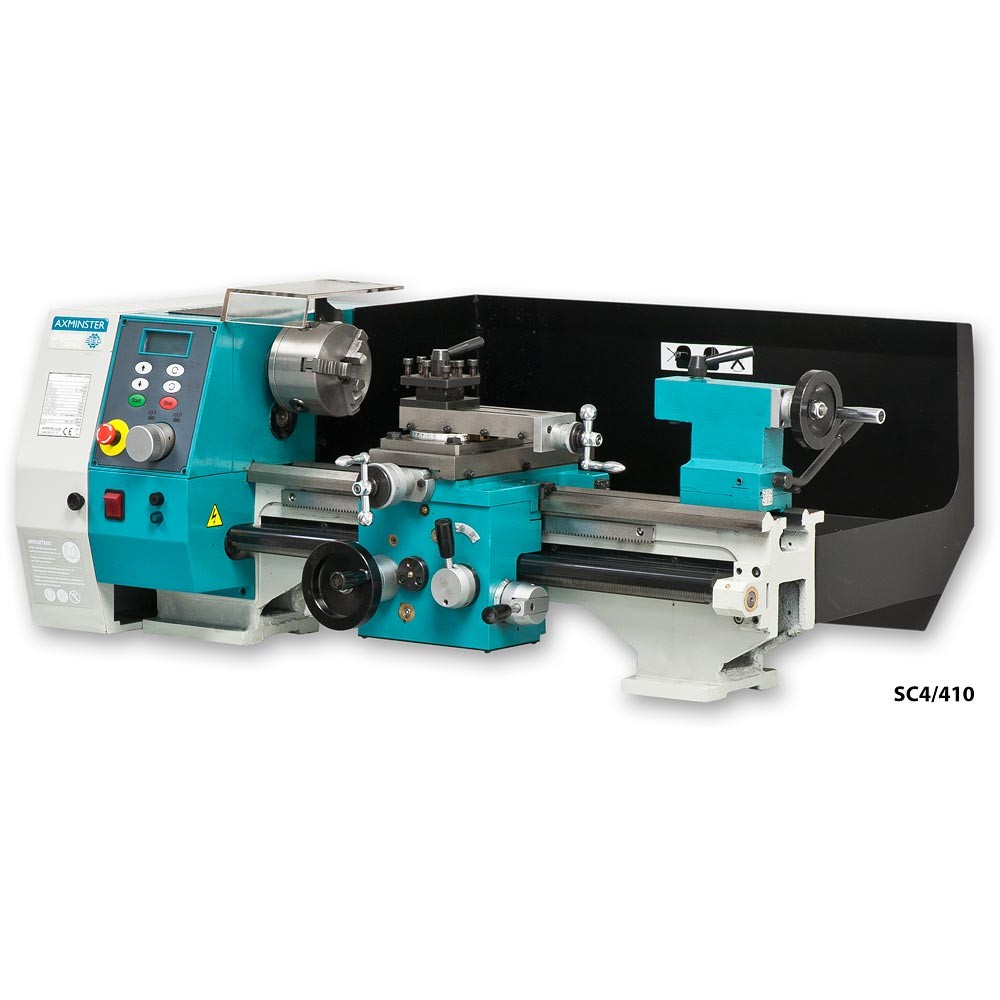

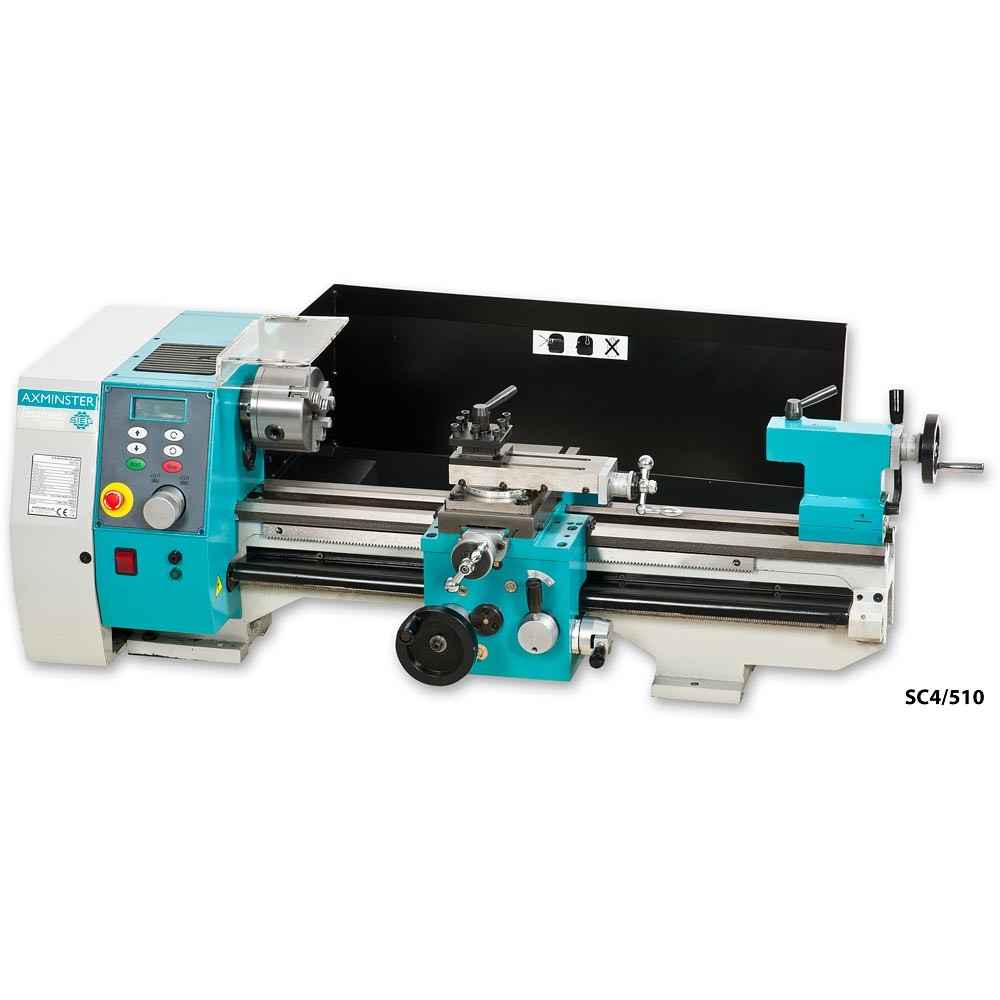

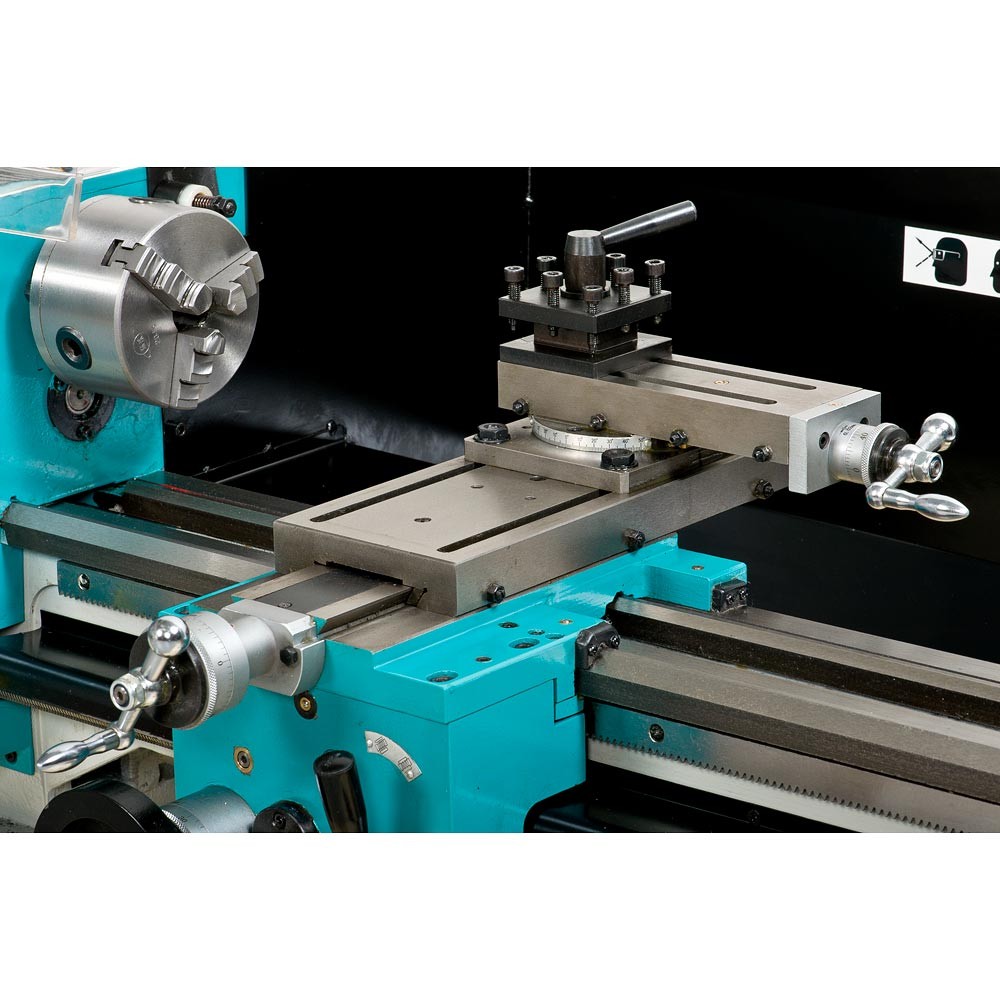

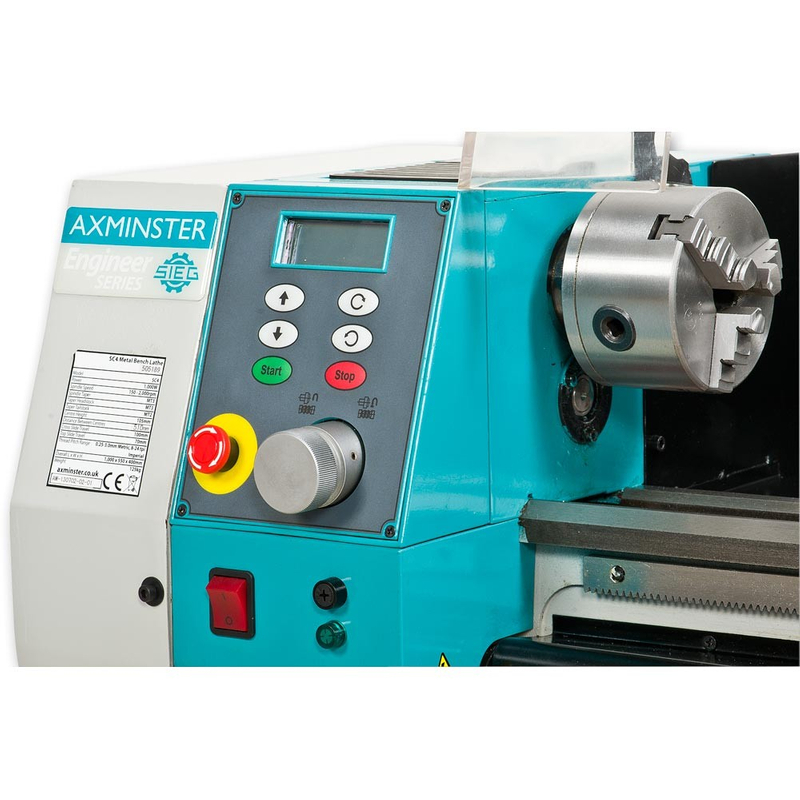

This compact lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer, small component manufacturer or in a teaching environment (used in our Skill Centre). A very rigid induction hardened cast iron bed with ground slideways gives a high level of precision. The lathe is available in two models, a 410 and 510mm between centre versions. Both with a 210mm swing over the bed. This model has a 1,000W brushless DC high torque motor giving near silent running. A standard feature is the full electronic speed control with digital read-out of spindle speed, accessed by a push button control panel. Other very useful features included are cross and longitudinal power feed, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-24 tpi or 0.25-3m. Also included, as standard, are a 4-way indexing tool post with 10mm tool shank capacity, transverse adjustment on the tailstock for taper turning and the rear splash guard. A 100mm 3-jaw chuck is supplied, the headstock spindle being through bored to 20mm diameter.There are many additional options available including a milling head to turn this machine into a very capable, small, all round machining centre. Suitable for bench mounting with perhaps the addition of the optional drip tray, or for independently mounting on the ruggedly built floor stand. A superb small machine.
Specification
Centre Height
105mm
Cross Slide Travel
100mm
Distance Between Centres
410mm (505111) 510mm (505189)
Leadscrew Pitch
2mm
Max Diameter over Bed
210mm
Model
SC4
Nett Weight
125kg
Overall L x W x H
1,000 x 550 x 400mm
Power
1,000W (230V)
Spindle Bore
20mm
Spindle Speed
100 - 2,000rpm
Thread Pitch Range
0.25-3.0mm Metric, 8-24 tpi Imperial
Top Slide Travel
70mm
Headstock Taper
3MT
Tailstock Taper
2MT
