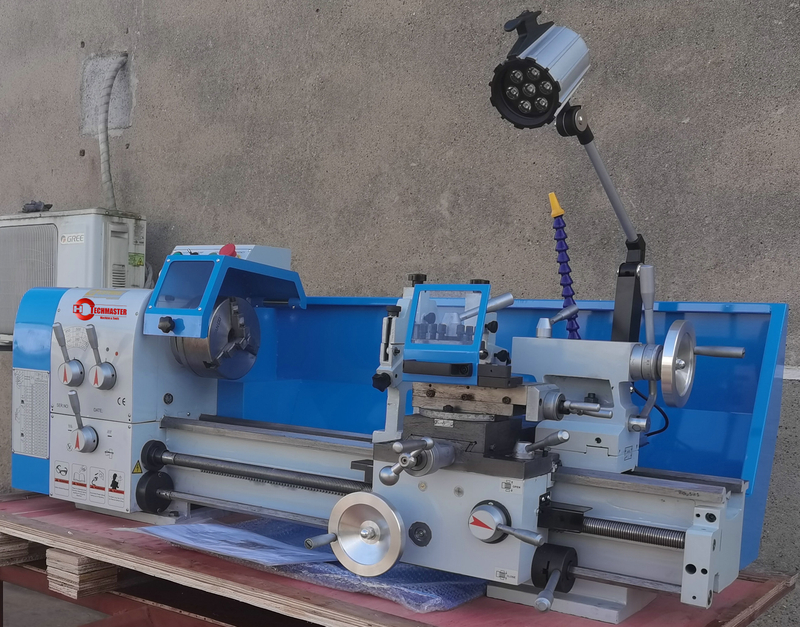

BL330ER 600MM / BL330ER-L 750MM
| Quantity: | |
|---|---|
Product Features
Gear driven headstock and quick change spindle speed
MT5 spindle taper with diameter 38mm spindle bore
Two ‘V’ guaidway are hardened and ground
Sildeway are sticked with soft wear strip for lightweight and sensitive operating
| Model | BL330ER/BL330ER-1 |
| Swing over bed | 330mm |
| Swing over carriage | 160mm |
| Distance between centers | 750mm |
| Bed width | 160mm |
| Spindle bore | 38mm |
| Spindle taper | MT5 |
| Steps of spindle speed | 12 Steps |
| Spindle speed | 60-1650rpm |
| Tool post travel | 100mm |
| Cross travel | 160mm |
| Longitudinal travel | 700mm |
| Range of longitudinal feeds | 0.08 – 1.5mm/r |
| Range of cross feeds | 0.045 – 0.6mm/r |
| Metric threads | 15 / 0.5–4 mm |
| Inch threads | 23 / 9 – 40 TPI |
| Max. travel of tailstock sleeve | 85mm |
| Taper of tailstock sleeve | MT3 |
| Motor power | 1100W |
| Net weight | 320kg |
| Packing size | 1320 /1570x760x700mm |
Standard Accessories
| Items Description | Quantity | |
| Dia. 160mm self-centering 3 jaw chuck | Ø160三爪自定心卡盘 | 1 set |
| Dead center MT4 & MT2 | 莫氏#3；莫氏#2顶尖 | 1 set each |
| Metal change gear | 交换挂轮 | 11 sets |
| Allen wrenches (4,5,6,8) | 六角扳手 | 1 set each |
| Bolt & washer | 螺栓及垫片 | 4 sets each |
| Full size splash guard | 挡屑板 | 1 sets |
