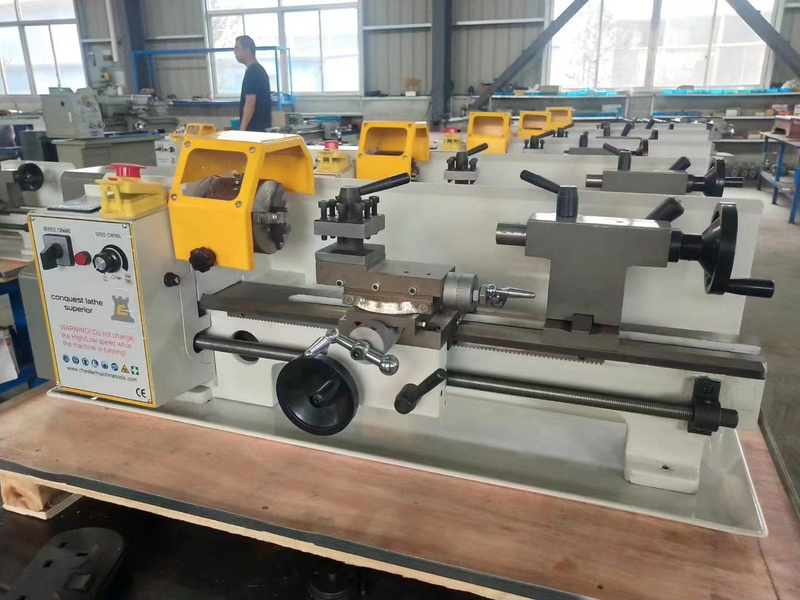

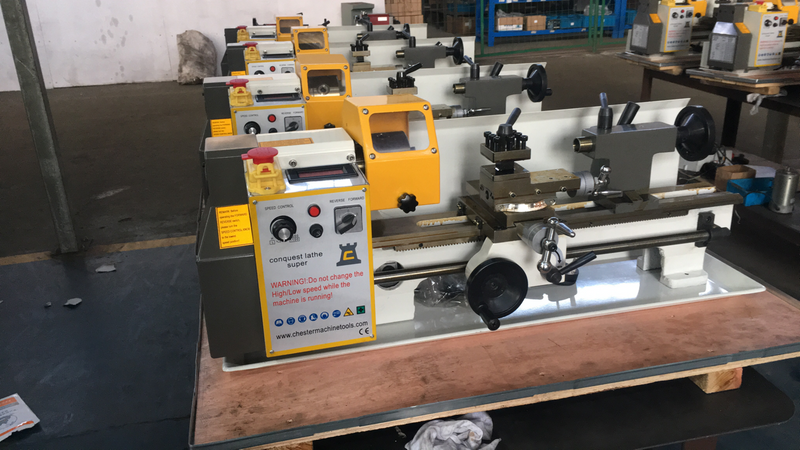

CJ0618B -350MM BRUSHLESS MOTOR
| Quantity: | |
|---|---|
| Centre Height | 90mm |
| Swing over Bed | 180mm |
| Swing over Crosslide | 100mm |
| Distance between Centres | 350mm |
| Width of V Bed | 83mm |
| Longitudinal Travel | 35mm |
| Spindle Bore | 20mm |
| Spindle Taper | MT3 |
| Spindle Speeds | Variable |
| Speed Range (High) | 50-2500rpm |
| Speed Range (Low) | 50-1100rpm |
| Metric Threads | 0.5-2.5mm |
| Imperial Threads | 12-52TPI |
| Crosslide Travel | 65mm |
| Tailstock Quill Travel | 40mm |
| Compound Slide Travel | 70mm |
| Motor | 400/550w |
| Power Supply | 240v |
| Net Weight | 40/45kgs |
| Dimensions | 720x300x290mm |
Offset Tailstock
Cast Iron Construction
Metric or Imperial Thread Cutting
Variable Spindle Speed
Brushless Motor
3-Jaw Chuck with internal and external jaws
4-way toolpost
MT2 Steel Centre
Set of Change Gears
Splash Guard
Oil Tray
Lathe Tools
Allen Keys
Spanner
Variable Speed System
Dial Thread Indicator
Manual and Parts List
