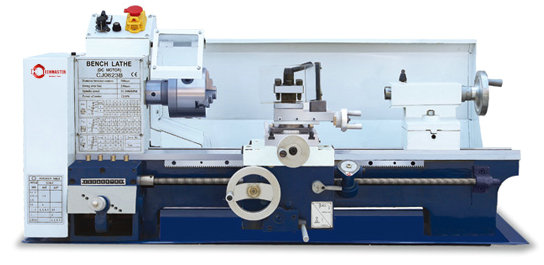

1,This precision mini lathe is designed to perform various types of processing jobs.
Counterface turning , drilling ,boring, threading and cutting jobs on materials made up of round bar and bar materials can be used in areas such as mini precision parts processing, sample processing and modeling works.
2,This machine is DC motor drived.
3,The spindle speed:50 to 3000RPM.
4,The feed speed can be adjusted according to the requirement of different work pieces.
| Model | CJ0623B |
| Distance between centers | 500/750mm |
| Swing over bed | 230mm |
| Swing over bed | 135mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Chuck diameter | 100mm |
| Spindle bore | 20mm |
| Cross slide travel | 125mm |
| Tool slide travel | 48mm |
| Range of metric threads | 0.5-3mm |
| Range of imperial threads | 8-56TPI |
| Spindle accuracy | 0.01mm |
| Spindle speed | 50-3000RPM |
| Power of motor | 1200W |
| Net weight /Gross weight | 105Kg/135Kg 120Kg/150Kg |
| Packing size | 1055/1300×565×575mm |
