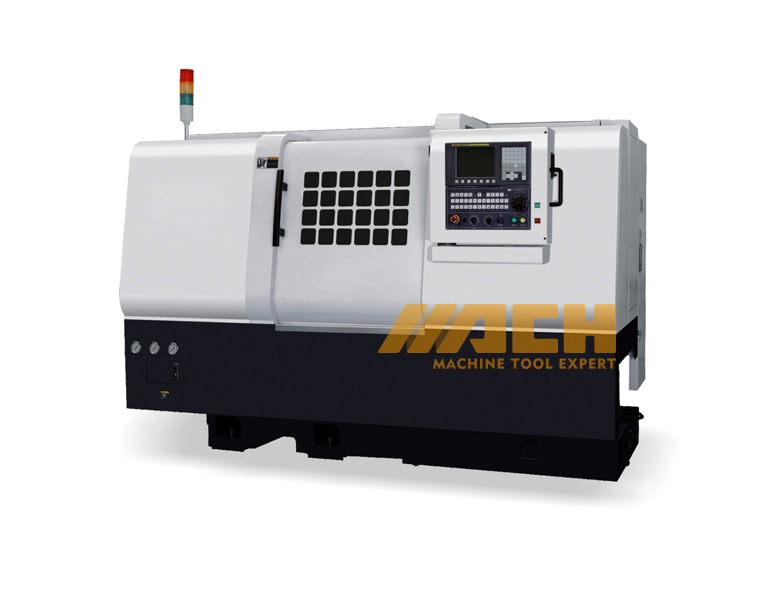

Slant Bed Precision CNC Lathe Model:7540A
| Quantity: | |
|---|---|
2 High Efficiency Machining
3 Machine Bed Construction
4 Accurate Feed
5 Hydraulic Turret
6 Hydraulic Tailstock
7 Extra Heavy Cutting
8 Control System
| Model | 7540A | |
| capacity | Max.swing dia.over bed | Φ 430mm |
| wing over cross slide | Φ 300mm | |
| Max.turning dia | Φ 300mm | |
| Max.turning length | 550mm | |
| Spindle | Spindle speed | XKC7540/7540C：50～4500rpm |
| Spindle bore dia | Φ 57mm | |
| Through hole dia | Φ 45mm （chuck）/42mm(collet) | |
| Main motor | XKC7540/7540C：servo11/15KW | |
| Turret | Number of stations | 12 |
| Tool size | 20X20/Φ32 | |
| Tailstock | Tailstock quill dia | Φ 90mm |
| Center taper | MT4 | |
| Tailstock quill? travel | 90mm | |
| Axes | Travel X | 220mm |
| Travel Z | ?? 600mm | |
| Rapid feed（X/Z） | 24m/min | |
| Feed motors（X/Z） | X ：1.8KW??? ?Z：2.5KW | |
| Others | Chuck | 8″ |
| Rotating hydraulic cylinder | 6″ | |
| Required electric power(KVA) | 15KVA | |
| Floor space(L*W*H) | 2700X1650X1780 | |
| Mass | 3500Kg | |
| Control system | FANUC Oi-MATE TD | |
| Controlled axes | Simultaneously 2 axes,1 axis manual mode | |
| Input sysytem | MDI input,absolute/incremental programming | |
| Program storage | 640M（512KB） | |
| Interpolation function | Linear Taper Circular Threading | |
| Min.input | 0.0001mm | |
| Min.command | X:0.0005mm Z:0.001mm | |
| Feed rate | Feed per min | 1-10000mm/min |
| Feed per rev | 0.0001-500mm/rev | |
| Tool offset | Geometry | ±999.9999 |
| Wear | ±9.9999 | |
| Tool offset pairs | 64pairs | |
| Number of register able program | 400 | |
| Manual handle feed | 0.5/0.1/0.01/0.001 | |
| Auxiliary function | M、S、T | |
| Dwell time | 0－99999.999sec | |
| Feed rate override | 0－150％ | |
| Rapid traverse override | F0、25、50、100 | |
| Input/output interface | RS232C | |
| Language | Chinese/English | |
| CS contouring control | Cs0.001 | |
2 High Efficiency Machining
3 Machine Bed Construction
4 Accurate Feed
5 Hydraulic Turret
6 Hydraulic Tailstock
7 Extra Heavy Cutting
8 Control System
| Model | 7540A | |
| capacity | Max.swing dia.over bed | Φ 430mm |
| wing over cross slide | Φ 300mm | |
| Max.turning dia | Φ 300mm | |
| Max.turning length | 550mm | |
| Spindle | Spindle speed | XKC7540/7540C：50～4500rpm |
| Spindle bore dia | Φ 57mm | |
| Through hole dia | Φ 45mm （chuck）/42mm(collet) | |
| Main motor | XKC7540/7540C：servo11/15KW | |
| Turret | Number of stations | 12 |
| Tool size | 20X20/Φ32 | |
| Tailstock | Tailstock quill dia | Φ 90mm |
| Center taper | MT4 | |
| Tailstock quill? travel | 90mm | |
| Axes | Travel X | 220mm |
| Travel Z | ?? 600mm | |
| Rapid feed（X/Z） | 24m/min | |
| Feed motors（X/Z） | X ：1.8KW??? ?Z：2.5KW | |
| Others | Chuck | 8″ |
| Rotating hydraulic cylinder | 6″ | |
| Required electric power(KVA) | 15KVA | |
| Floor space(L*W*H) | 2700X1650X1780 | |
| Mass | 3500Kg | |
| Control system | FANUC Oi-MATE TD | |
| Controlled axes | Simultaneously 2 axes,1 axis manual mode | |
| Input sysytem | MDI input,absolute/incremental programming | |
| Program storage | 640M（512KB） | |
| Interpolation function | Linear Taper Circular Threading | |
| Min.input | 0.0001mm | |
| Min.command | X:0.0005mm Z:0.001mm | |
| Feed rate | Feed per min | 1-10000mm/min |
| Feed per rev | 0.0001-500mm/rev | |
| Tool offset | Geometry | ±999.9999 |
| Wear | ±9.9999 | |
| Tool offset pairs | 64pairs | |
| Number of register able program | 400 | |
| Manual handle feed | 0.5/0.1/0.01/0.001 | |
| Auxiliary function | M、S、T | |
| Dwell time | 0－99999.999sec | |
| Feed rate override | 0－150％ | |
| Rapid traverse override | F0、25、50、100 | |
| Input/output interface | RS232C | |
| Language | Chinese/English | |
| CS contouring control | Cs0.001 | |
