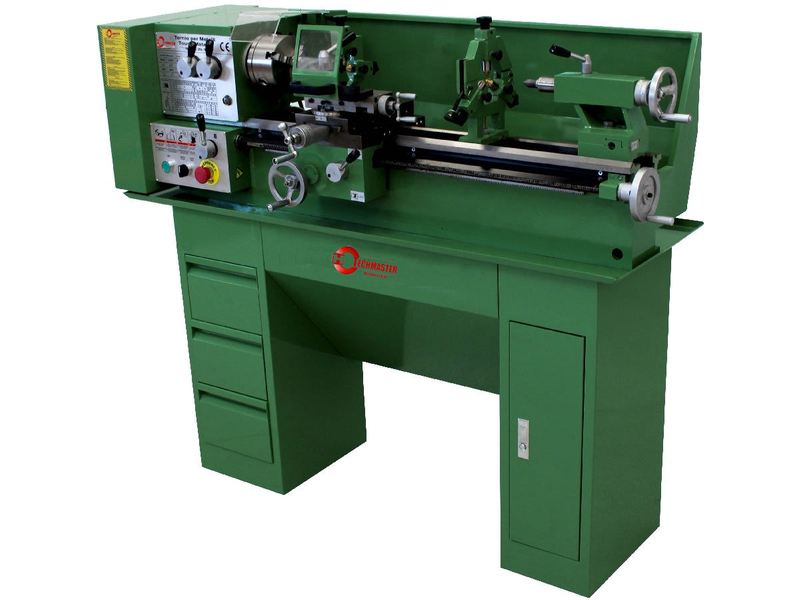

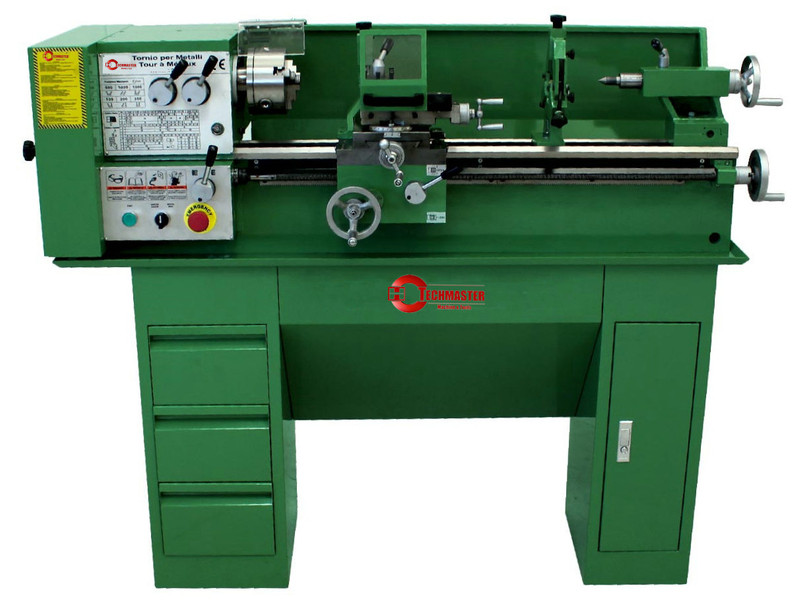

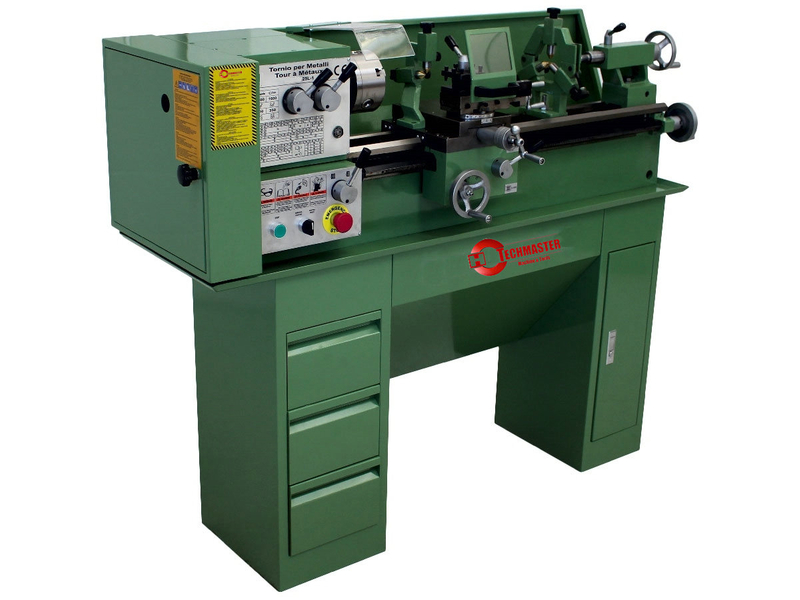

Technical data | |
| DIMENSION LATHE | |
| Dimensions with stand | 1450(L) x 430(W) x 1200(H) mm |
| Dimensions without stand | 1450(L) x 400(W) x 400(H) mm |
| Net weight | 155 Kg |
| METAL LATHE | |
| Distance between center | 700 mm |
| Center height | 125 mm |
| Max swing over the bed | 250 mm |
| Hole through spindle | 26 mm |
| Chuck dia. | 125 mm |
| Type chuck | 3 jaw autocentering |
| Spindle bore taper | MT4 |
| Tail stock taper | MT2 |
| Base size of the quick change tool post | 180 x 70 mm |
| Max tool diameter | 10 mm |
| Inch threads | 8 to 56 TPI |
| Metric threads | 0,05 mm to 3,5 mm |
| Max lenght cutting | 500 mm |
| Longitudinal travel | 70 mm |
| Spindle speed | 115 to 1620 rpm |
| Cross travel | 115 mm |
| Carriage tilt | 45° |
| MOTOR | |
| Powerfull | 750 W - 50 Hz |
| Voltage | 1 Phase (220 V) |
