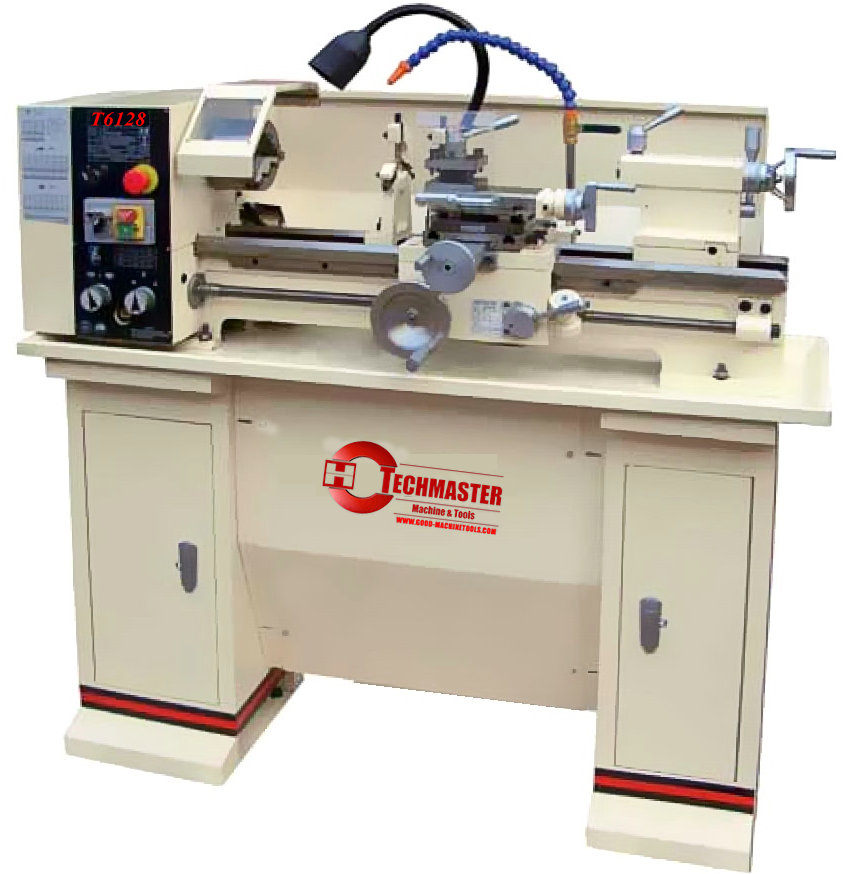

| Model | T6125TOP | T6128TOP |
| Max. swing over bed | Φ250mm | Φ250mm |
| Distance between centers | 550mm | 750mm |
| Spindle bore | 26mm | 26mm |
| Taper of Spindle bore | MT4 | MT4 |
| Range of Spindle speeds | 125-2000rpm | 125-2000rpm |
| Taper of tailstock quill | MT2 | MT2 |
| Metric threads can be cut | 0.2-4mm | 0.2-4mm |
| Inch threads can be cut | 8-56TPI | 8-56TPI |
| Motor power | 750W | 850W |
| NW/GW | 130/155Kg | 150/180Kg |
| Package size | 1200X560X580mm | 1400X560X580mm |
| Model | T6125TOP | T6128TOP |
| Max. swing over bed | Φ250mm | Φ250mm |
| Distance between centers | 550mm | 750mm |
| Spindle bore | 26mm | 26mm |
| Taper of Spindle bore | MT4 | MT4 |
| Range of Spindle speeds | 125-2000rpm | 125-2000rpm |
| Taper of tailstock quill | MT2 | MT2 |
| Metric threads can be cut | 0.2-4mm | 0.2-4mm |
| Inch threads can be cut | 8-56TPI | 8-56TPI |
| Motor power | 750W | 850W |
| NW/GW | 130/155Kg | 150/180Kg |
| Package size | 1200X560X580mm | 1400X560X580mm |
