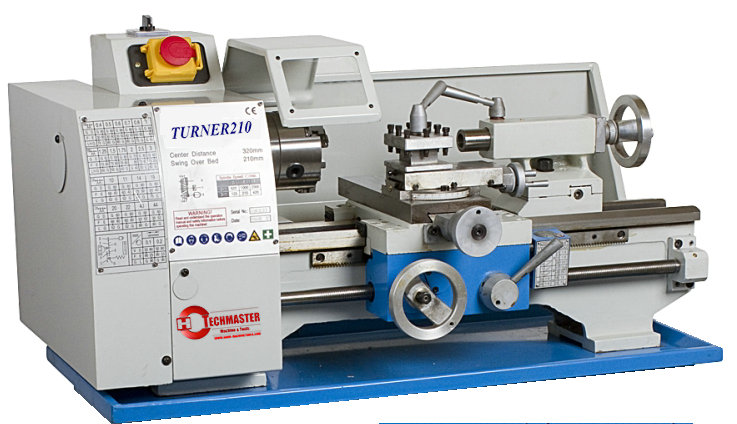

| MODEL | TURNER210V |
| Distance between centers | 400 mm |
| Swing over bed | 210 mm |
| Swing over cross slide | 110 mm |
| Width of bed | 100 mm |
| Taper of spindle bore | MT3 |
| Spindle bore | 21 mm |
| Range of spindle speeds (steps) | 50-2500 rpm |
| Range of longitudinal feeds | 0.08 - 0.16 mm |
| Range of inch threads | 10 - 44T.P.I |
| Range of metric threads | 0.5-3 mm |
| Top slide travel | 55 mm |
| Cross slide travel | 75 mm |
| Tailstock quill travel | 60 mm |
| Taper of tailstock quill | MT2 |
| Main motor | 450W |
| Packing size | 900x480x480 mm |
| Net weight | 75 kg |
